Exploded View With Torque Specifications

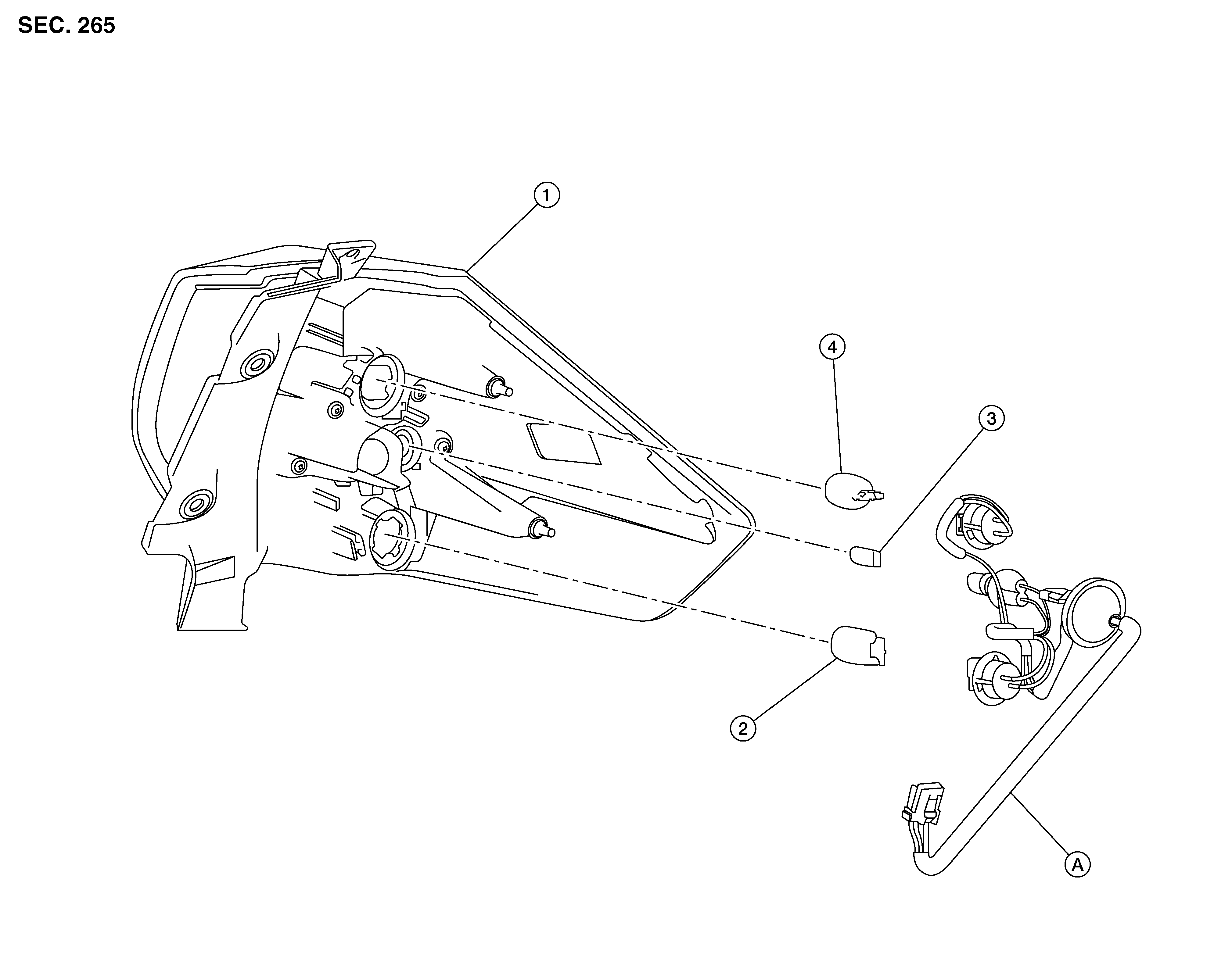

Fig 1: Exploded View Of Rear Combination Lamp
GNSAWLIA2341ZZ-341Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear combination lamp 2. Turn signal lamp bulb 3. Tail lamp bulb
4. Stop lamp bulb A. Rear combination lamp harness
