Exploded View With Torque Specifications

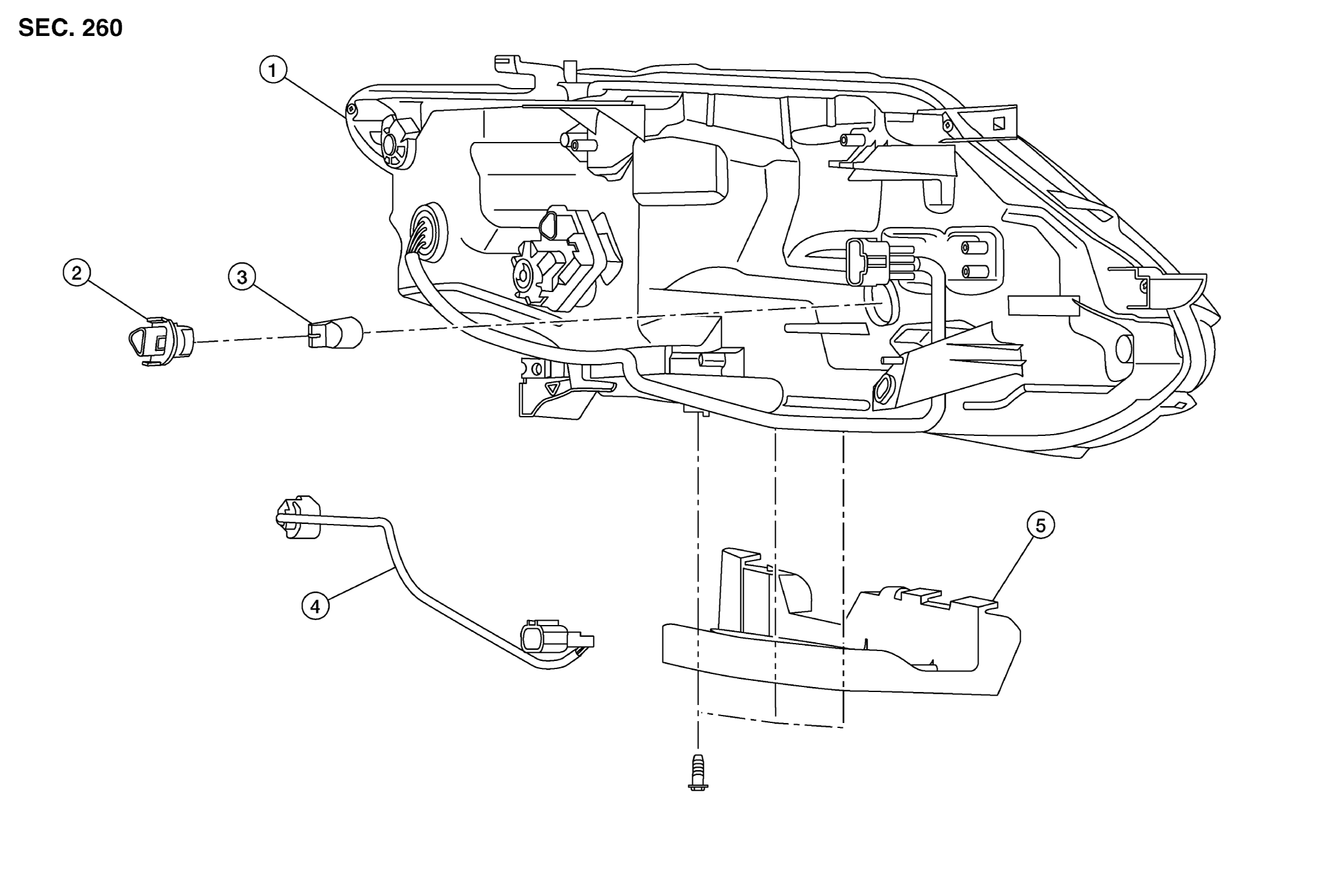

Fig 1: Front Combination Lamp
GNSALLIA1614ZZ-614Courtesy of NISSAN NORTH AMERICA, INC.
1. Front combination lamp 2. Turn signal lamp bulb socket 3. Turn signal lamp bulb
4. Front combination lamp harness 5. Front combination lamp mounting bracket
