Headlamp Aiming Adjustment
>>
Inspection
>>
Aiming Adjustment Screw
Aiming Adjustment Screw

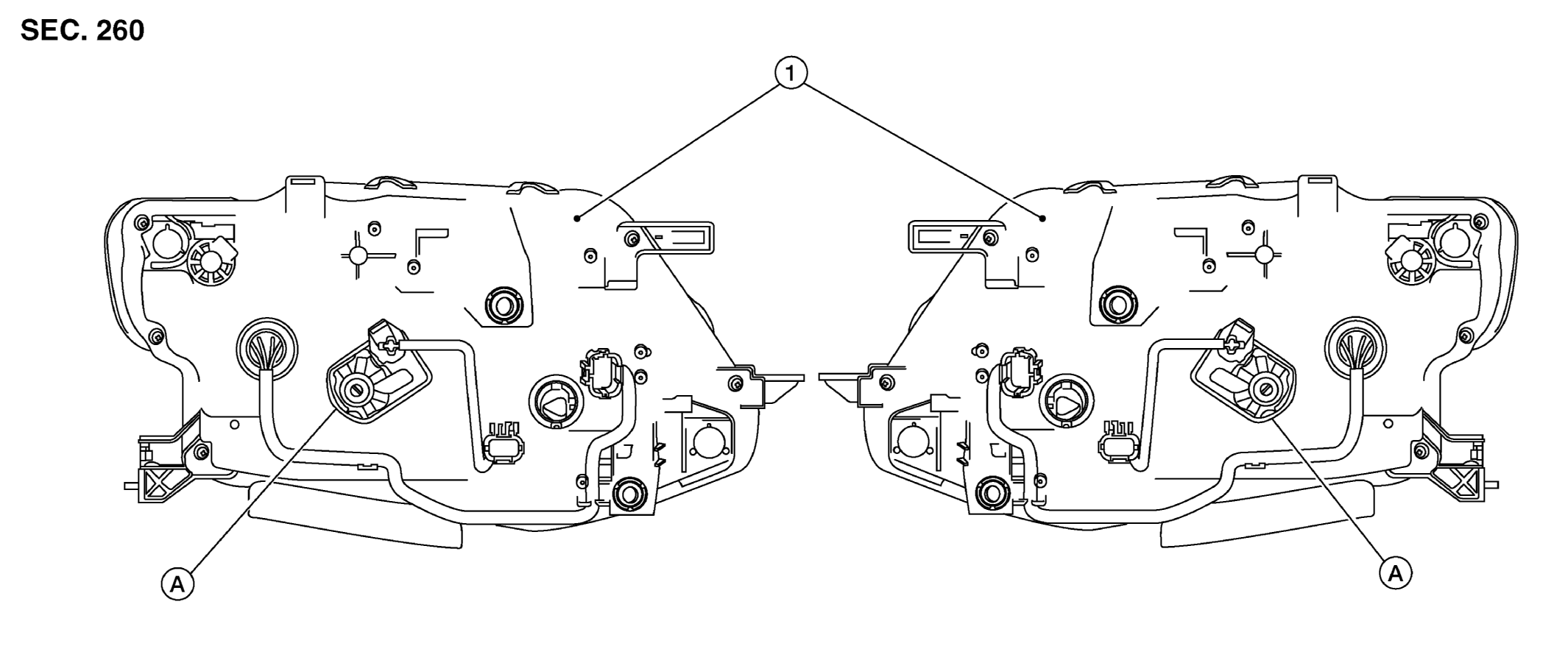

Fig 1: Aiming Adjustment Screw Location
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Front combination lamp (view from rear)
A.
Headlamp HI/LO (UP/DOWN) adjustment screw
