CVT Position: Adjustment

Move the shift selector to the "P" position.
CAUTION:
Rotate the wheels at least a quarter turn and be certain the transaxle is locked in the "P" position.
Remove nut (A) and set manual lever (B) to the "P" position.

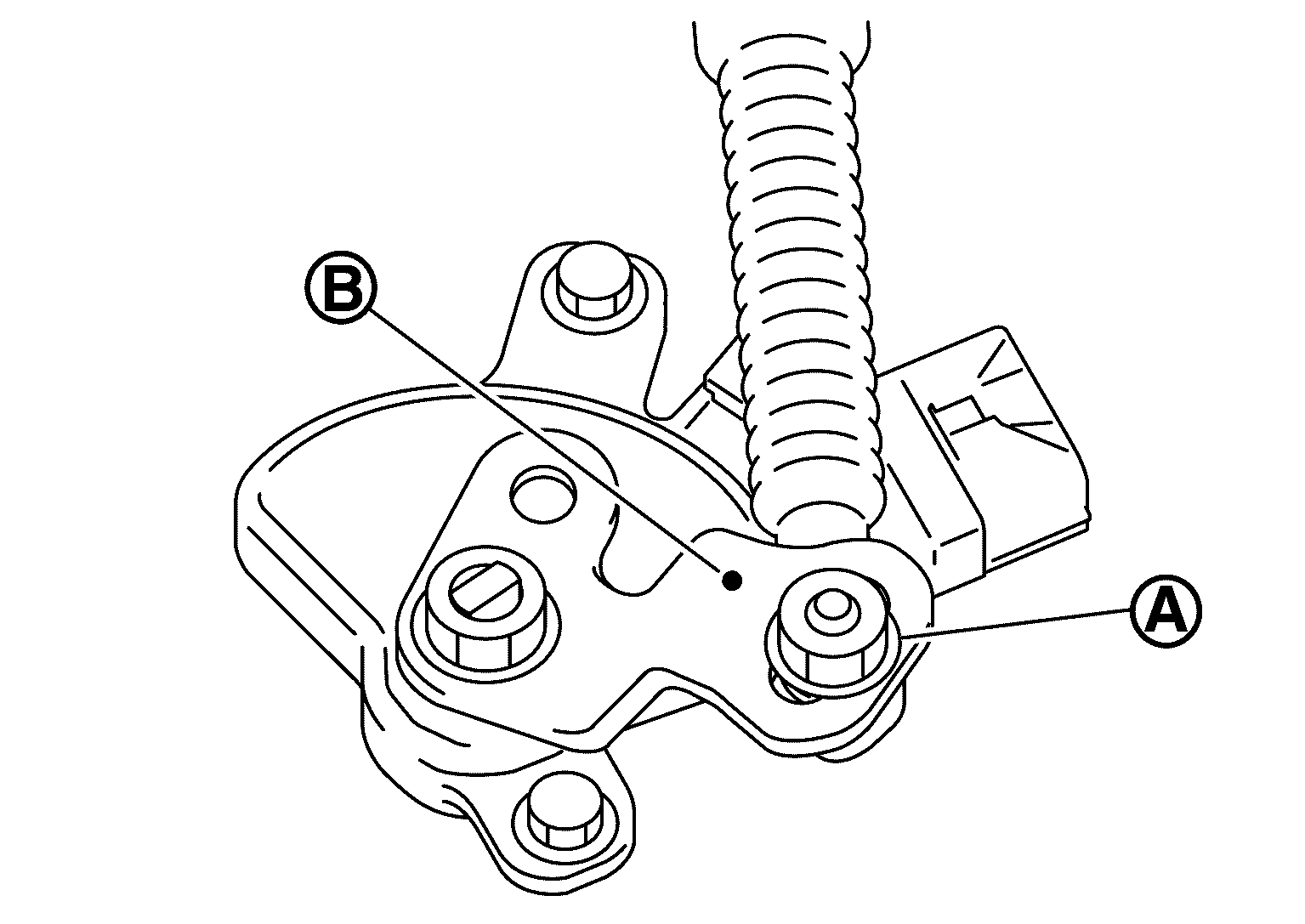

Fig 1: Identifying Manual Lever And Nut
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
Do not apply force to the manual lever.
Tighten nuts to the specified torque. Refer to EXPLODED VIEW .
CAUTION:
Do not move the manual lever when tightening.
