Exploded View With Torque Specifications

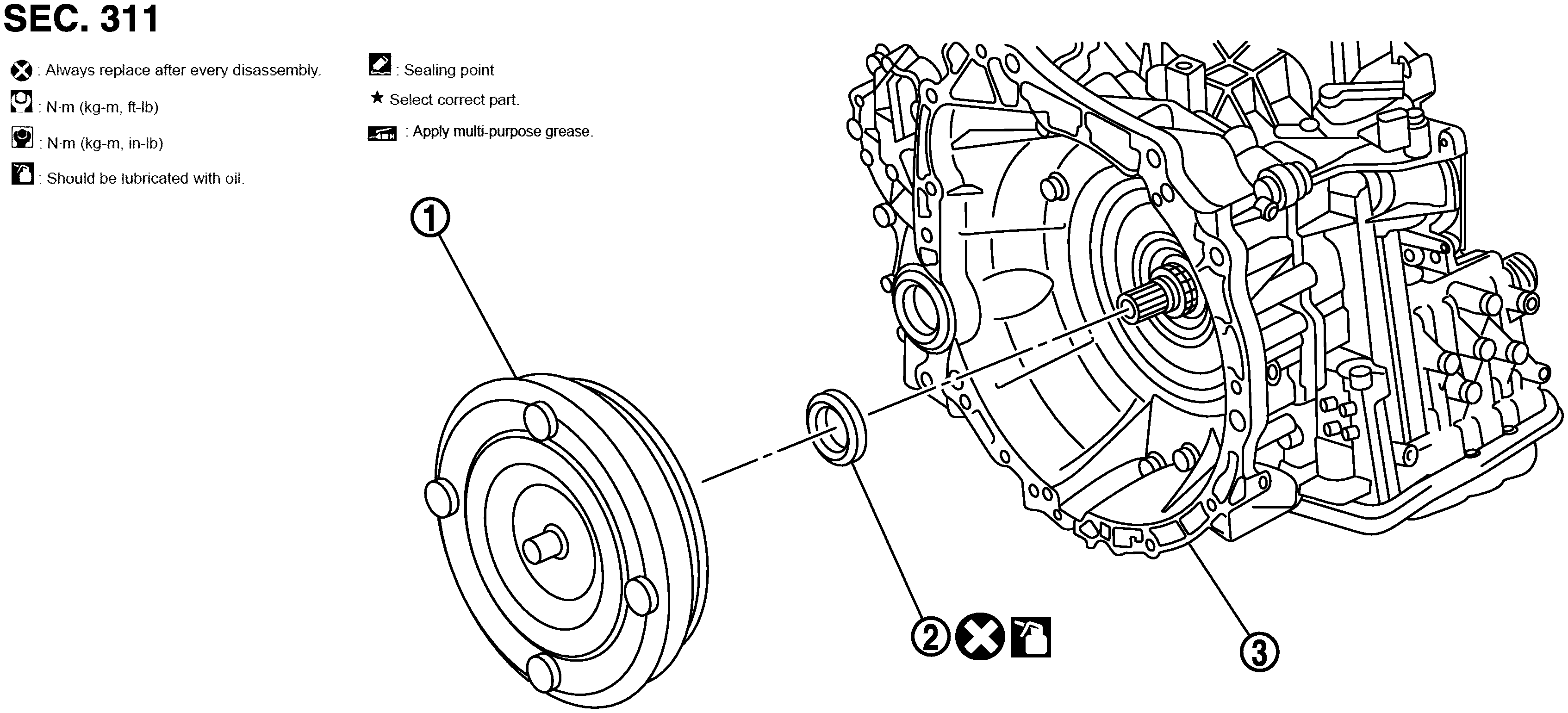

Fig 1: Exploded View Of Torque Converter And Converter Housing Oil Seal

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Torque converter	2.	Converter housing oil seal	3.	Transaxle assembly
	: Always replace after every disassembly.
	: Genuine NISSAN CVT Fluid NS-3
