Exploded View With Torque Specifications

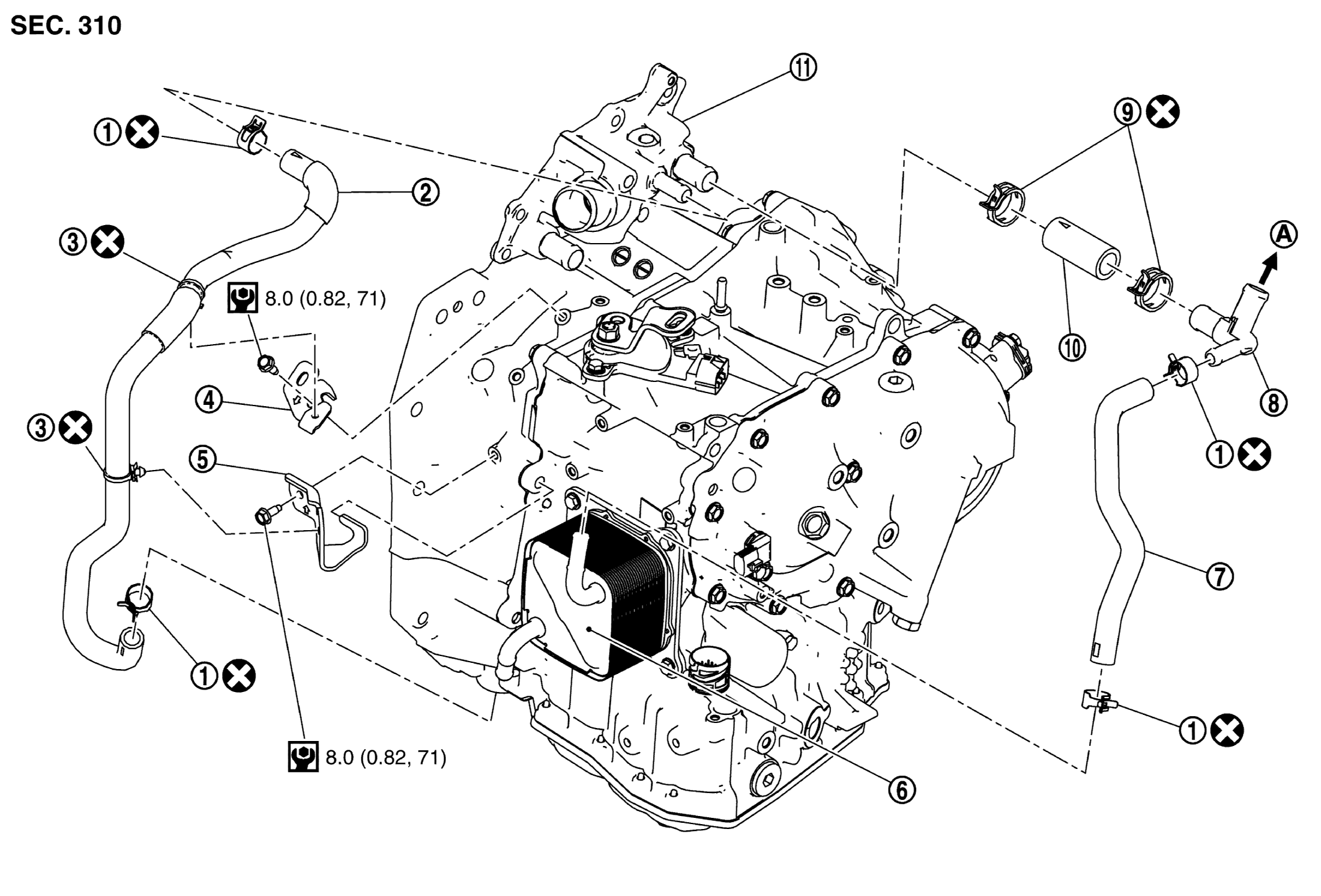

Fig 1: Exploded View Of Water Hose With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Hose clamp	2.	Water hose A	3.	Clip
4.	Bracket A	5.	Bracket B	6.	CVT oil warner
7.	Water hose B	8.	Water bypass pipe	9.	Hose clamp
10.	Water hose C	11.	Water outlet
A.	To heater core
	: Always replace after every disassembly.
	: N•m (kg-m, in-lb)
