Exploded View With Torque Specifications

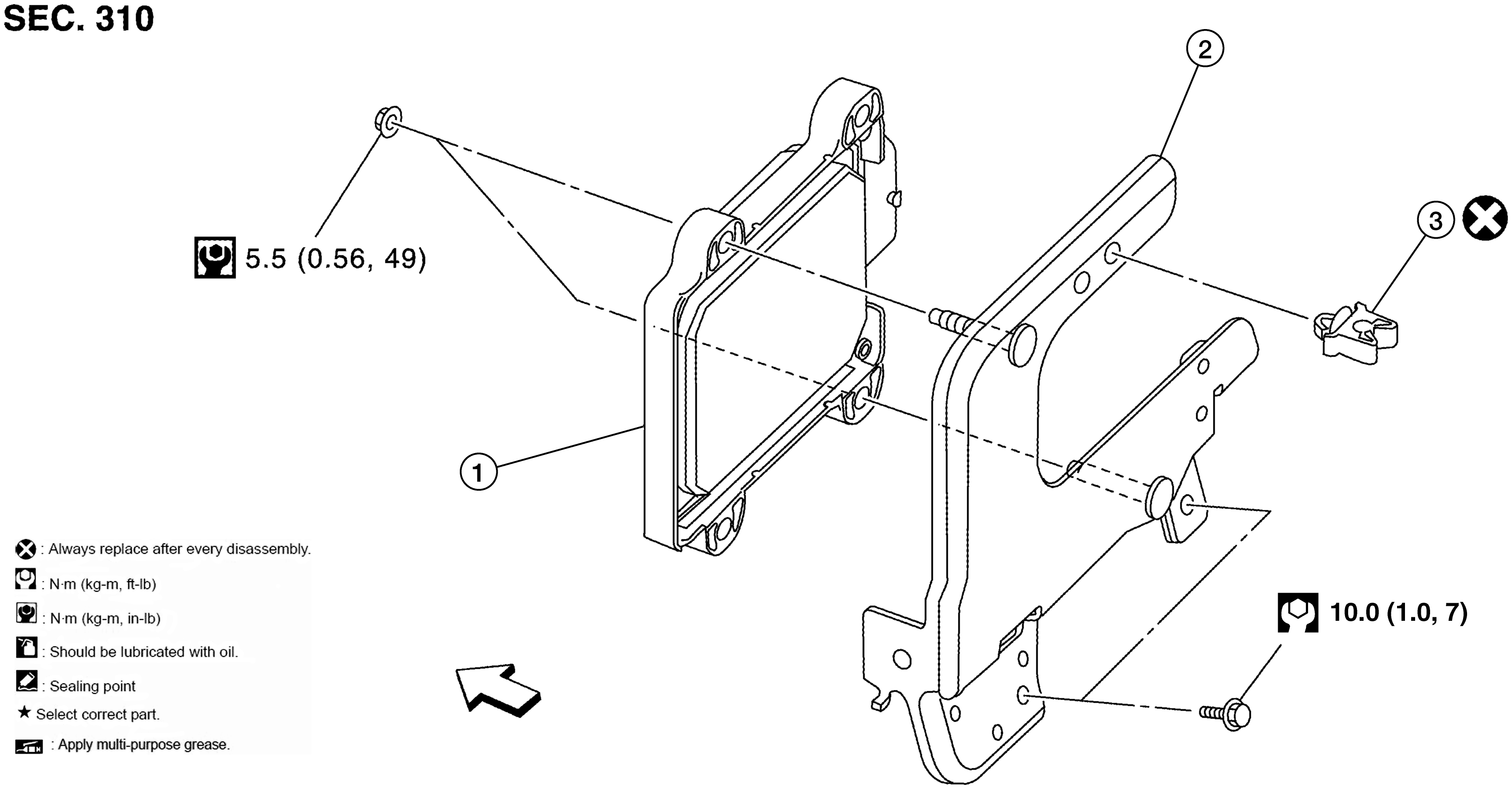

Fig 1: Exploded View Of TCM With Torque Specifications
GNSAWBIA1482ZZ-482Courtesy of NISSAN NORTH AMERICA, INC.
1. TCM 2. Bracket 3. Clip
ARROW Front
