Exploded View With Torque Specifications

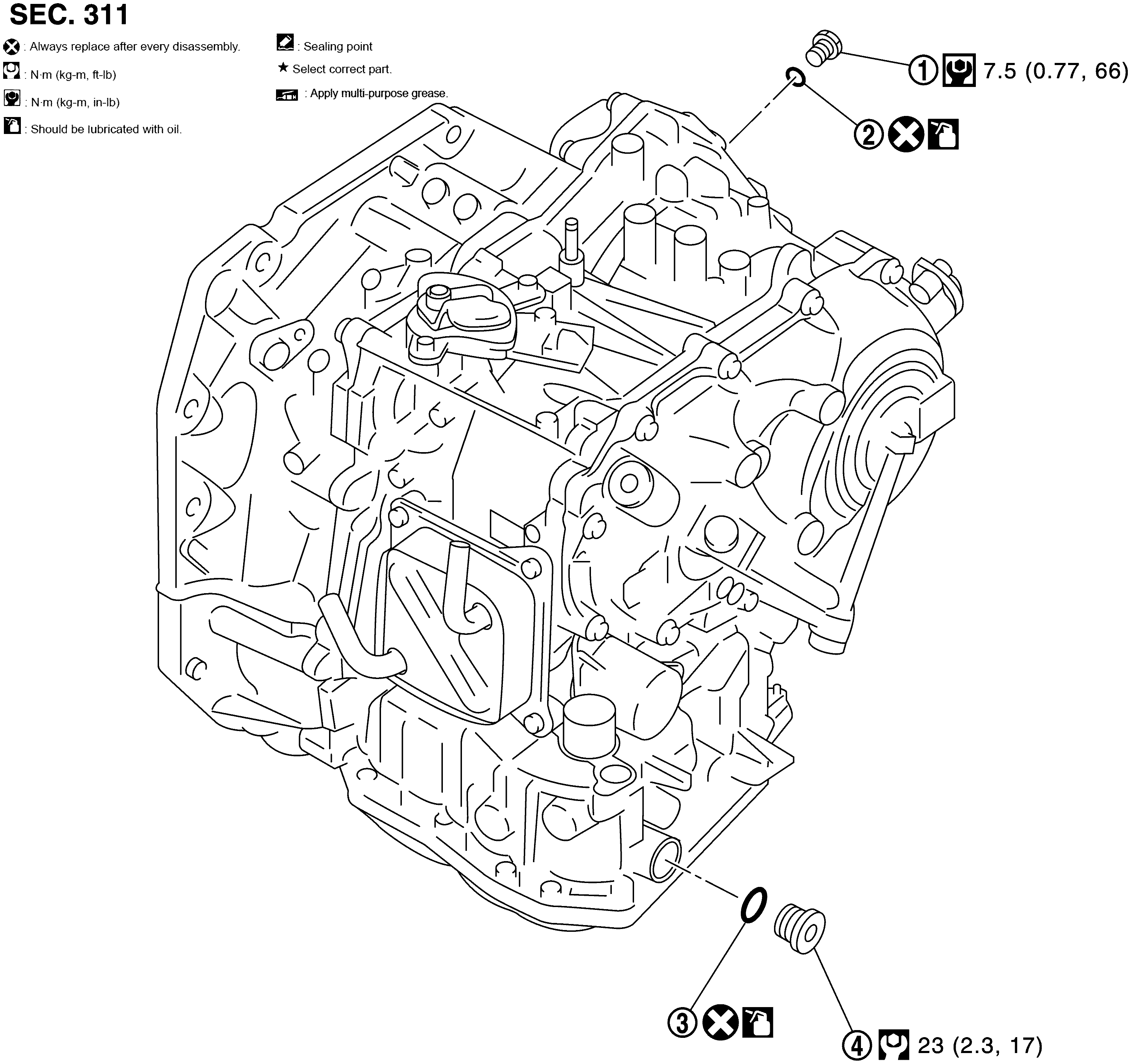

Fig 1: Exploded View Of Plug With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Plug	2.	O-ring	3.	O-ring
4.	Plug		Genuine NISSAN CVT Fluid NS-3
