Exploded View With Torque Specifications

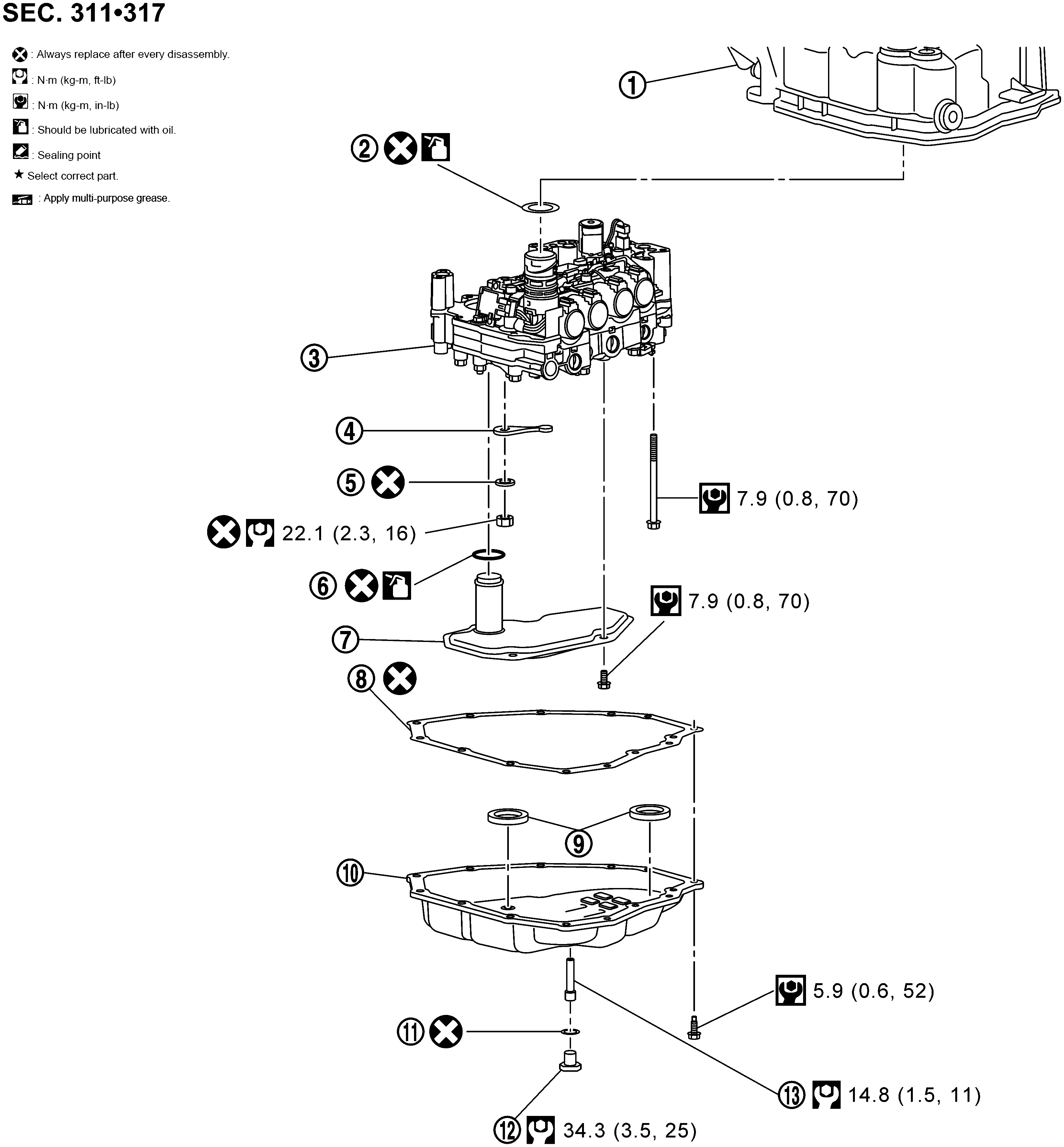

Fig 1: Exploded View Of Oil Pan, Control Valve With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Transaxle assembly	2.	O-ring	3.	Control valve
4.	Manual plate	5.	Washer	6.	O-ring
7.	Strainer	8.	Oil pan gasket	9.	Magnet
10.	Oil pan	11.	Drain plug gasket	12.	Drain plug
13.	Overflow tube
	: Apply petroleum jelly
	: Always replace after every disassembly.
	: Apply CVT fluid
	: N•m (kg-m, ft-lb)
	: N•m (kg-m, in-lb)
