Exploded View With Torque Specifications

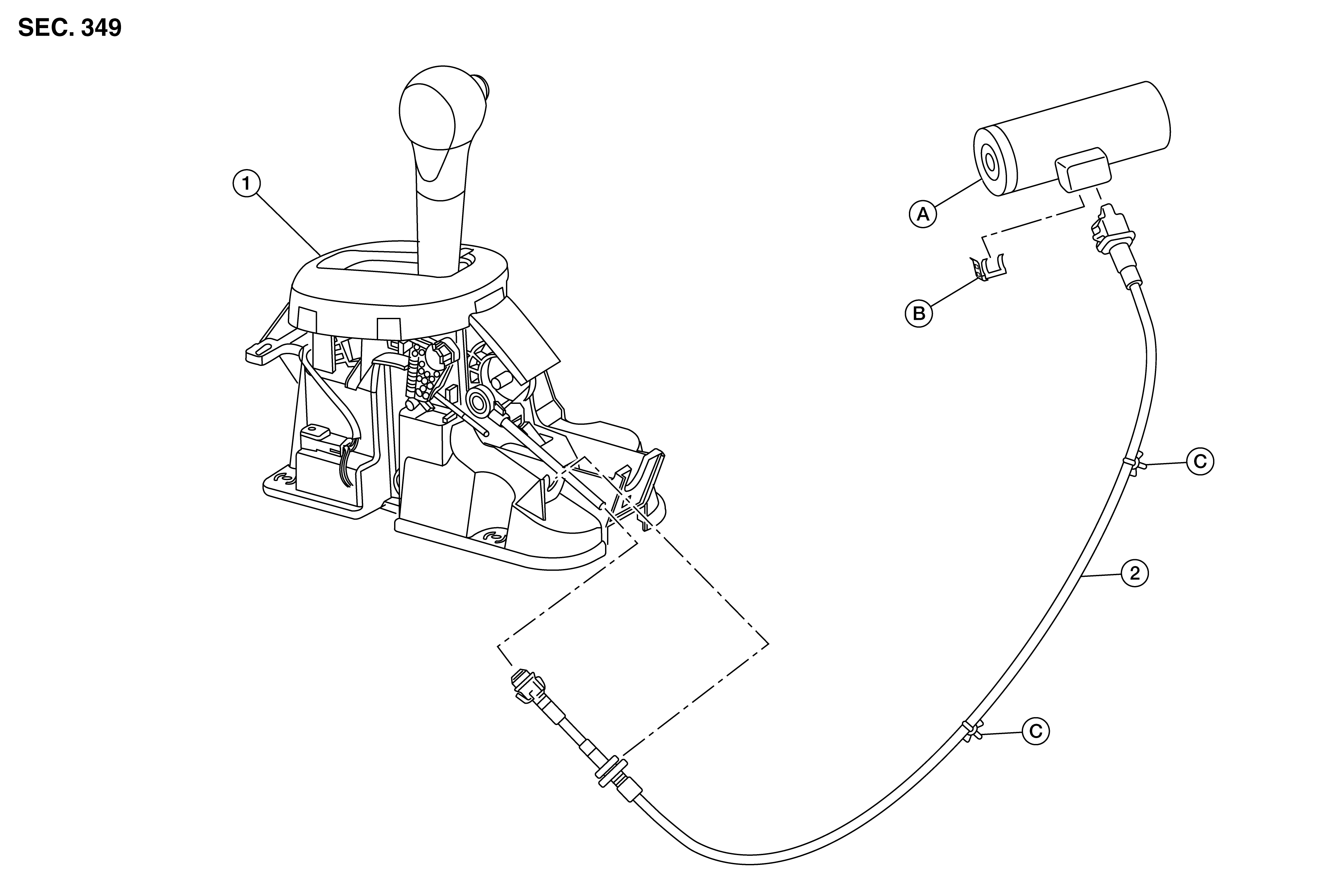

Fig 1: Exploded View Of Key Interlock Cable

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Shift selector assembly	2.	Key interlock cable	A:	Key cylinder
B:	Lock plate	C:	Clip
