Exploded View With Torque Specifications

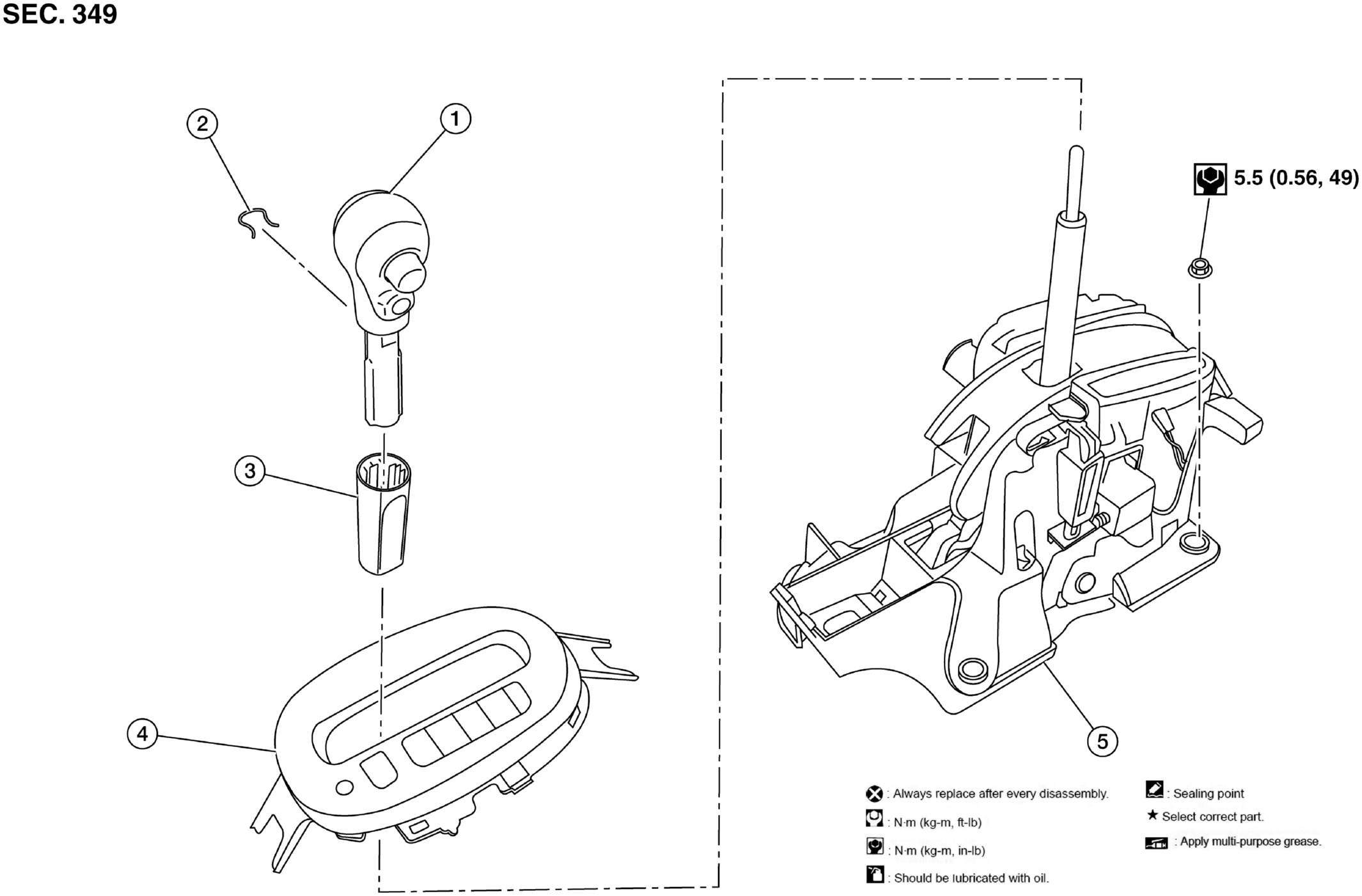

Fig 1: Exploded View Of CVT Shift Selector With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Shift selector handle	2.	Lock pin	3.	Shift selector handle cover
4.	Position indication panel	5.	Shift selector assembly
