Disassembly And Assembly: Disassembly

Slide the shift selector handle cover (1) down.

Fig 1: Identifying Shift Selector Handle, Cover And Lock Pin
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
Do not damage the shift selector handle cover.
Pull out the lock pin (2).
Pull the shift selector handle (3) and shift selector handle cover upward to remove.
Remove the position lamp.

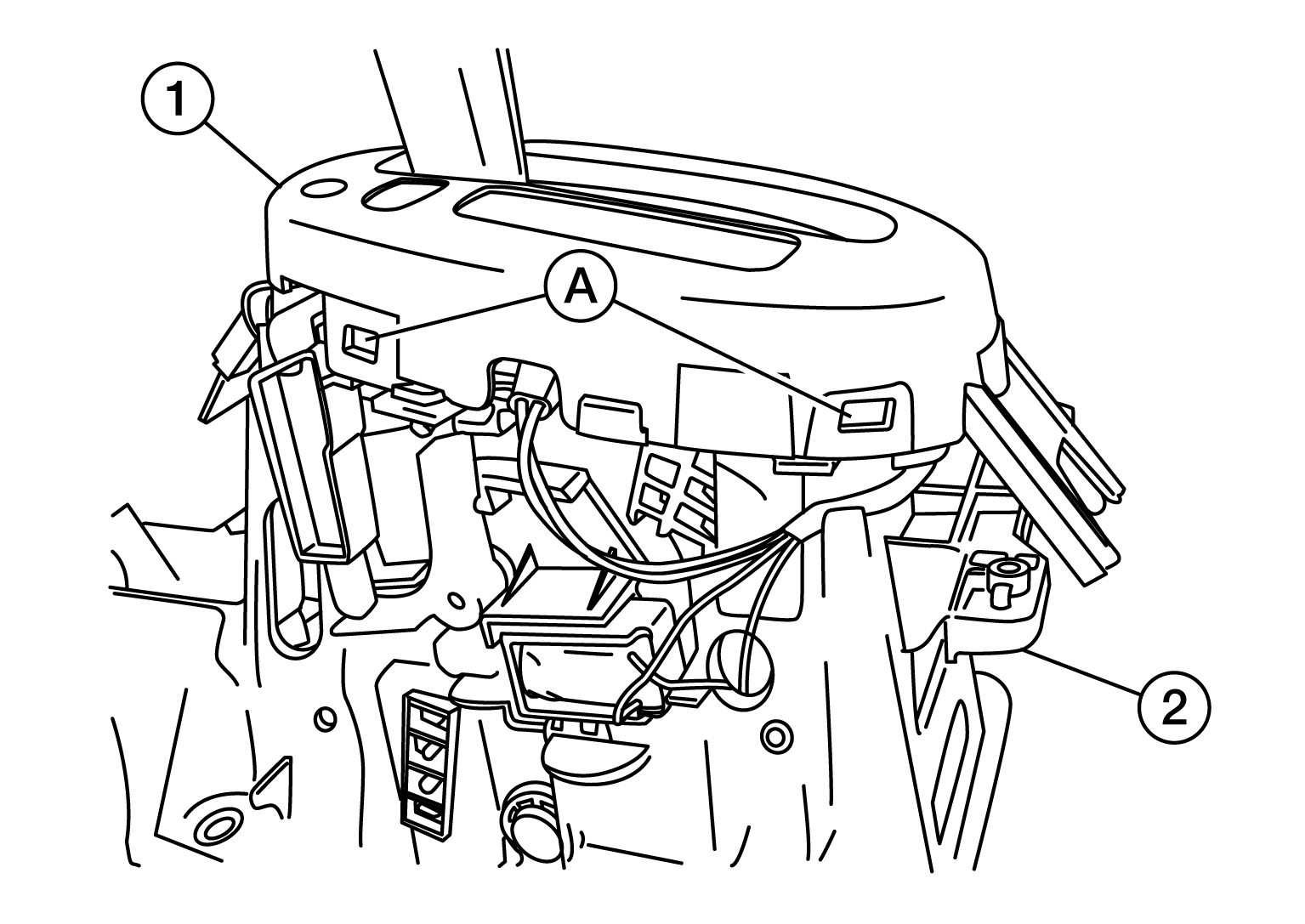

Disengage the hooks (A) (4 locations), and lift up the position indication panel (1) to separate it from the shift selector assembly (2).

Fig 2: Locating Hooks, Position Indication Panel And Shift Selector Assembly
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
Do not damage the shift selector assembly.
