Exploded View With Torque Specifications

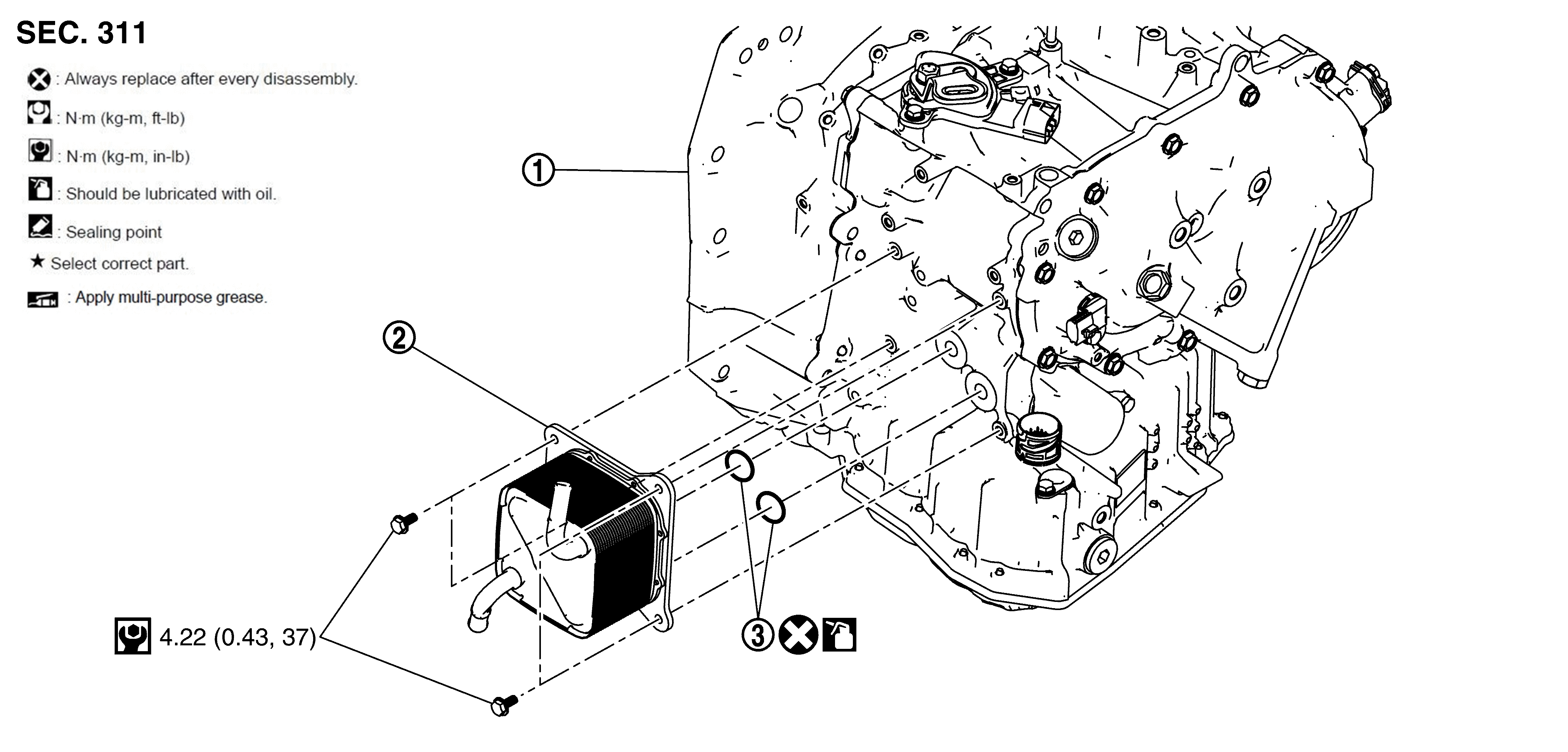

Fig 1: Exploded View Of CVT Oil Warmer With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Transaxle assembly	2.	CVT oil warmer	3.	O-ring
	: Always replace after every disassembly.
	: N•m (kg-m, in-lb)
	: Apply CVT fluid
