Wiring Diagram -Ignition Power Supply -

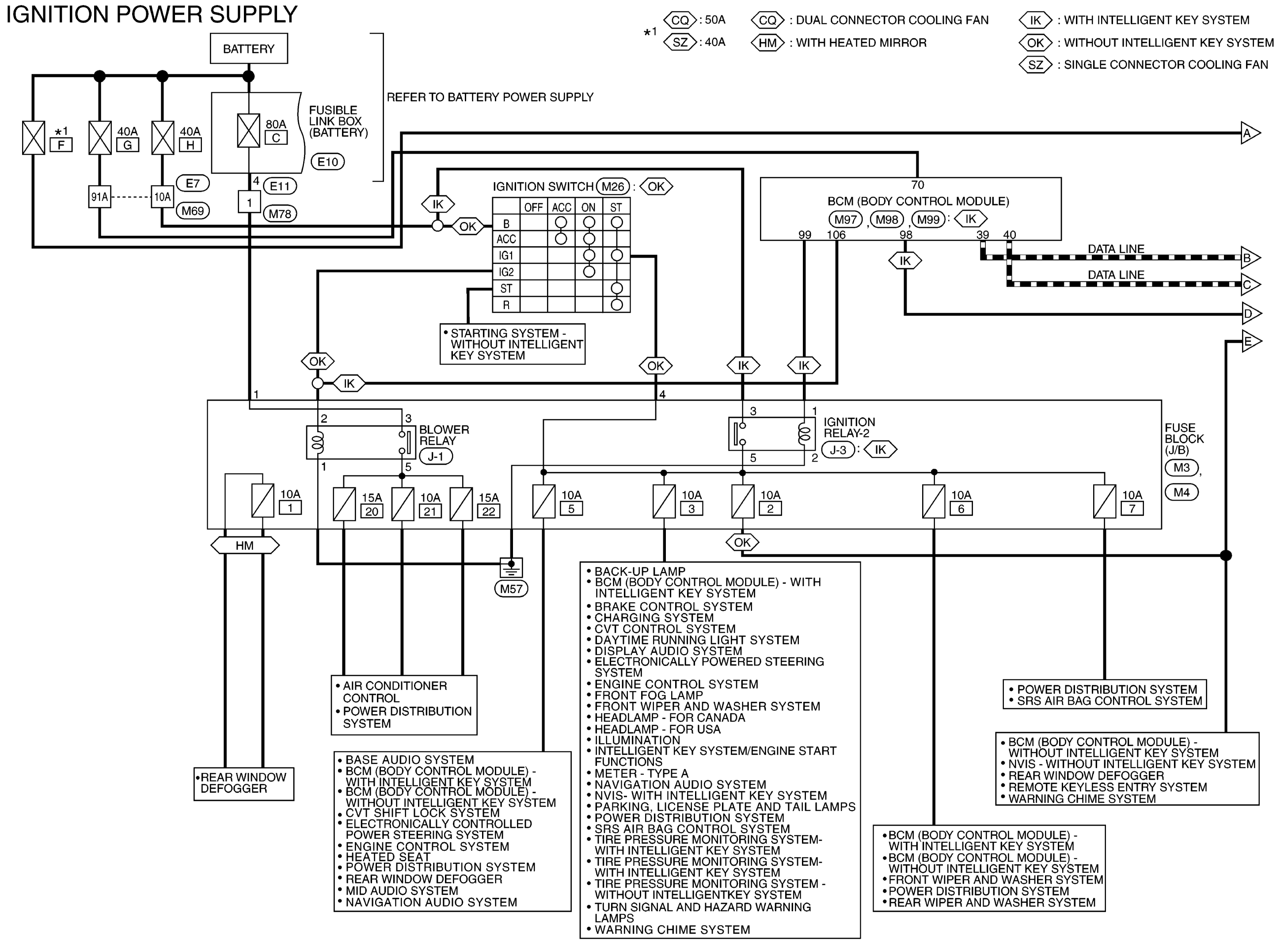

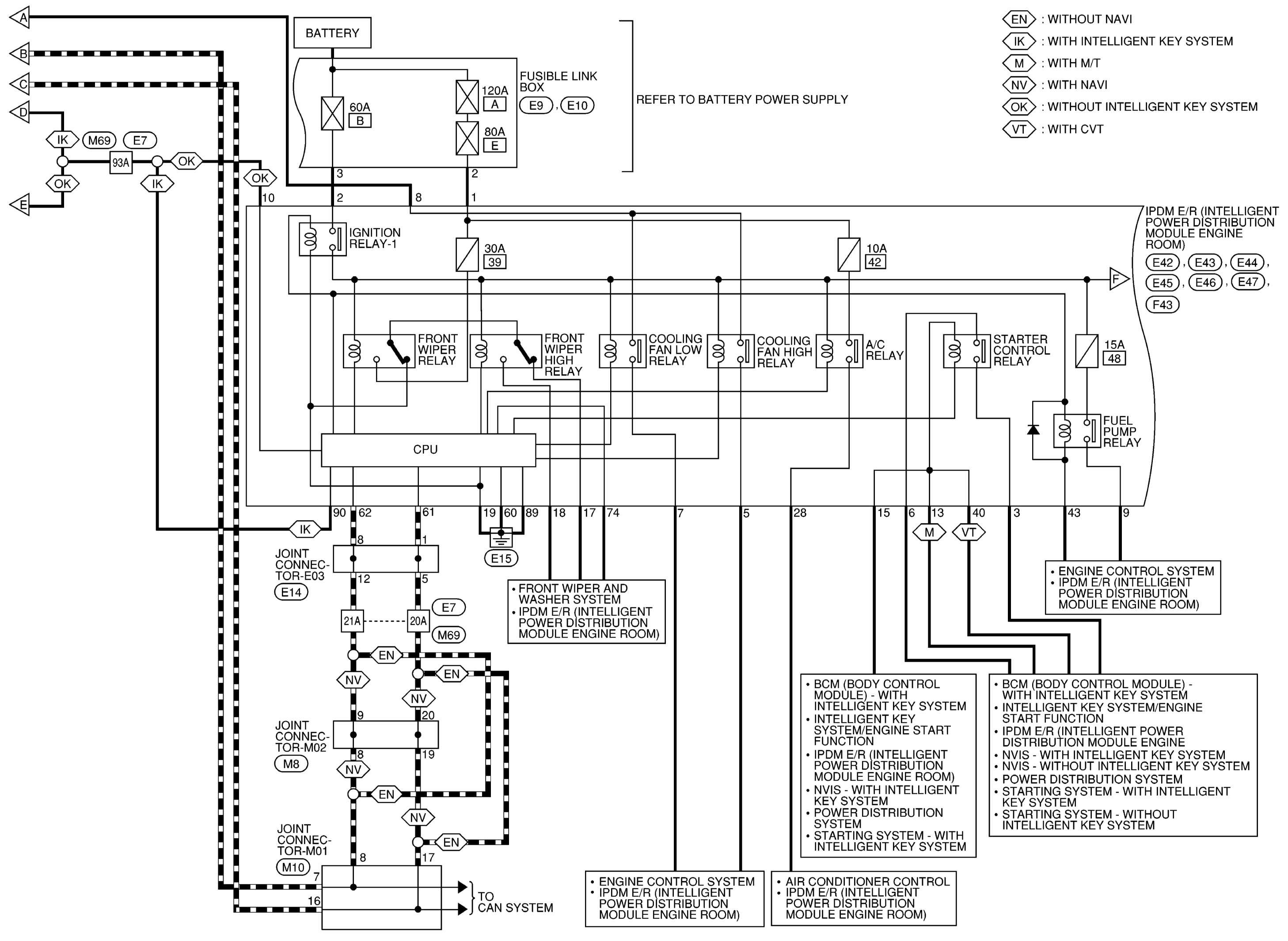

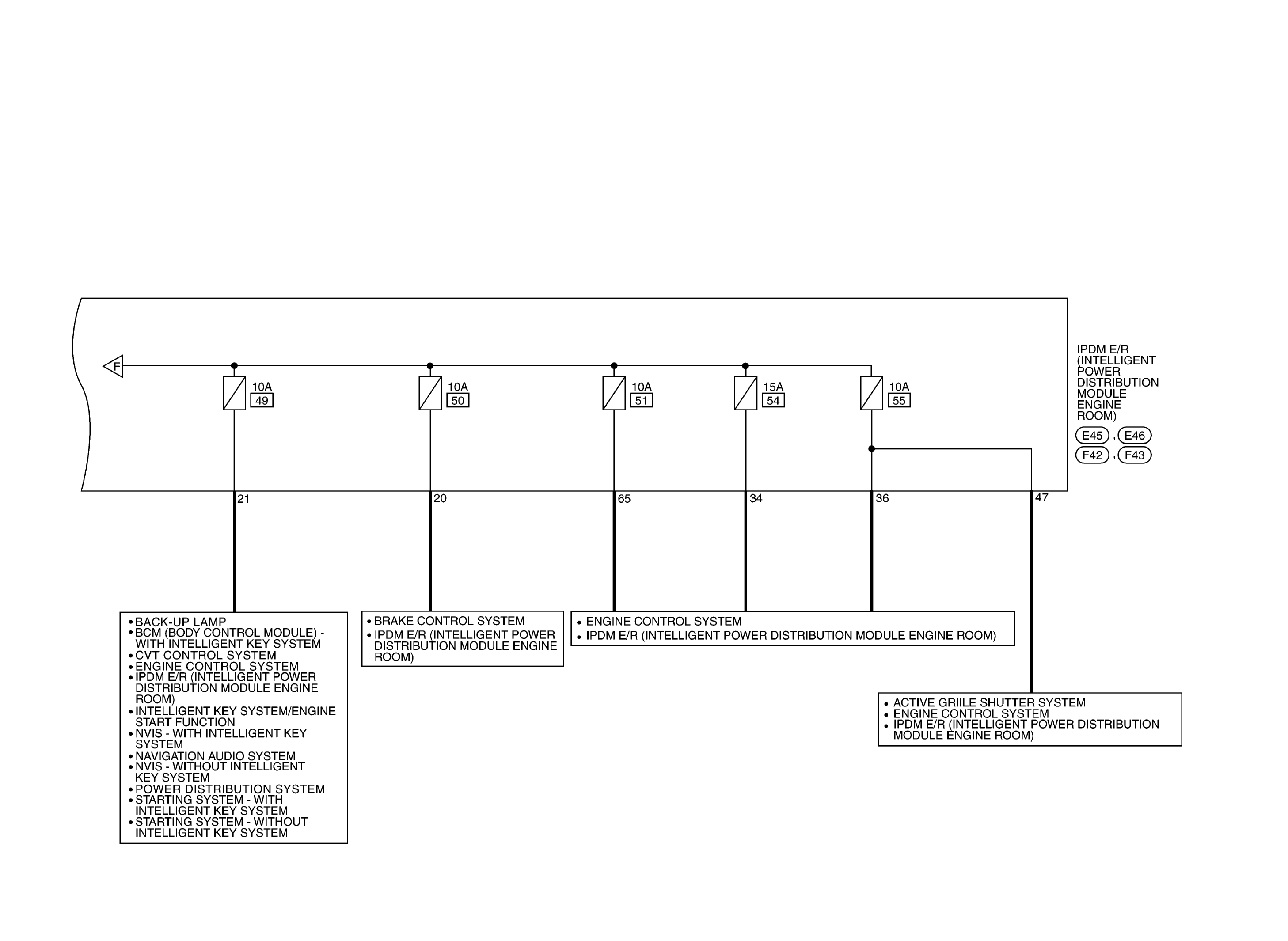

Fig 1: Ignition Power Supply Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

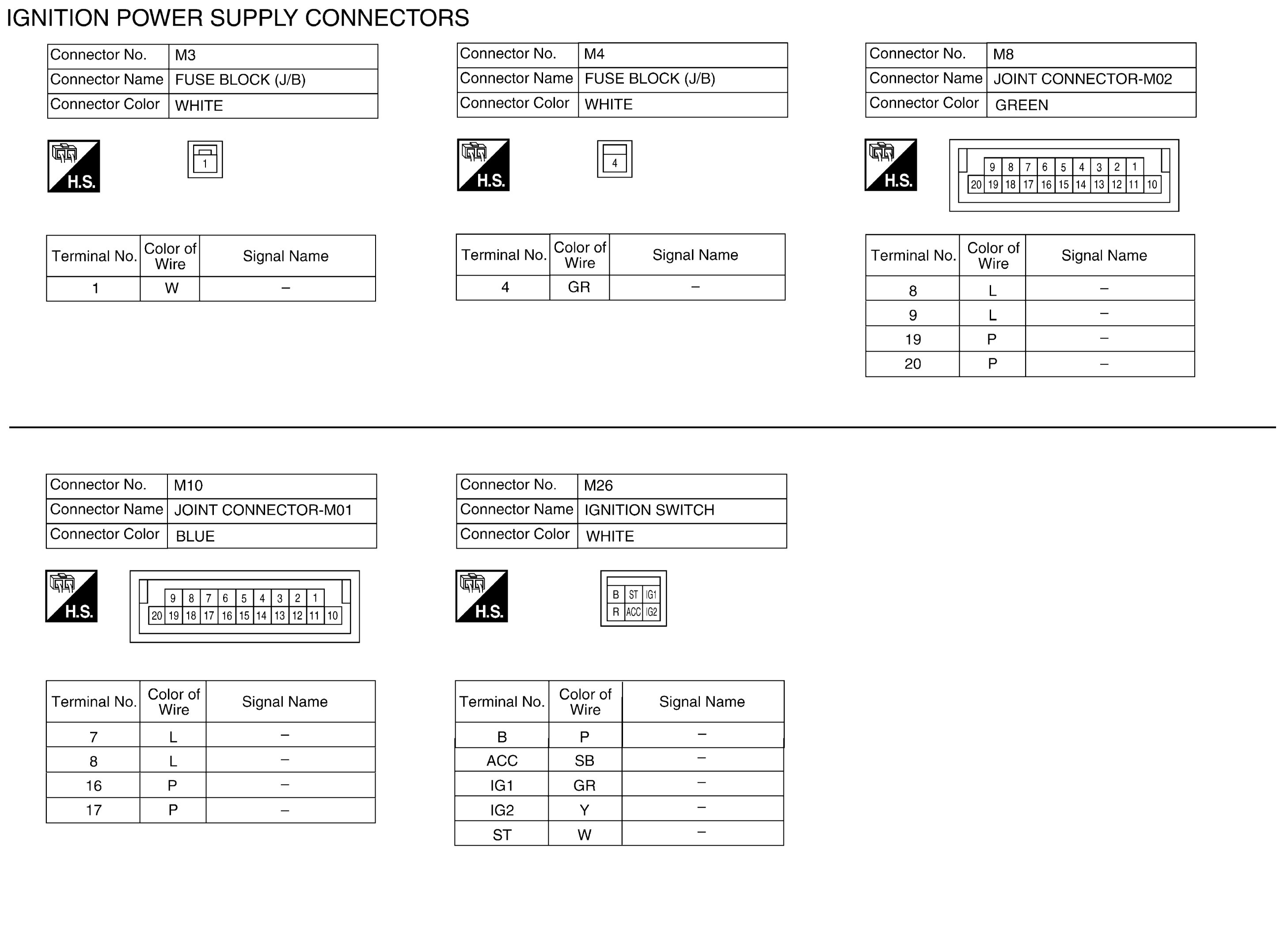

Fig 2: Ignition Power Supply Connector End View (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Ignition Power Supply Connector End View (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

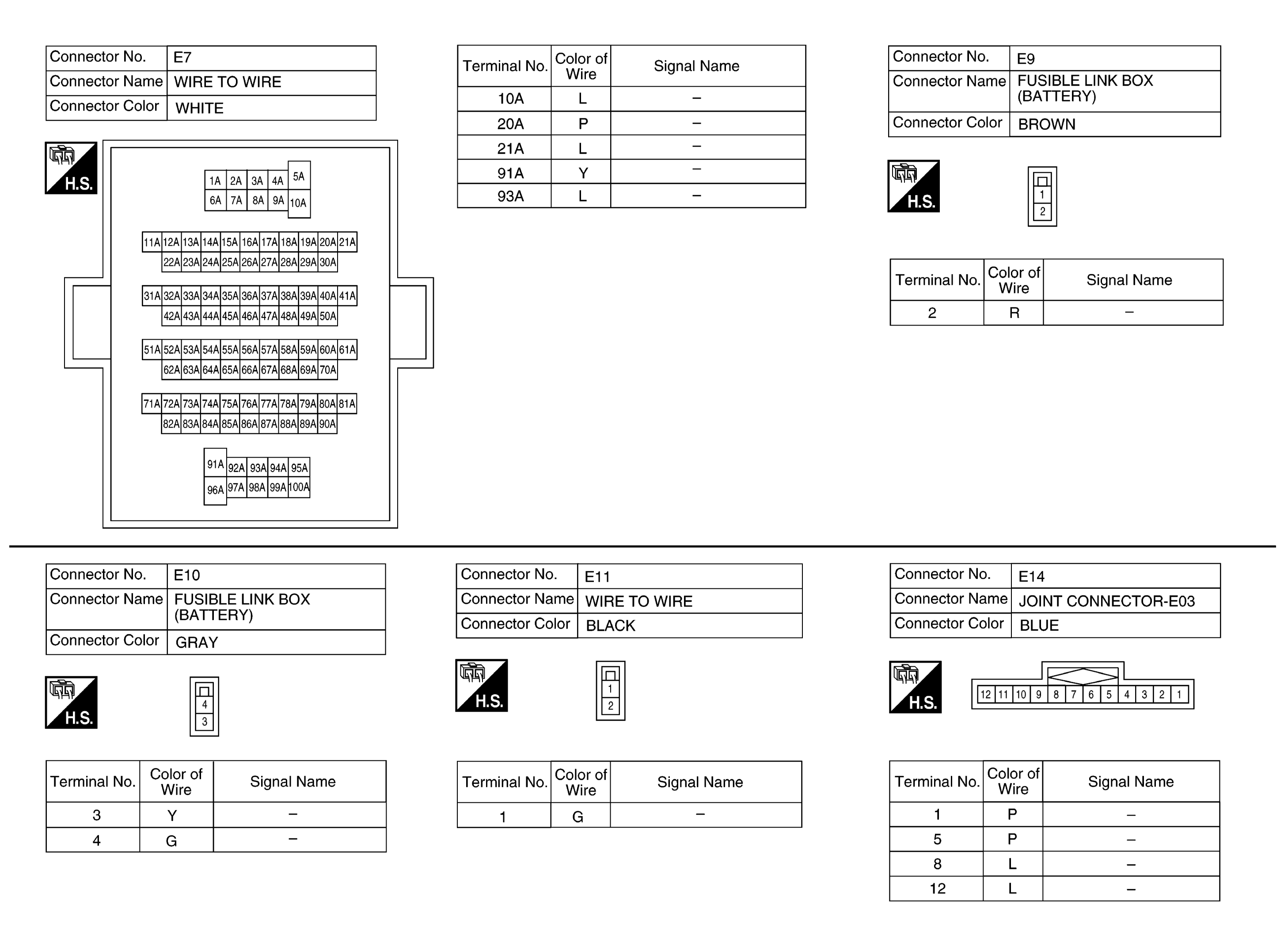

Fig 4: Ignition Power Supply Connector End View (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

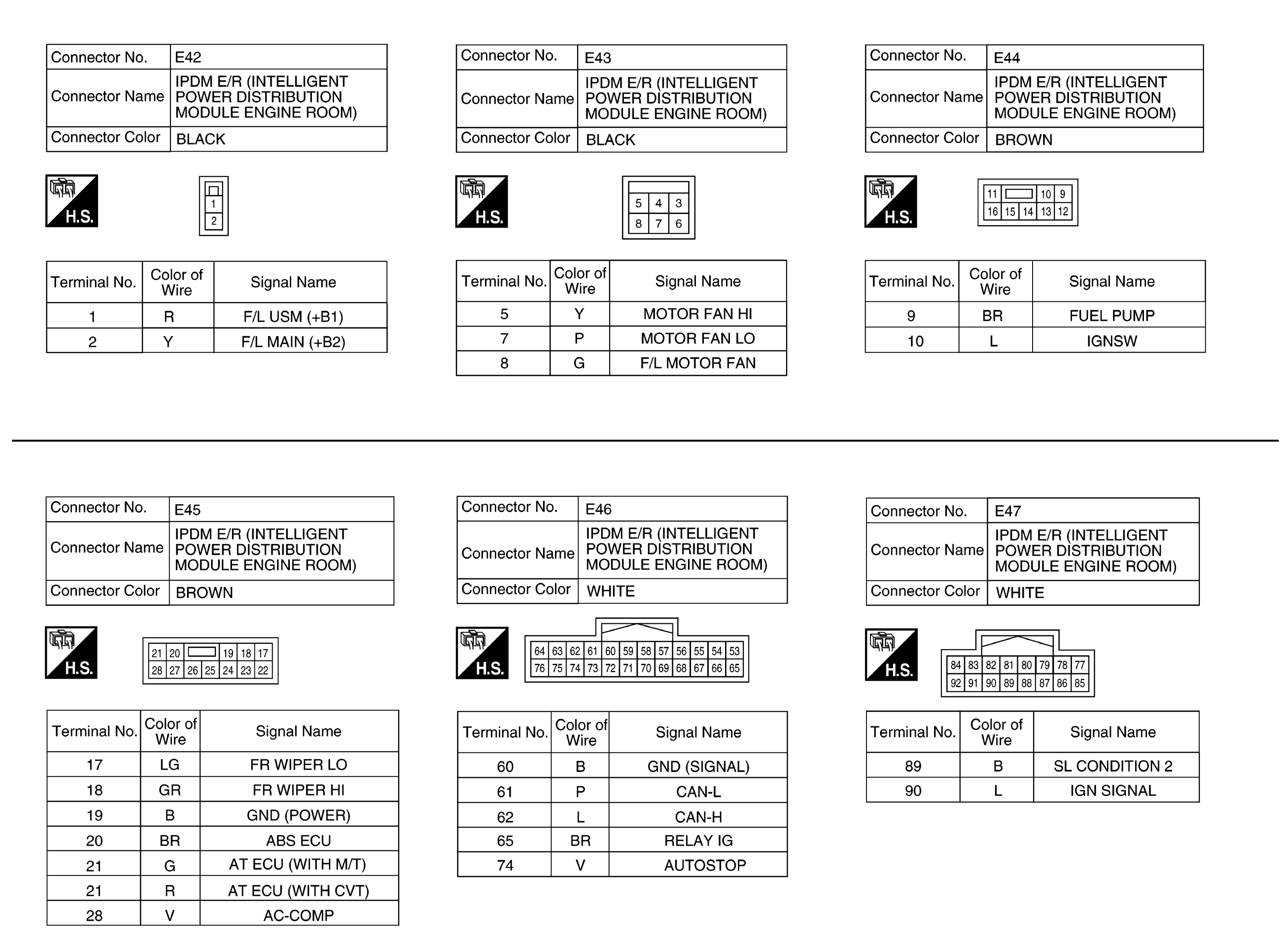

Fig 5: Ignition Power Supply Connector End View (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

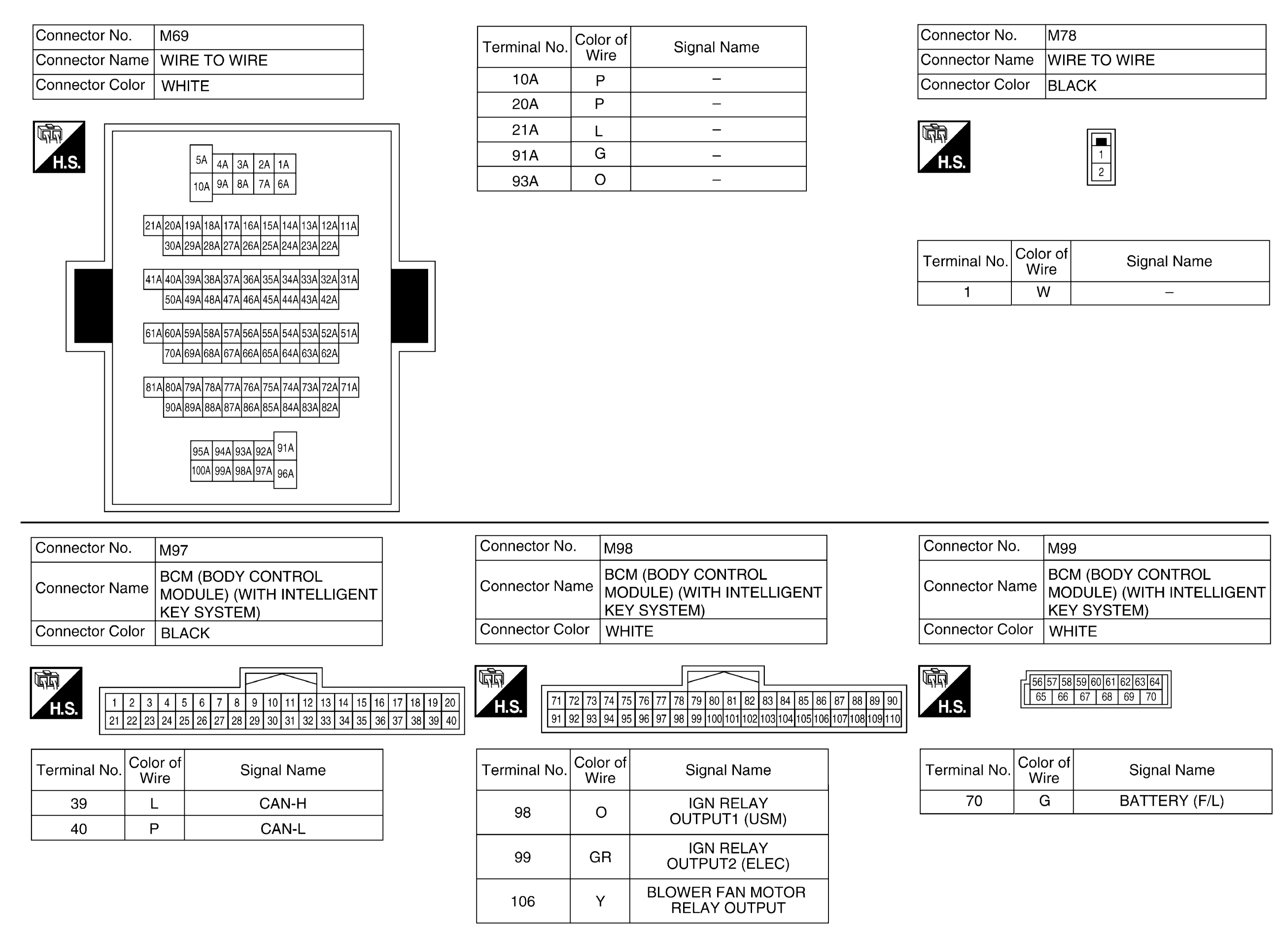

Fig 6: Ignition Power Supply Connector End View (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Ignition Power Supply Connector End View (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

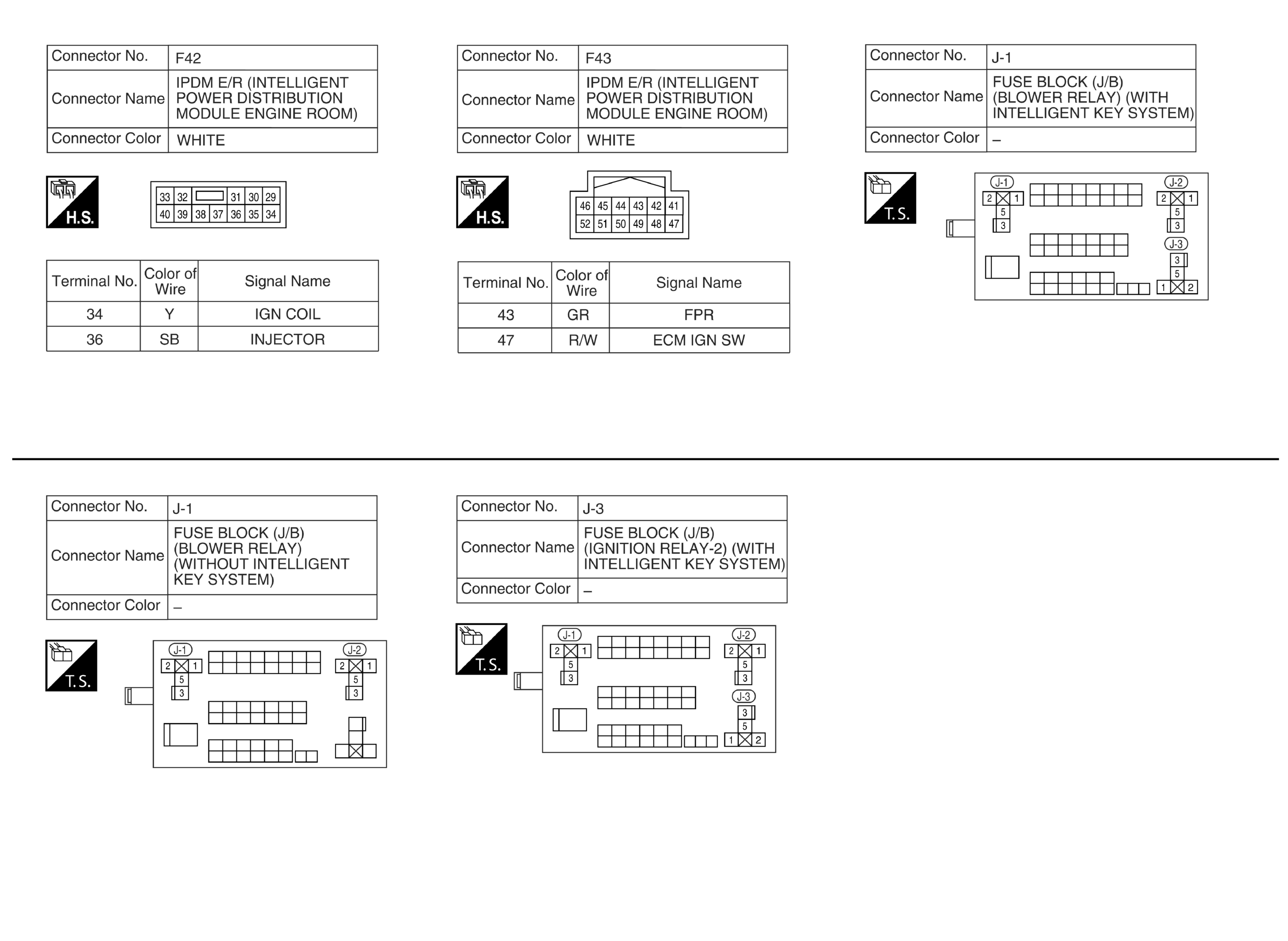

Fig 8: Ignition Power Supply Connector End View (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
