Removal And Installation: Removal

  1. Remove upper glove box screws (A).

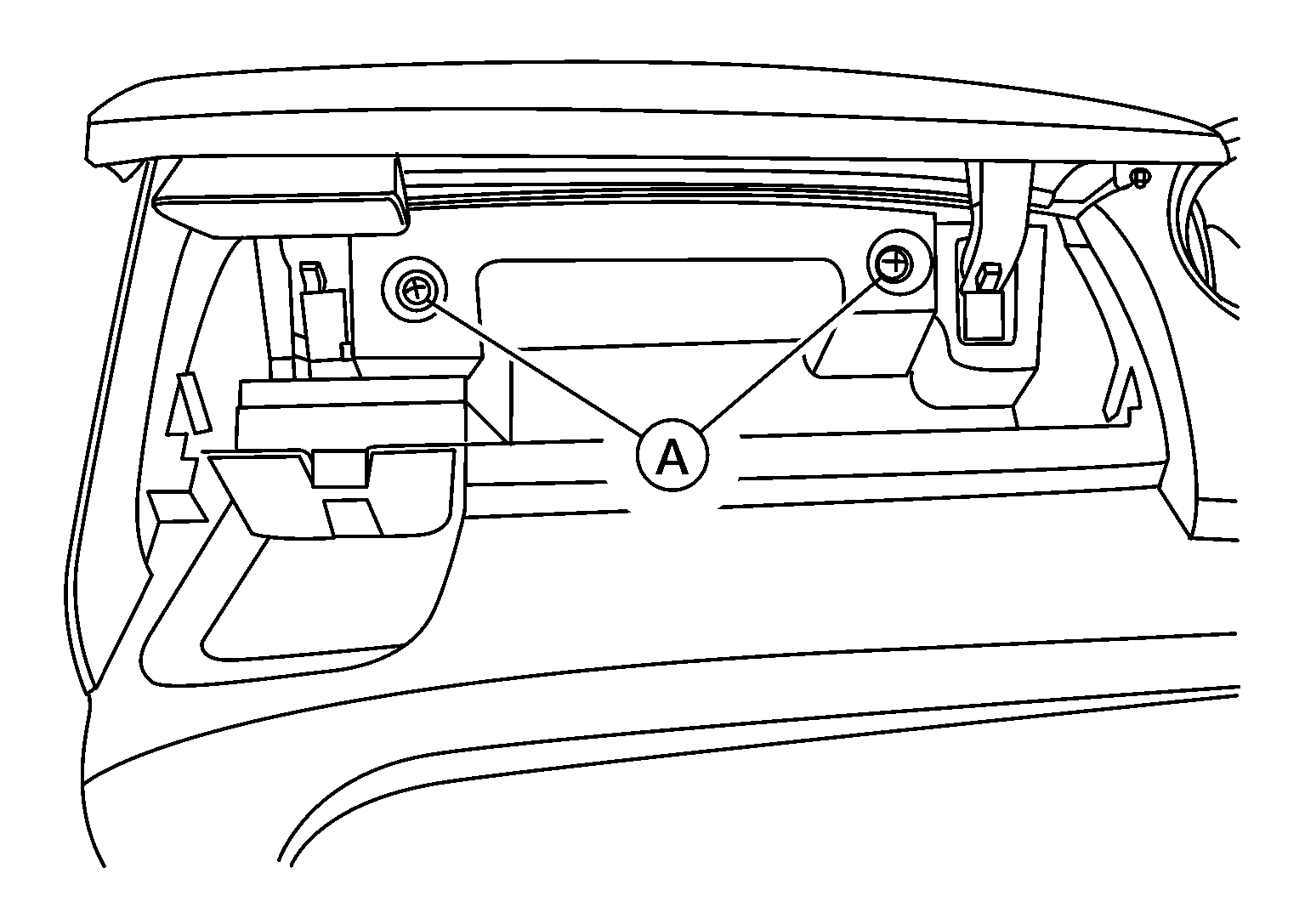

    Fig 1: Identifying Upper Glove Box Screws
    G09604032Courtesy of NISSAN NORTH AMERICA, INC.
  2. Release the clips and pawls using a suitable tool and remove upper glove box.
