Removal And Installation: Removal

  1. Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to REMOVAL AND INSTALLATION (BATTERY) .
  2. Remove front pillar finishers (LH/RH). Refer to REMOVAL AND INSTALLATION .
  3. Remove dash side finishers (LH/RH). Refer to REMOVAL AND INSTALLATION .
  4. Partially remove front body side welts (LH/RH). Refer to EXPLODED VIEW .
  5. Release the pawls using a suitable tool (A) and then remove instrument side finisher (LH) as shown below.

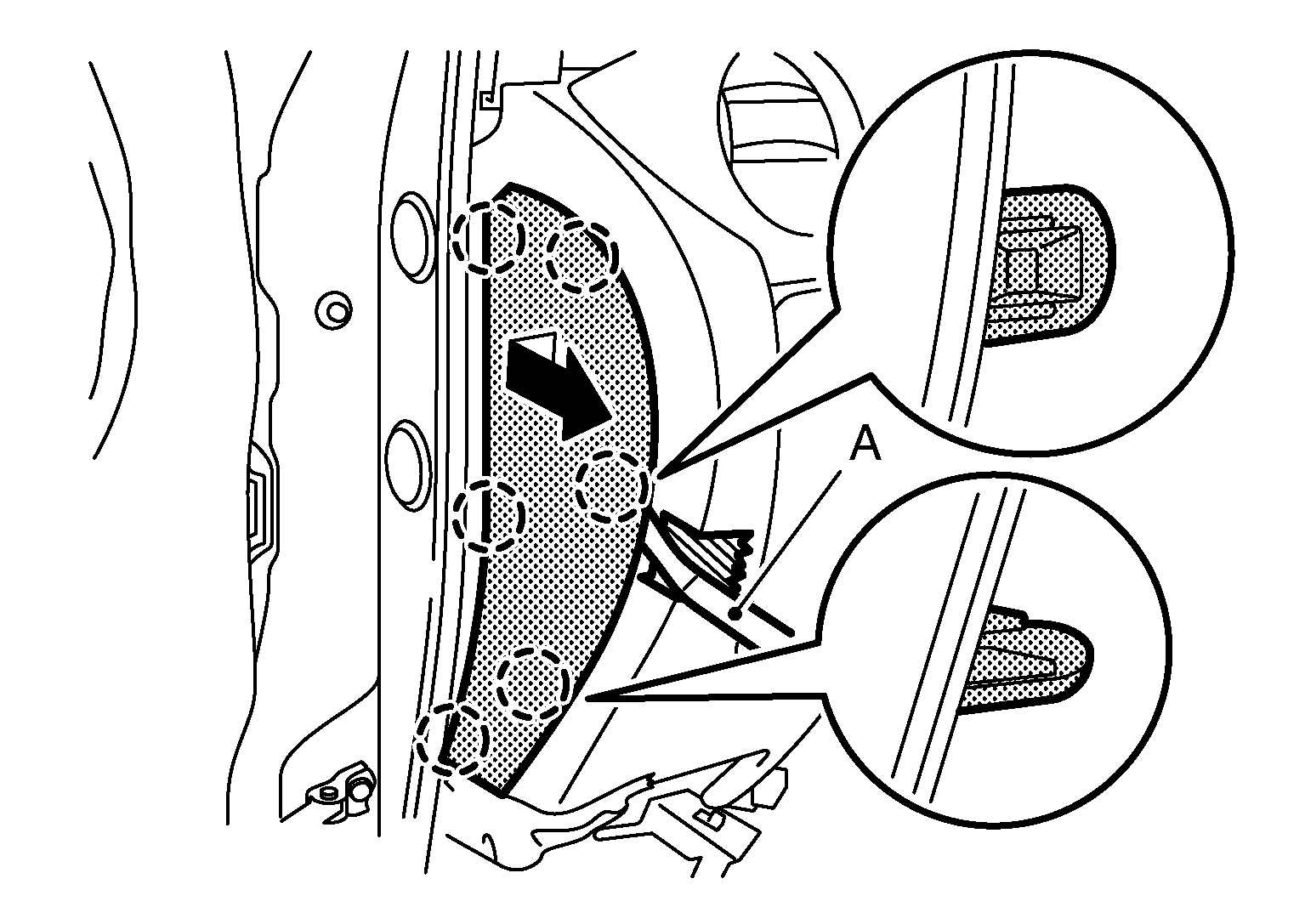

    Fig 1: Locating Pawls And Instrument Side Finisher (LH)
    GNSAWJIA1130ZZ-130Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl

  6. Release the pawls using a suitable tool (A) and then remove instrument side finisher (RH) as shown below.

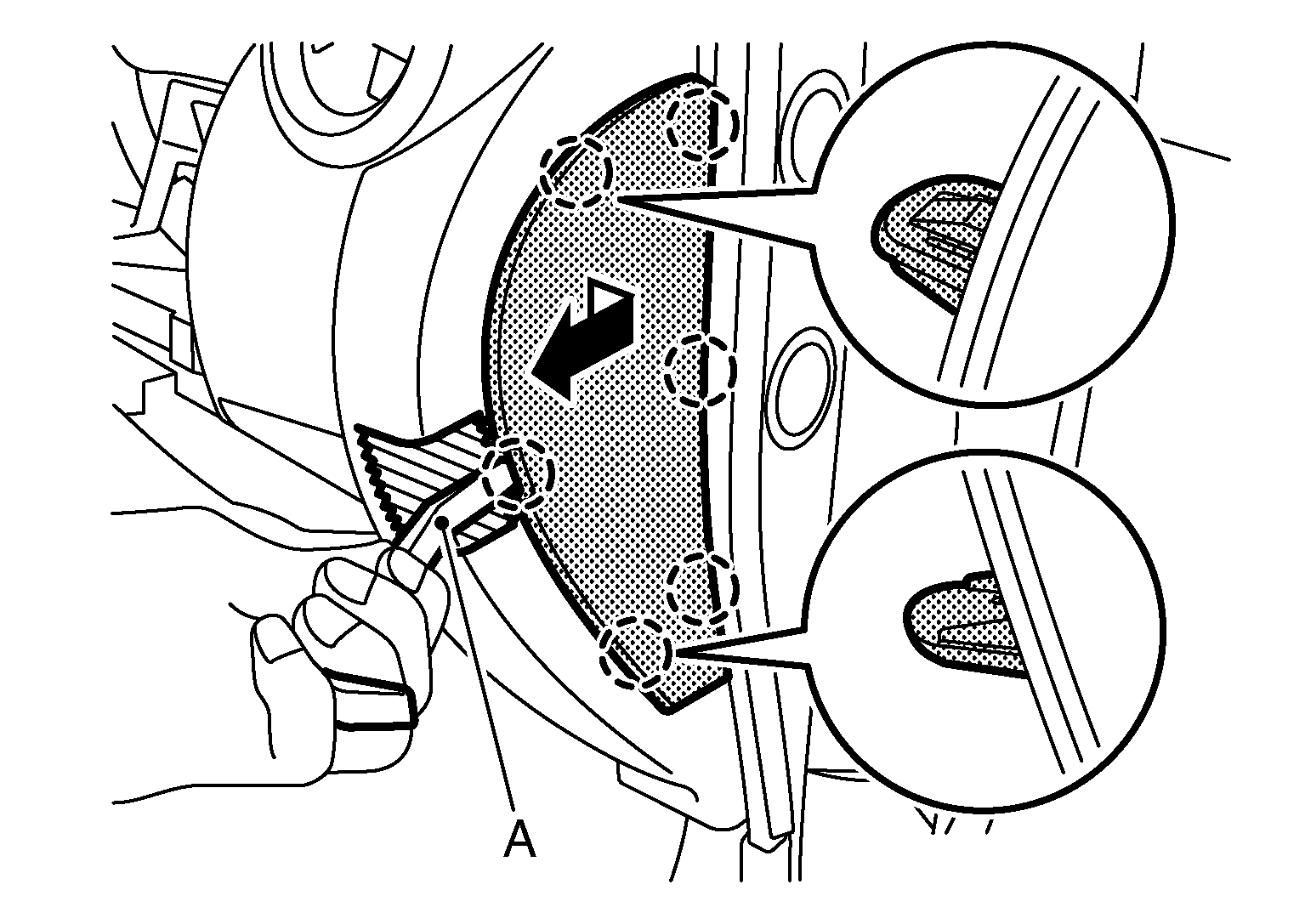

    Fig 2: Pawls And Instrument Side Finisher (RH)
    GNSAWJIA1131ZZ-131Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl

  7. Remove center console lower. Refer to REMOVAL AND INSTALLATION .
  8. Remove steering wheel. Refer to REMOVAL AND INSTALLATION .
  9. Remove steering column covers. Refer to REMOVAL AND INSTALLATION .
  10. Remove combination switch. Refer to REMOVAL AND INSTALLATION .
  11. Remove combination meter. Refer to REMOVAL AND INSTALLATION .
  12. Remove audio unit. Refer to REMOVAL AND INSTALLATION (BASE AUDIO) or REMOVAL AND INSTALLATION (MID AUDIO) or REMOVAL AND INSTALLATION (DISPLAY AUDIO).
  13. Remove AV control unit (NAVIGATION). Refer to REMOVAL AND INSTALLATION .
  14. Remove front air control. Refer to REMOVAL AND INSTALLATION .
  15. Remove glove box assembly. Refer to REMOVAL AND INSTALLATION .
  16. Remove front passenger air bag module. Refer to REMOVAL AND INSTALLATION .
  17. Remove instrument panel assembly.
    1. Remove instrument panel assembly screws (A).

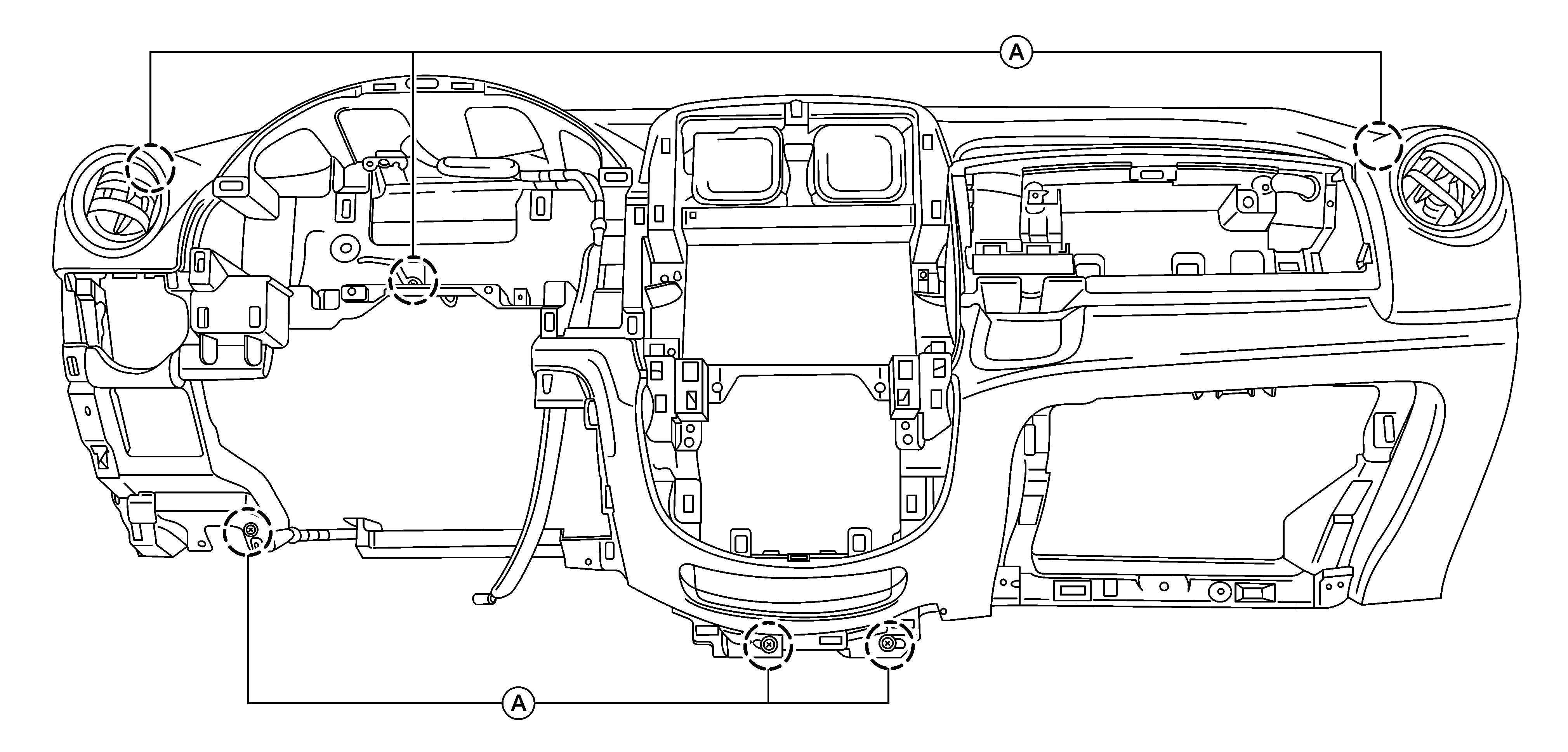

      Fig 3: Identifying Instrument Panel Assembly Screws
      G09604017Courtesy of NISSAN NORTH AMERICA, INC.
    2. Disconnect the harness connectors from the instrument panel assembly.
    3. Remove instrument panel assembly through passenger door opening.
      CAUTION:
      • Cover shift selector assembly with a shop cloth to prevent damage to instrument panel assembly.
      • When removing instrument panel assembly, two people are required to prevent from damage.
  18. Removal of the following components is only necessary if replacing the instrument panel assembly.
