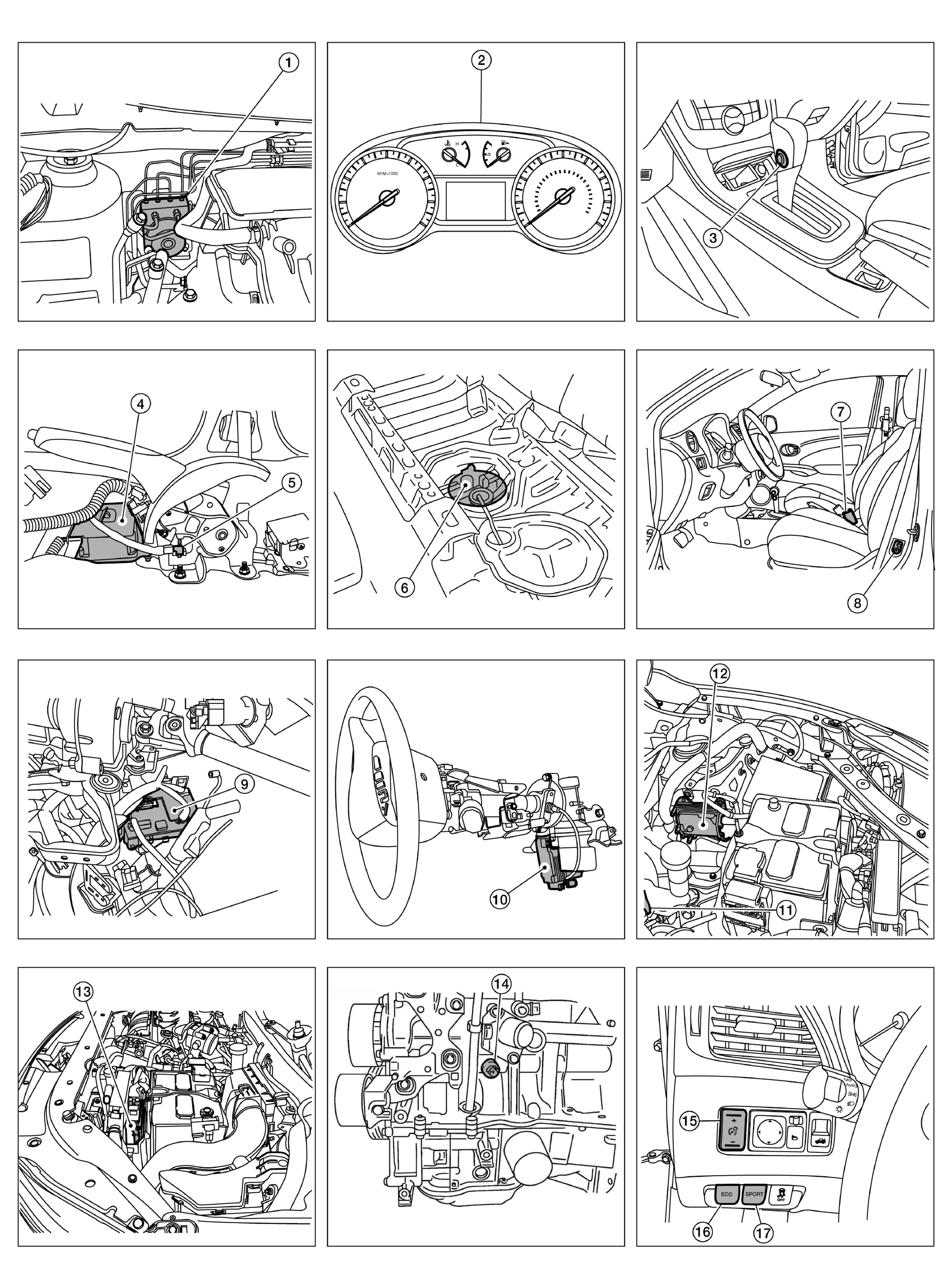

Component Parts Location
| 1. | ABS actuator and electric unit (control unit) | 2. | Combination meter | 3. | CVT shift selector (with CVT) (O/D OFF switch) |
| 4. | Air bag diagnosis sensor unit (view with center console assembly removed) |
5. | Parking brake switch (view with center console removed) |
6. | Fuel level sensor unit and fuel pump (view with fuel pump inspection cover removed) |
| 7. | Seat belt buckle switch LH (RH similar) |
8. | Front door switch LH (RH similar) |
9. | BCM (view with instrument panel removed) |
| 10. | Power steering control module (view with steering column assembly removed) |
11. | Brake fluid level switch | 12. | TCM (with CVT) |
| 13. | ECM | 14. | Engine oil pressure sensor | 15. | Illumination control switch |

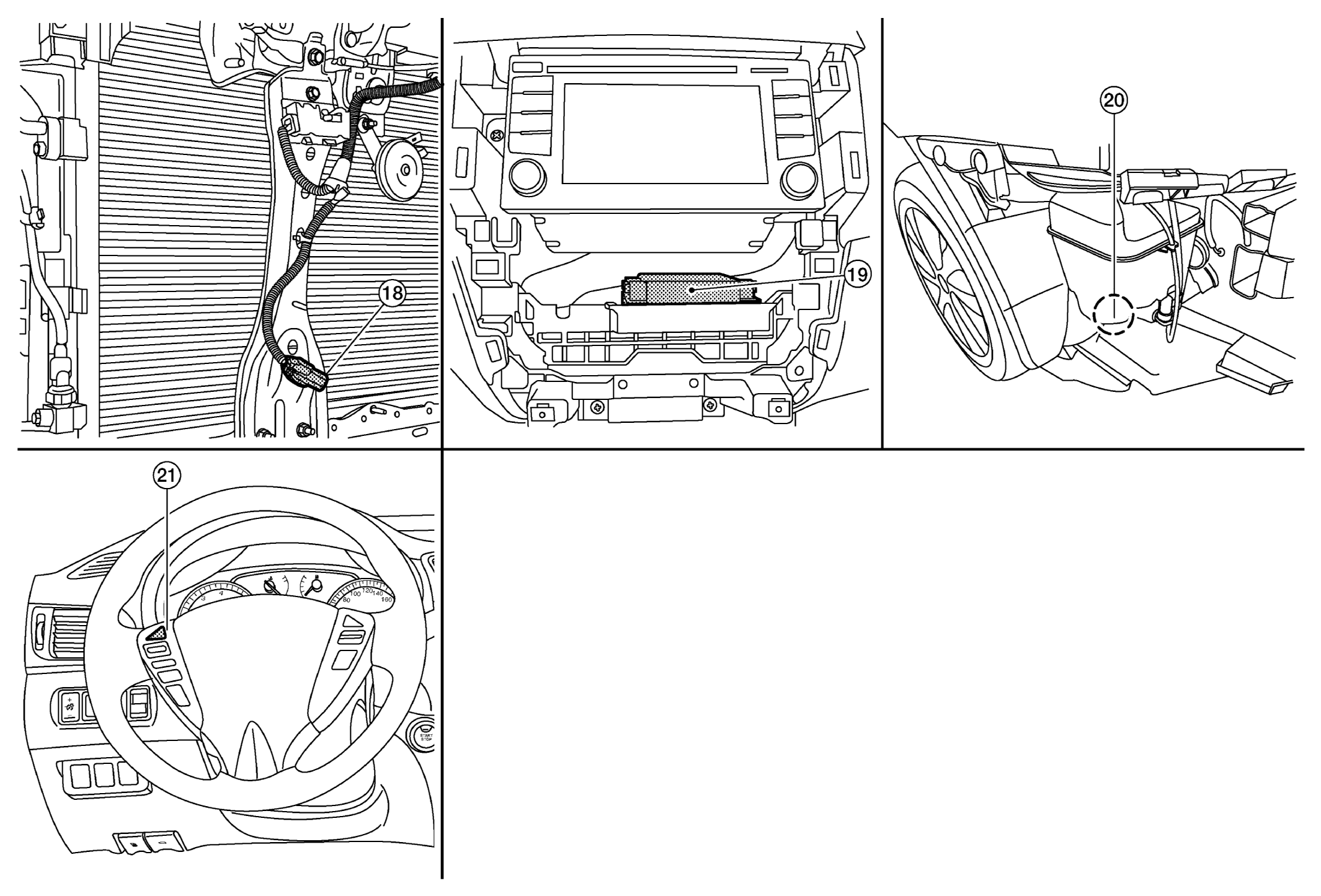

| 16. | ECO mode switch | 17. | Sport mode switch | 18. | Ambient sensor |
| 19. | A/C auto amp. (with auto A/C) (view with A/C switch assembly removed) |
20. | Washer fluid level switch (view with front fascia removed) |
21. | Steering switch |
