Removal And Installation: Removal

  1. Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to REMOVAL AND INSTALLATION (BATTERY) .
  2. Remove the instrument side finishers (1) (LH/RH) using a suitable tool.
    Fig 1: Identifying Instrument Side Finisher LH
    G04887711Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE:

    LH side shown above; RH side similar.

  3. Remove the front pillar finishers (LH/RH). Refer to REMOVAL AND INSTALLATION .
  4. Remove the front kicking plates (LH/RH). Refer to REMOVAL AND INSTALLATION .
  5. Remove the instrument lower panel LH. Refer to REMOVAL AND INSTALLATION .
  6. Remove the audio unit. Refer to REMOVAL AND INSTALLATION (BASE AUDIO), REMOVAL AND INSTALLATION (DISPLAY AUDIO SYSTEM).
  7. Remove the AV control unit. Refer to REMOVAL AND INSTALLATION (NAVIGATION WITHOUT BOSE) or REMOVAL AND INSTALLATION (NAVIGATION WITH BOSE).
  8. Remove the steering wheel. Refer to REMOVAL AND INSTALLATION .
  9. Remove the combination switch. Refer to REMOVAL AND INSTALLATION .
  10. Remove the combination meter. Refer to REMOVAL AND INSTALLATION .
  11. Remove the glove box assembly. Refer to REMOVAL AND INSTALLATION .
  12. Remove the center console assembly. Refer to REMOVAL AND INSTALLATION .
  13. Remove the instrument panel screws (A) (LH/RH).

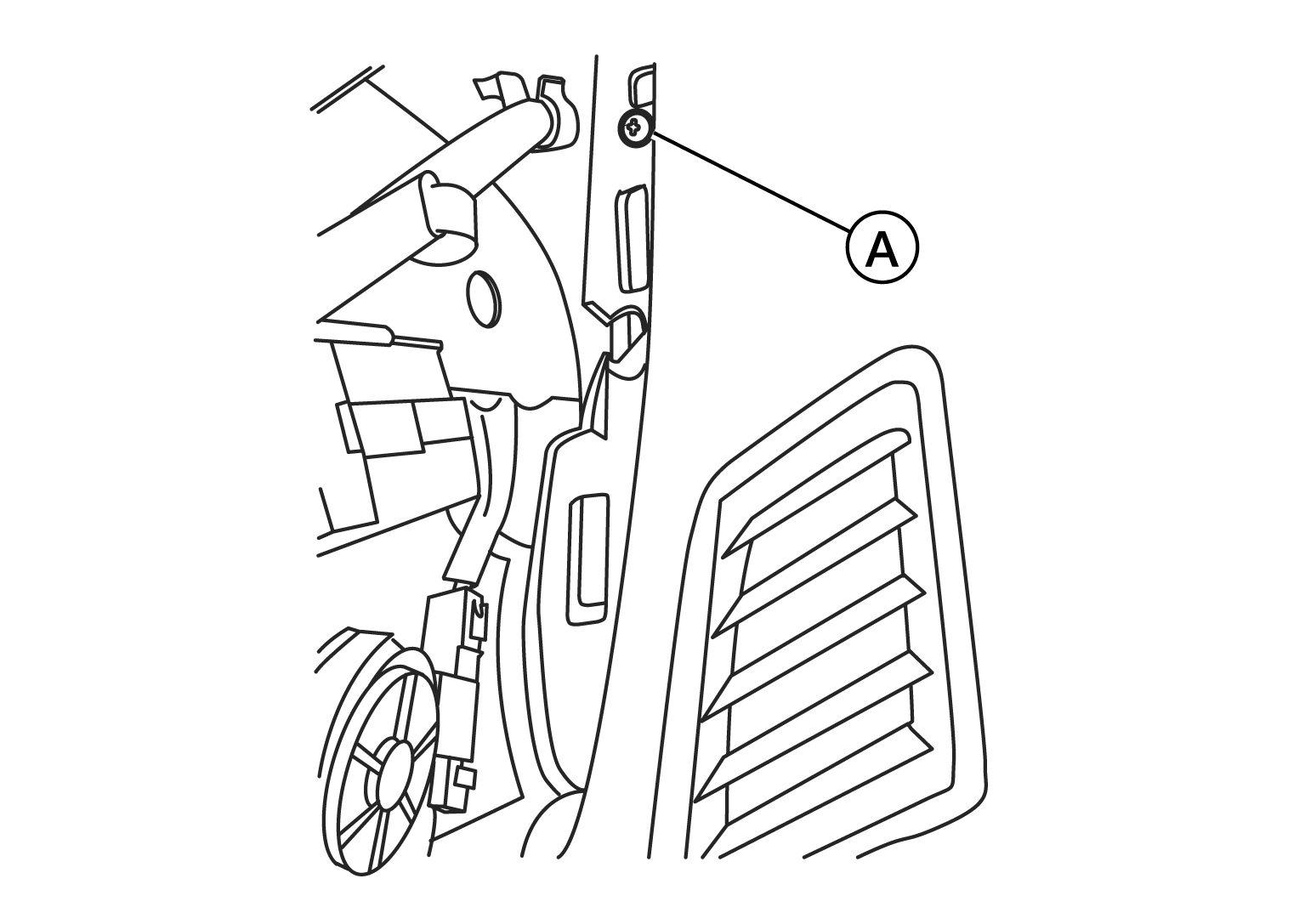

    Fig 2: Identifying Instrument Panel Screws
    G08990609Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE:

    The instrument panel screws (A) can be found near the side defroster grilles (LH/RH).

  14. Remove the remaining instrument panel screws.
  15. Disconnect the harness connector from the front passenger air bag module.
  16. Disconnect all remaining harness connectors.
  17. With the help of an assistant, remove the instrument panel assembly.
    CAUTION:

    Be careful not to scratch the instrument panel pad and other parts.
