Sentra SL
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Meter, Warning Lamp & Indicator
>>
Wiring Diagram
>>
Meter System
>>
Wiring Diagram
Meter System: Wiring Diagram

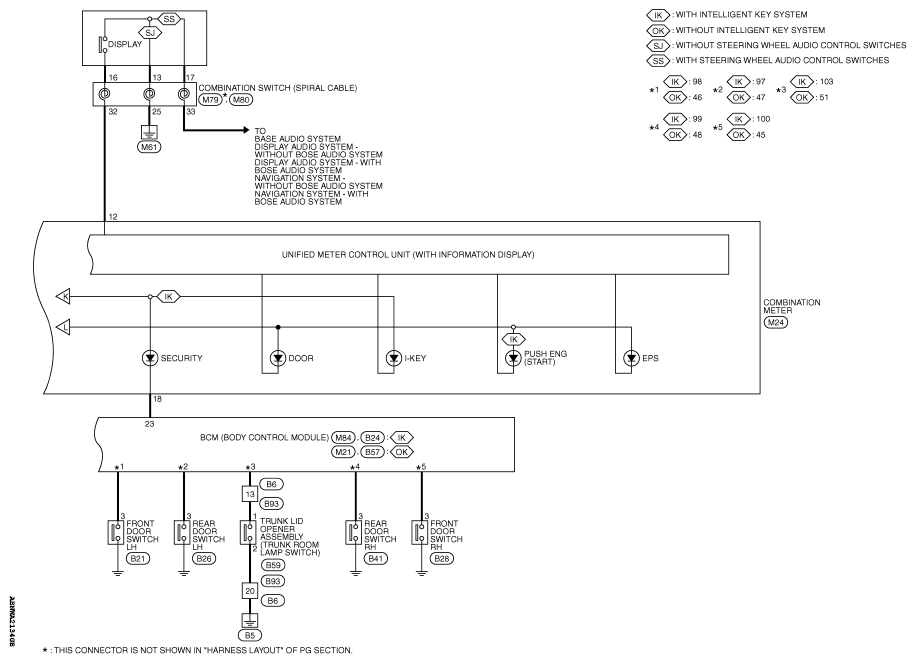

Fig 1: Meter System - Wiring Diagram (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

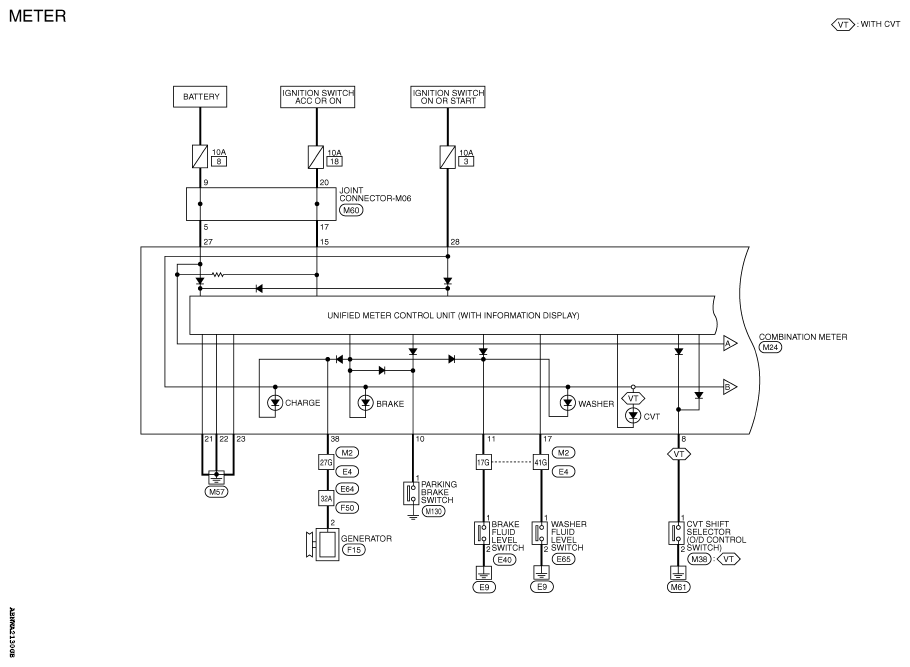

Fig 2: Meter System - Wiring Diagram (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

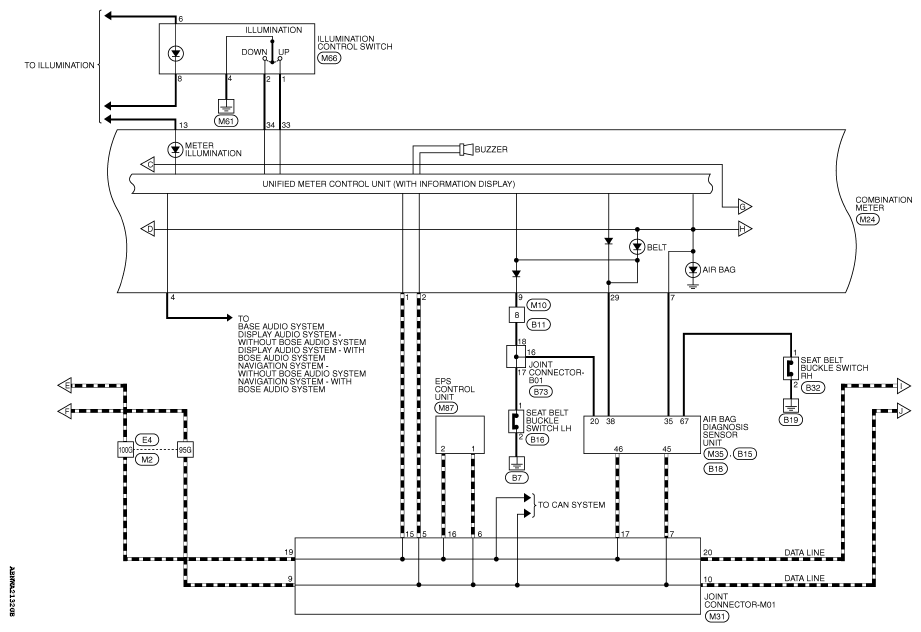

Fig 3: Meter System - Wiring Diagram (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

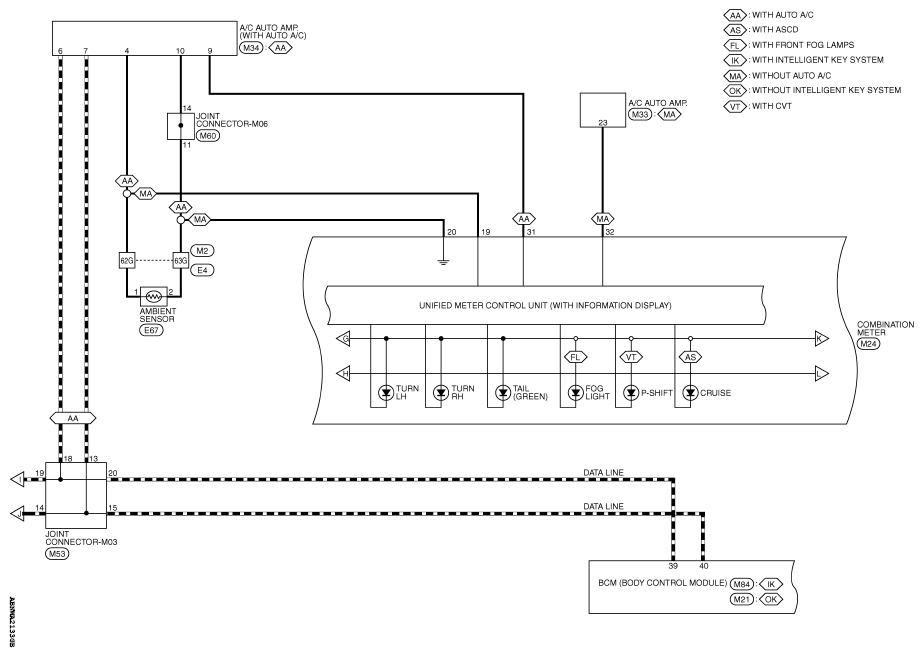

Fig 4: Meter System - Wiring Diagram (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

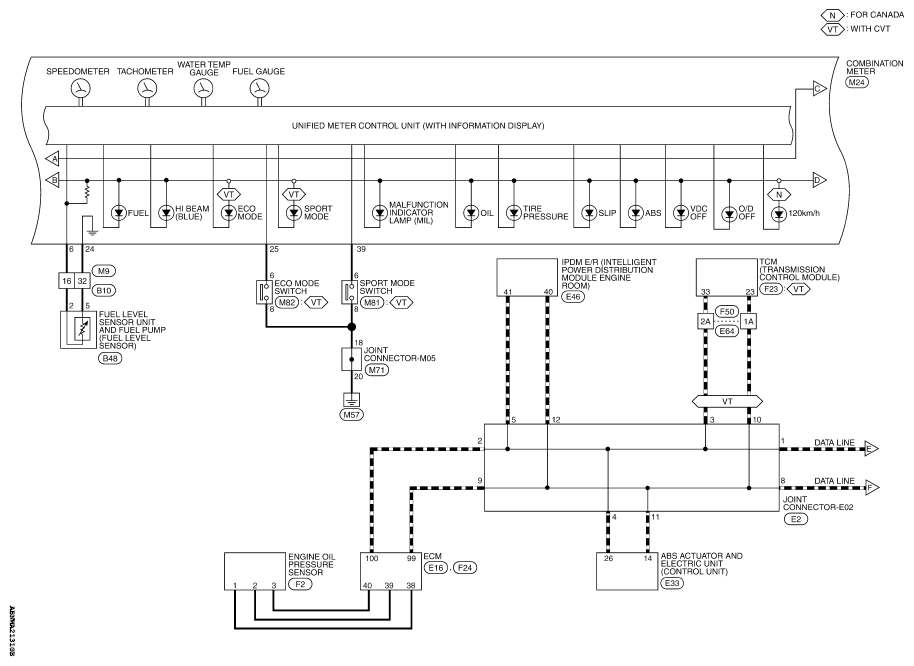

Fig 5: Meter System - Wiring Diagram (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
