Connector End Views

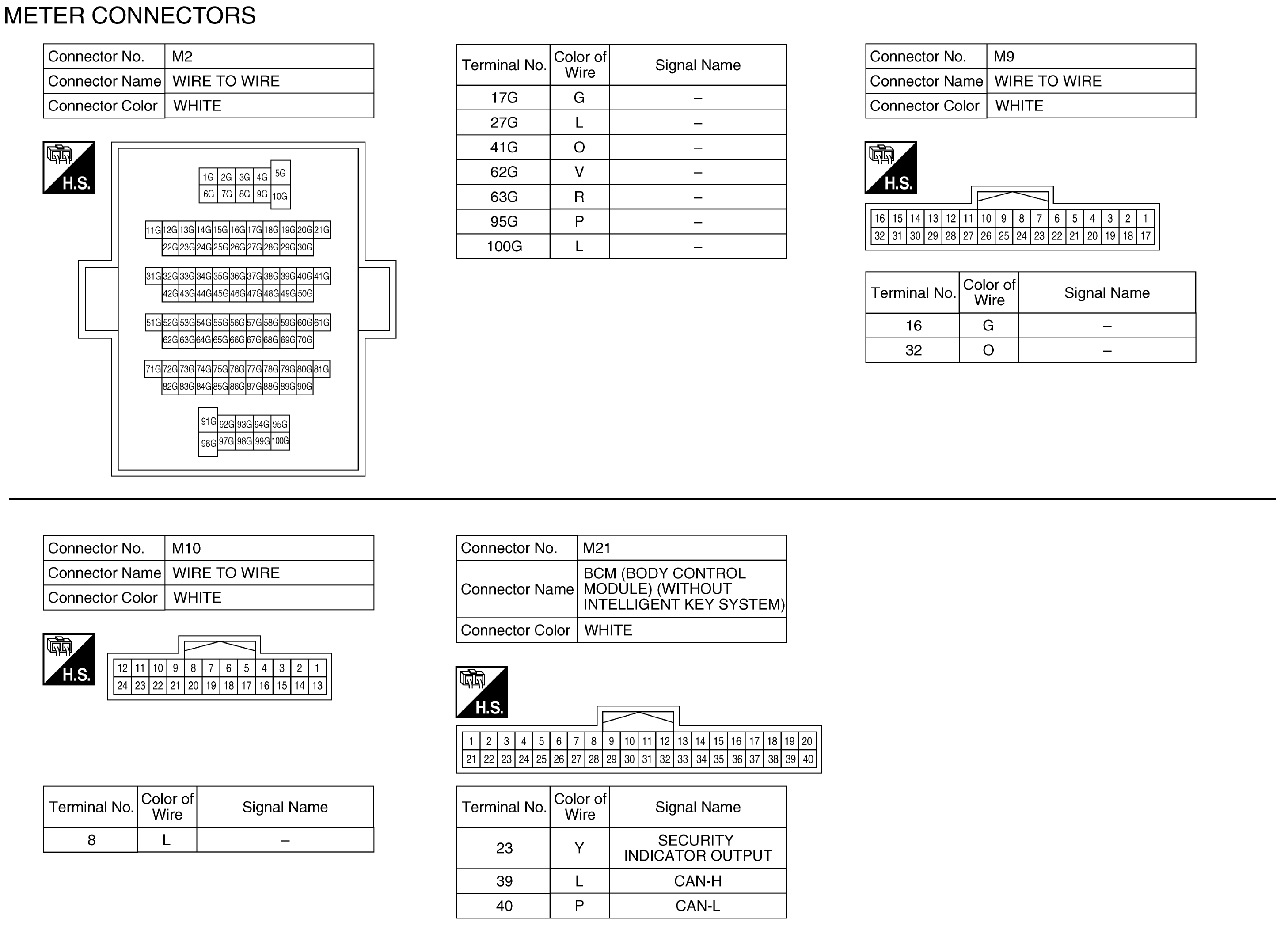

Fig 1: Meter System Connector End Views (1 Of 10)

G09460983

Courtesy of NISSAN NORTH AMERICA, INC.

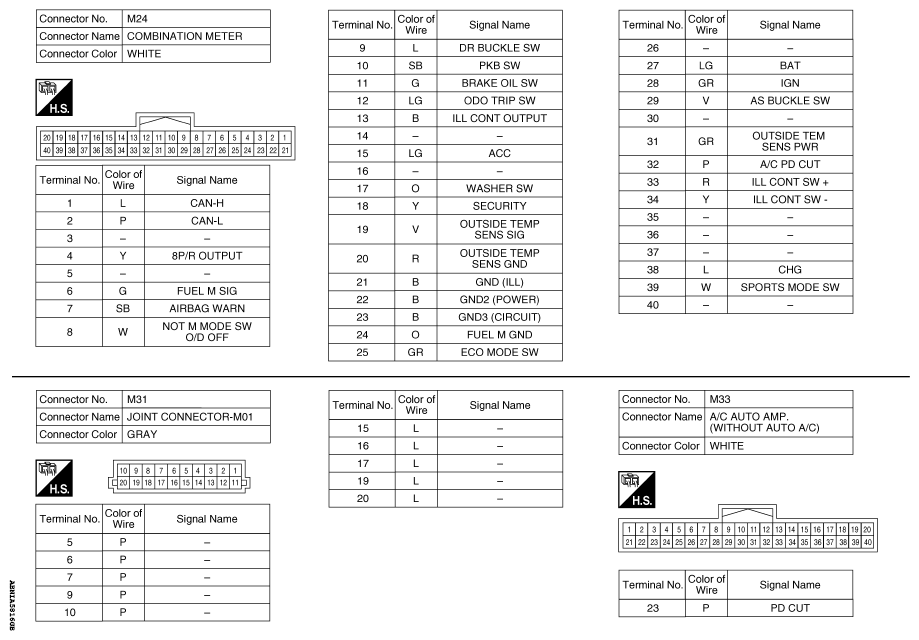

Fig 2: Meter System Connector End Views (2 Of 10)

G09460984

Courtesy of NISSAN NORTH AMERICA, INC.

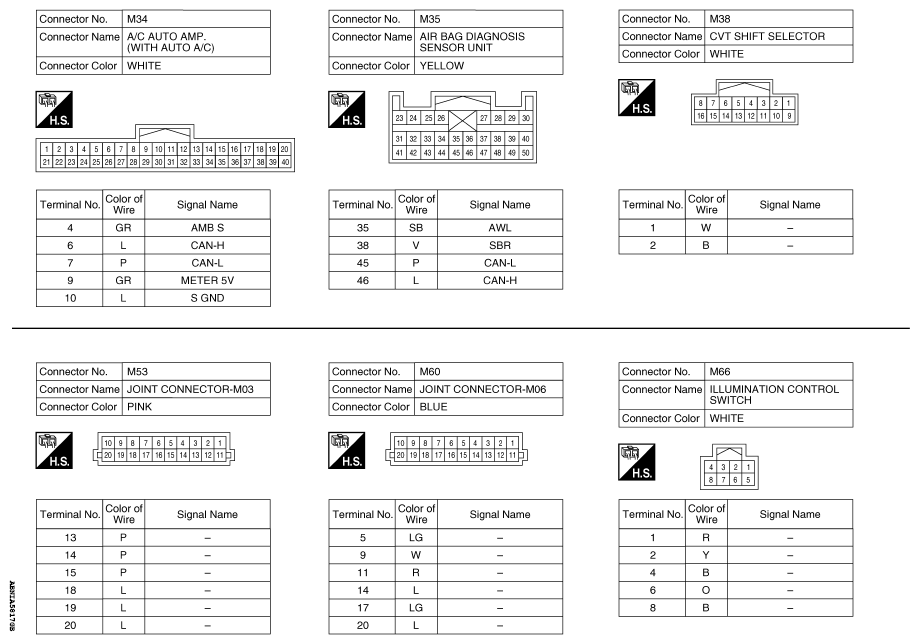

Fig 3: Meter System Connector End Views (3 Of 10)

G09460985

Courtesy of NISSAN NORTH AMERICA, INC.

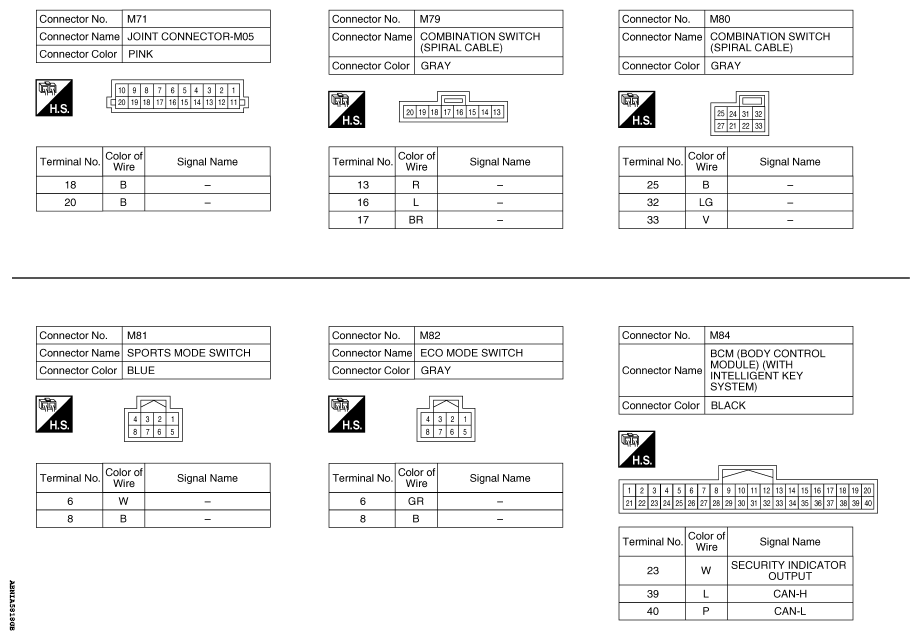

Fig 4: Meter System Connector End Views (4 Of 10)

G09460986

Courtesy of NISSAN NORTH AMERICA, INC.

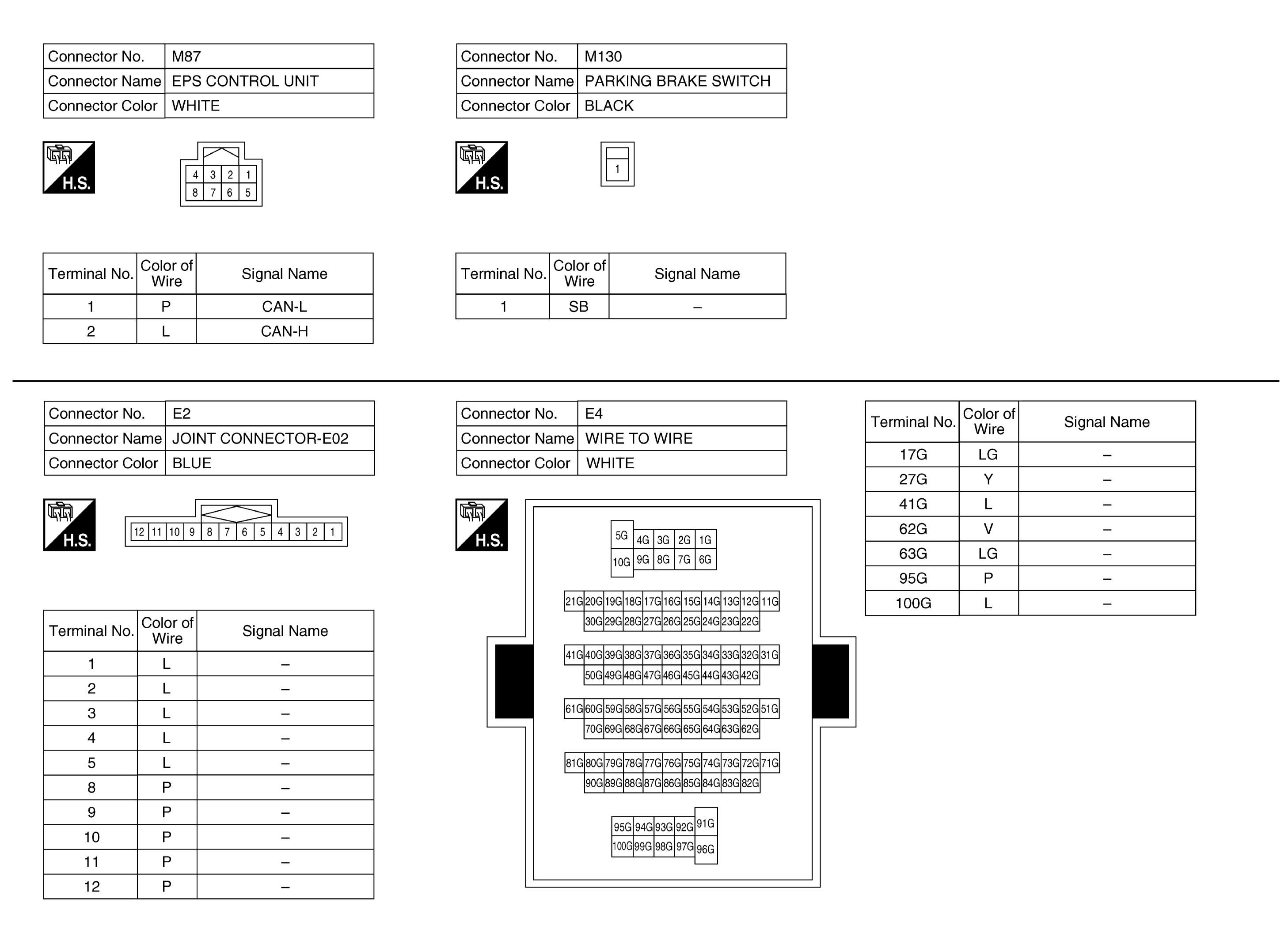

Fig 5: Meter System Connector End Views (5 Of 10)

G09460987

Courtesy of NISSAN NORTH AMERICA, INC.

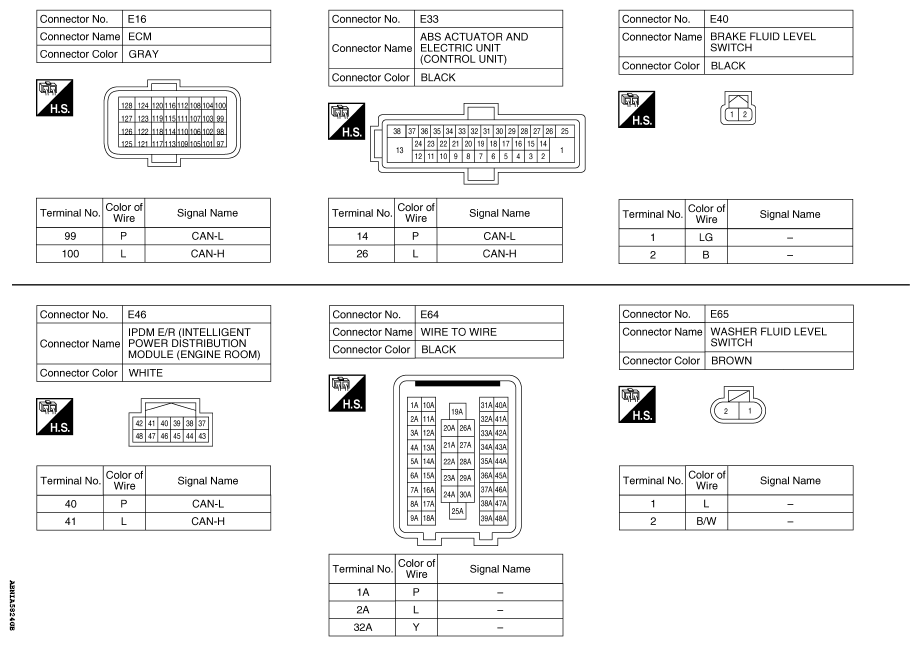

Fig 6: Meter System Connector End Views (6 Of 10)

G09460988

Courtesy of NISSAN NORTH AMERICA, INC.

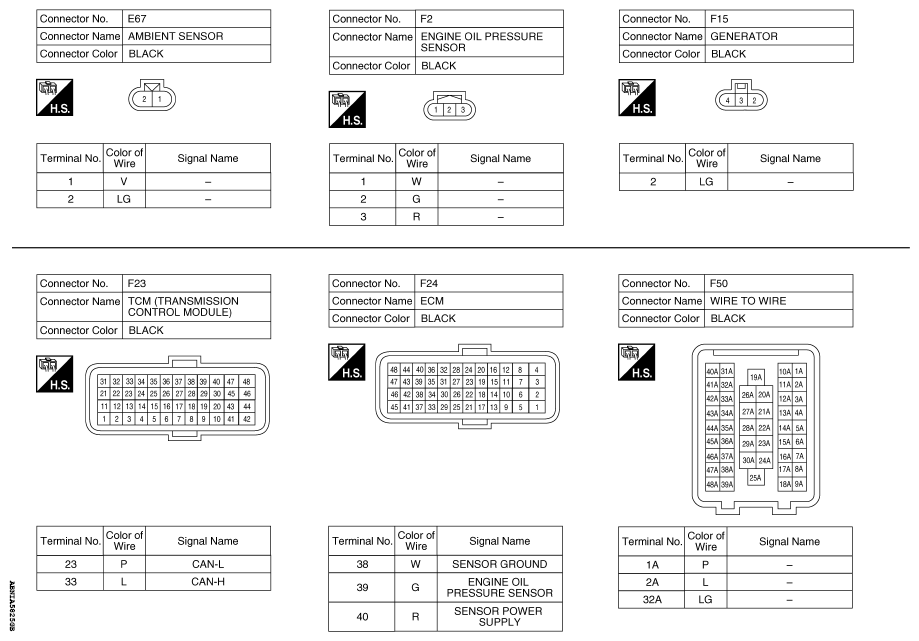

Fig 7: Meter System Connector End Views (7 Of 10)

G09460989

Courtesy of NISSAN NORTH AMERICA, INC.

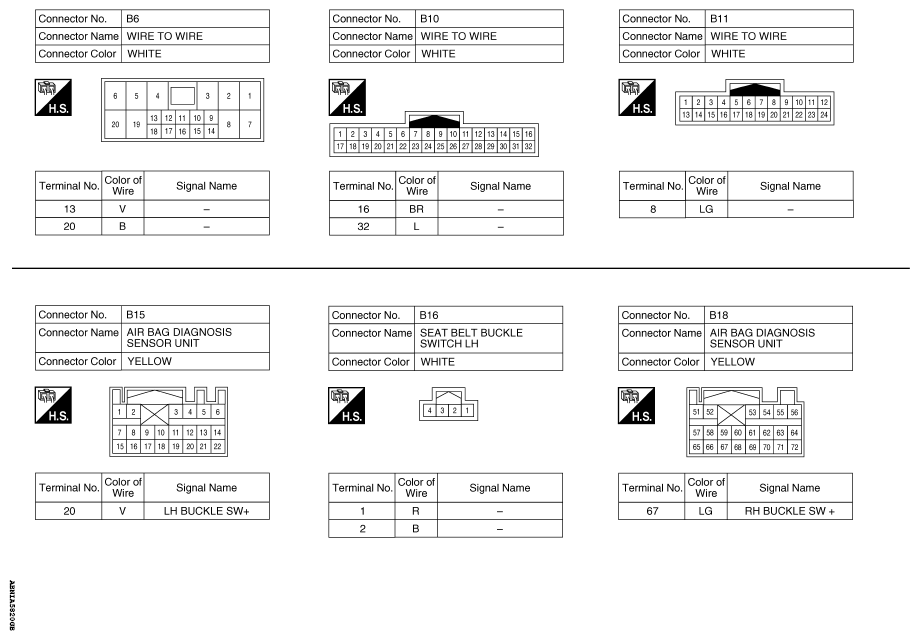

Fig 8: Meter System Connector End Views (8 Of 10)

G09460990

Courtesy of NISSAN NORTH AMERICA, INC.

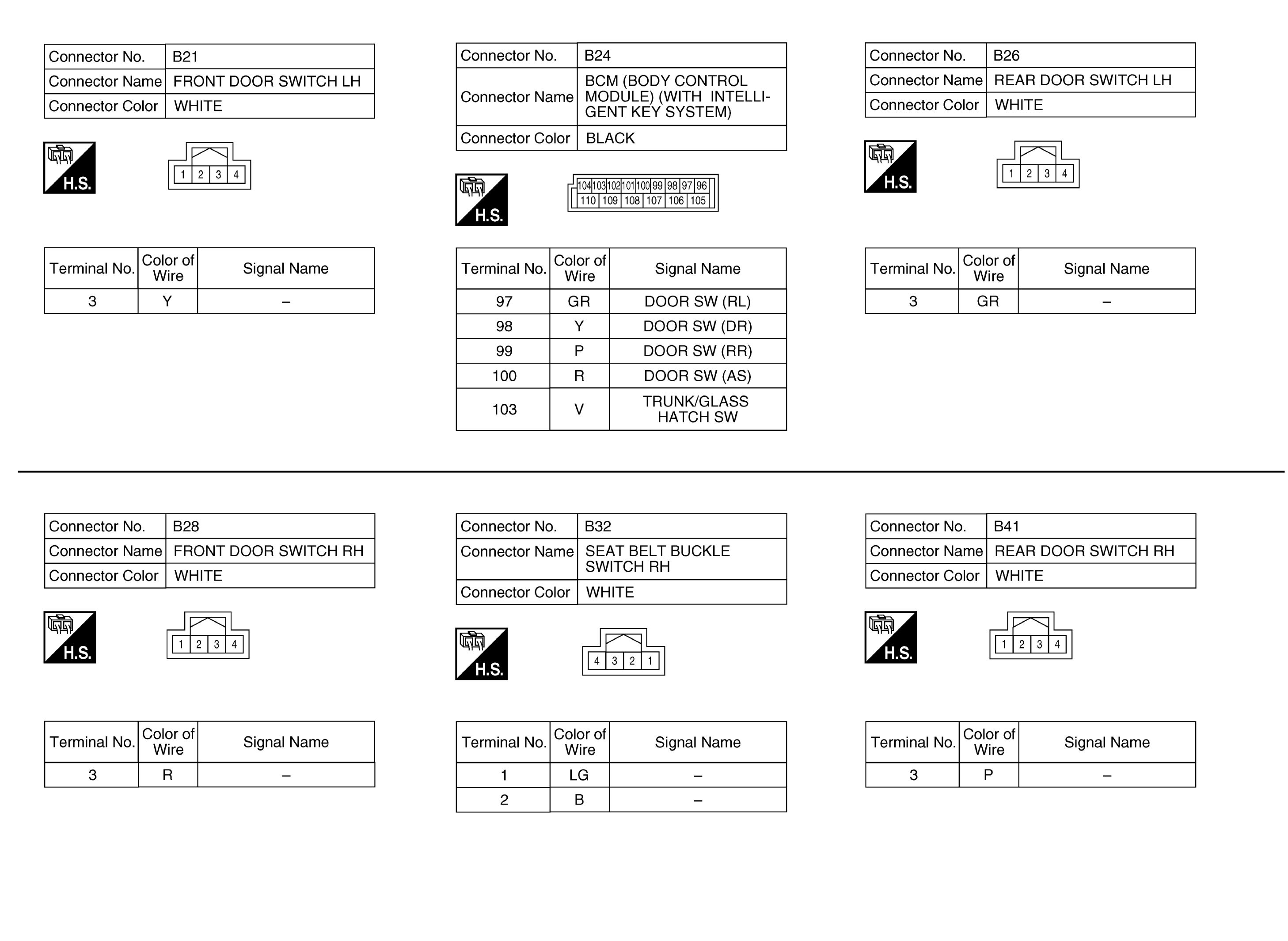

Fig 9: Meter System Connector End Views (9 Of 10)

G09460991

Courtesy of NISSAN NORTH AMERICA, INC.

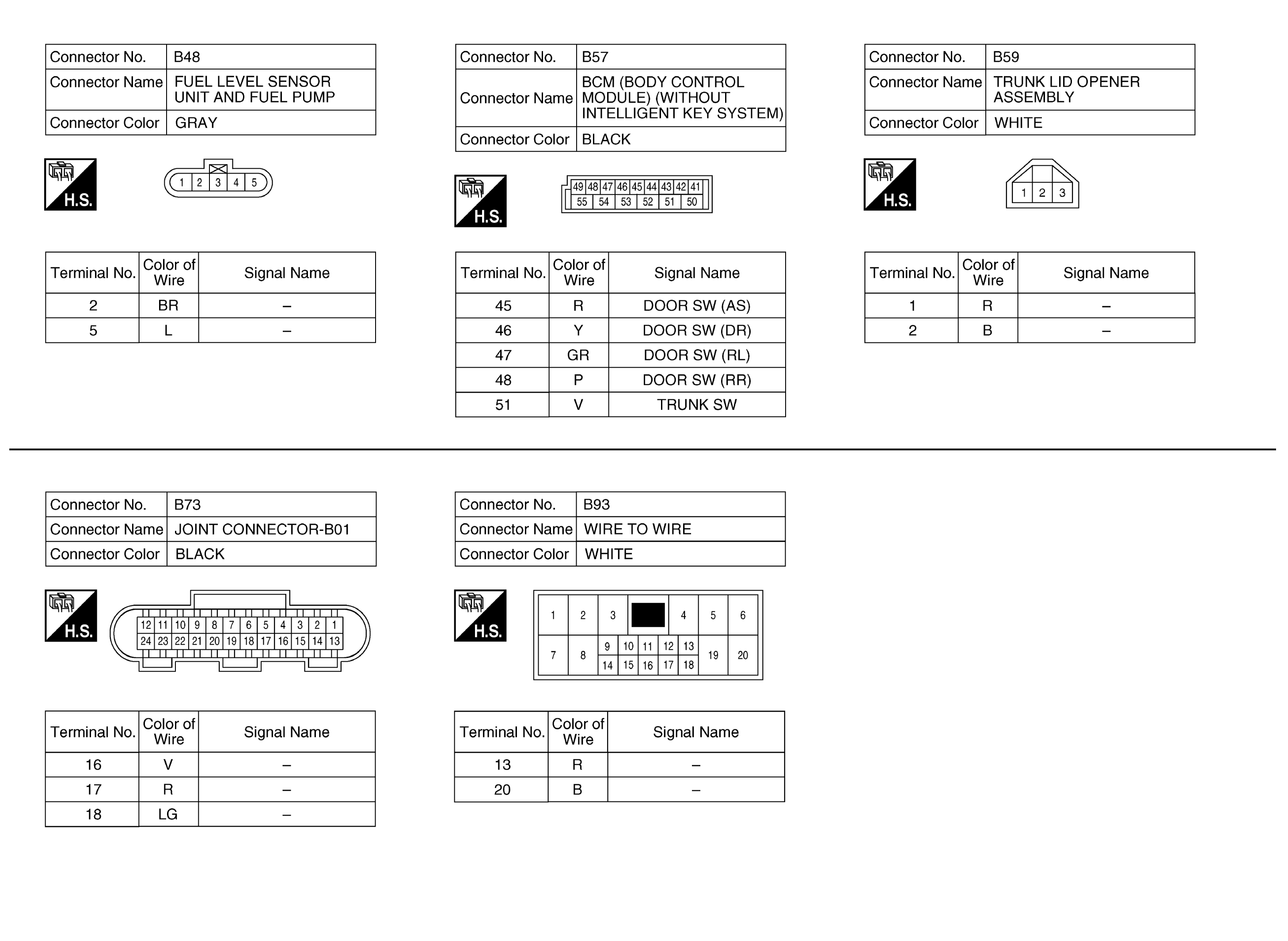

Fig 10: Meter System Connector End Views (10 Of 10)

G09460992

Courtesy of NISSAN NORTH AMERICA, INC.
