Component Parts Location

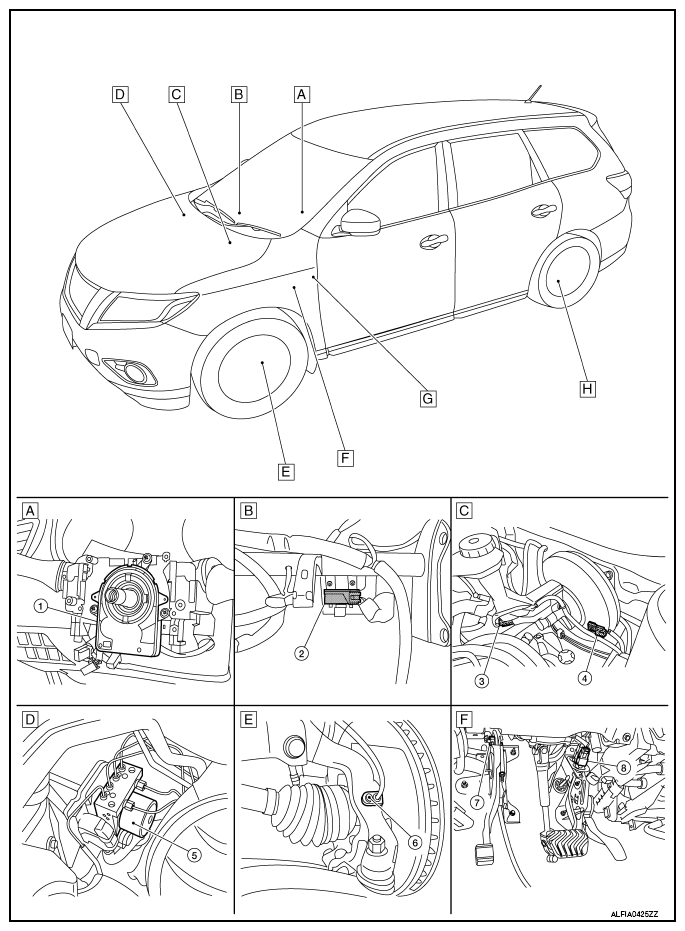

Fig 1: Brake Control System Component Parts Location
G09156602Courtesy of NISSAN NORTH AMERICA, INC.

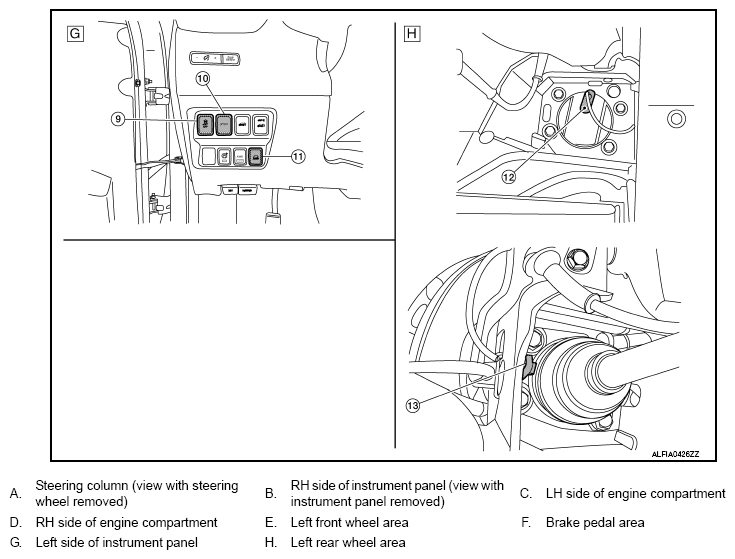

Fig 2: Brake Control System Component Parts Location
G09156603Courtesy of NISSAN NORTH AMERICA, INC.
No. Component parts Function
1. Steering angle sensor "STEERING ANGLE SENSOR "
2. Chassis control module Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.
  • Drive mode signal
  • Active Trace Control signal
  • Brake hold status signal
  • Brake hold request signal

Refer to "COMPONENT PARTS LOCATION " for detailed installation location.
3. Brake fluid level switch "BRAKE FLUID LEVEL SWITCH "
4. Vacuum sensor "VACUUM SENSOR "
5. ABS actuator and electric unit (control unit) "ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) "
6. Front LH wheel sensor "WHEEL SENSOR AND SENSOR ROTOR "
7. Parking brake switch "PARKING BRAKE SWITCH "
8. Stop lamp switch "PARKING BRAKE SWITCH "
9. VDC OFF switch "VDC OFF SWITCH "
10. Drive mode switch "SPORT MODE SWITCH "
11. Hill decent switch "HILL DESCENT CONTROL SWITCH "
12. Rear LH wheel sensor "WHEEL SENSOR AND SENSOR ROTOR "
13. Rear LH wheel sensor (with AWD) "WHEEL SENSOR AND SENSOR ROTOR "
