Component Parts Location

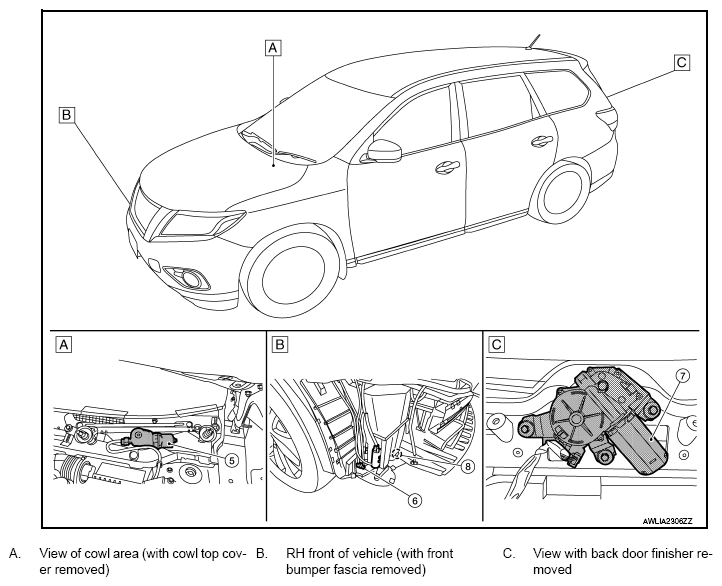

Fig 1: Wiper And Washer System Component Parts Location
G09157349Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
1. Combination switch (Wiper and washer switch) Refer to "FRONT WIPER AND WASHER SYSTEM: SYSTEM DESCRIPTION ".
Refer to "REMOVAL AND INSTALLATION ".
2. Combination meter Transmits the vehicle speed signal to BCM via CAN communication.
3. IPDM E/R
  • Controls the integrated relay according to the request (via CAN communication) from BCM.
  • Performs the auto stop control of the front wiper.

    Refer to "COMPONENT PARTS LOCATION ".
4. BCM
  • Judges each switch status by the combination switch reading function.
  • Requests (via CAN communication) the front wiper relay and the front wiper HI/LO relay ON to IPDM E/R.
  • Supplies power to the rear wiper motor.
  • Performs the auto stop control of the rear wiper.

    Refer to "COMPONENT PARTS LOCATION ".
5. Front wiper motor Refer to "FRONT WIPER MOTOR ".
6. Front and rear washer motor Refer to "WASHER PUMP ".
7. Rear wiper motor Refer to "REAR WIPER MOTOR ".
8. Washer Fluid Level Switch Transmits the washer fluid level switch signal to the combination meter.
