Removal and Installation: Removal

  1. Release instrument side finisher (LH) (1) pawls using a suitable tool and remove.

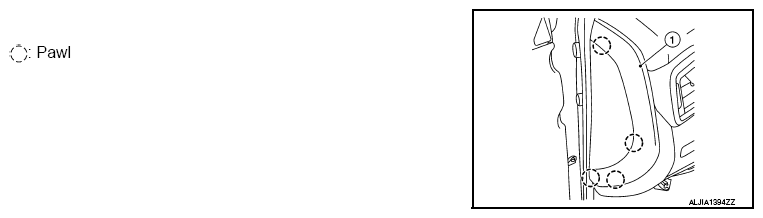

    Fig 1: Identifying Instrument Side Finisher (LH) Pawls
    G09158139Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove bolts (A) and fuel filler lid/hood lock release handle (1) from instrument lower panel LH.
    Fig 2: Identifying Fuel Filler Lid/Hood Lock Handle
    G09158140Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove data link cover from the instrument lower panel LH.
  4. Release the clip using a suitable tool and remove accessory connector (1) from instrument lower panel LH.

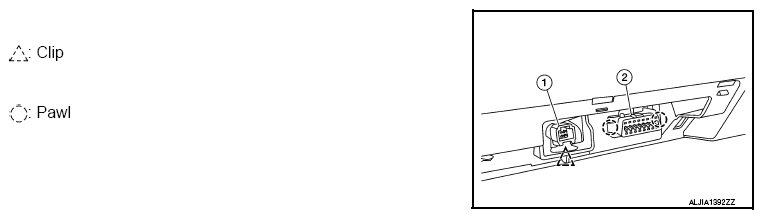

    Fig 3: Identifying Instrument Lower Panel LH Accessory Connector
    G09158141Courtesy of NISSAN NORTH AMERICA, INC.
  5. Release the pawls using a suitable tool and remove data link connector (2) from instrument lower panel LH.
  6. Release the clips and pawls using a suitable tool, disconnect the harness connector and remove instrument lower panel LH (1).

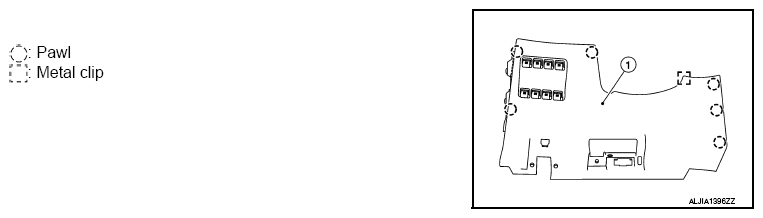

    Fig 4: Identifying Instrument Lower Panel LH
    G09158142Courtesy of NISSAN NORTH AMERICA, INC.
