Removal and Installation: Removal

  1. Release cluster lid C (1) clips and pawls using a suitable tool.

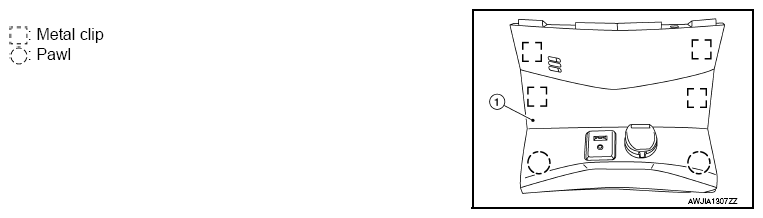

    Fig 1: Identifying Cluster Lid Clips And Pawls
    G09158138Courtesy of NISSAN NORTH AMERICA, INC.
  2. Disconnect the in-vehicle sensor hose from the cluster lid C.
  3. Disconnect the harness connectors from cluster lid C and remove.
