Removal and Installation: Removal

  1. Remove instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove instrument finisher A. Refer to "INSTRUMENT FINISHER A: REMOVAL AND INSTALLATION ".
  3. Remove instrument finisher B. Refer to "INSTRUMENT FINISHER B: REMOVAL AND INSTALLATION ".
  4. Release gap hider (1) pawls from the steering column upper cover (2).

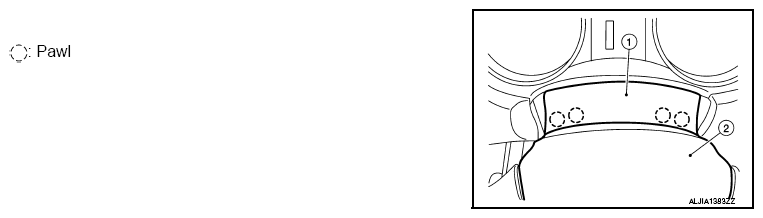

    Fig 1: Identifying Steering Column Upper Cover And Gap Hider Pawls
    G09158135Courtesy of NISSAN NORTH AMERICA, INC.
  5. Release pawls using a suitable tool and remove cluster lid A.

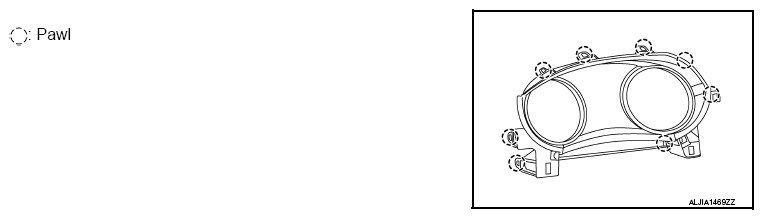

    Fig 2: Identifying Cluster Lid Pawls
    G09158136Courtesy of NISSAN NORTH AMERICA, INC.
