Component Inspection

  1. CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP (FUEL LEVEL SENSOR)
    1. Remove the fuel level sensor unit and fuel pump (fuel level sensor). Refer to "REMOVAL AND INSTALLATION ".
    2. Check the resistance between fuel level sensor unit and fuel pump (fuel level sensor).
      Terminals Condition Resistance (Ω) (Approx.) Height [mm (in)]
      Fuel level sensor unit and fuel pump (fuel level sensor)
      2 8 Full(1) (A) 45 171.4 (6.7)
      Empty(1) (B) 141 20.5 (0.8)
      5 7 - 0 -
      (1) When float rod is contact with stopper.

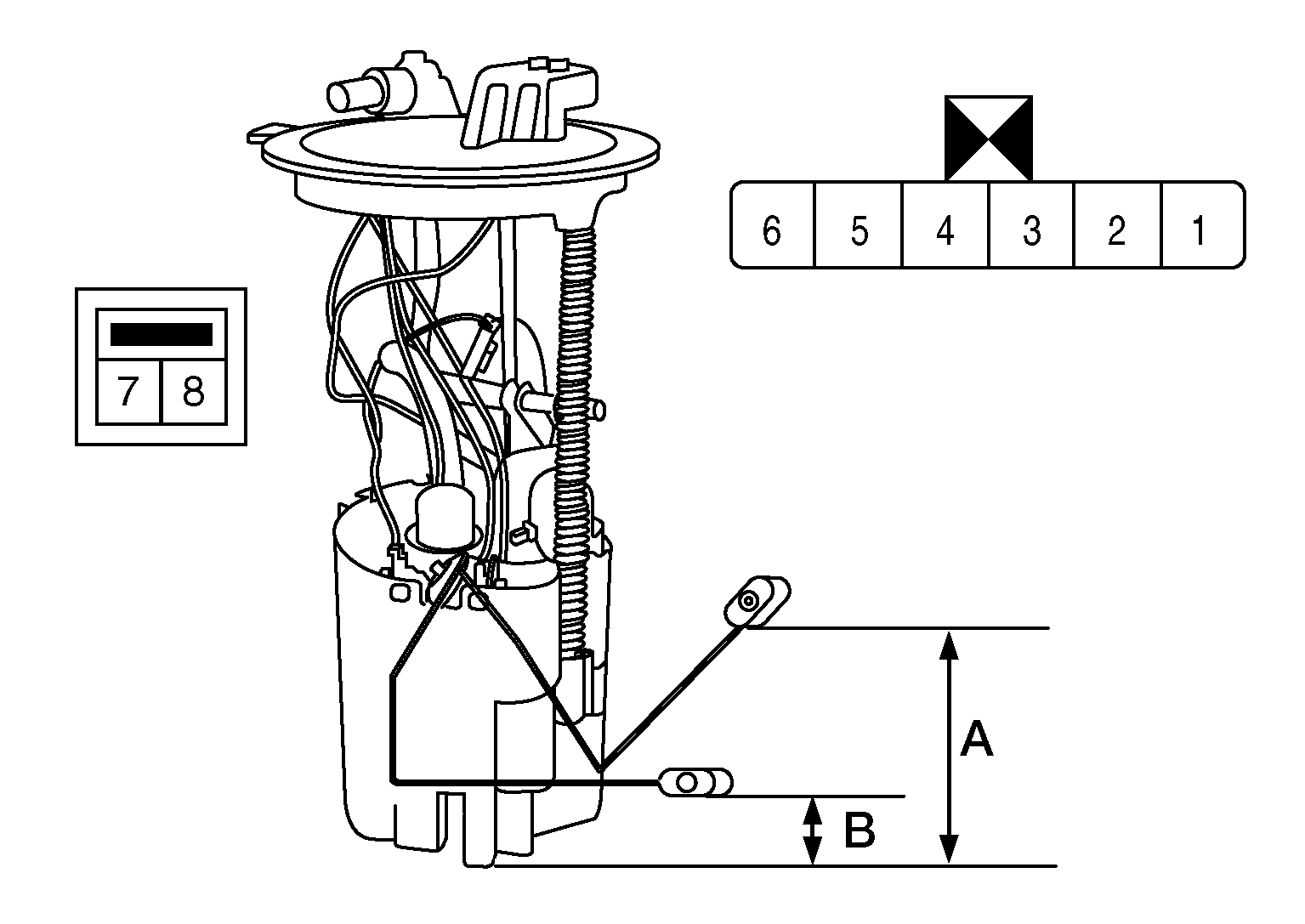

      Fig 1: Identifying Fuel Level Sensor Unit Float Full And Empty Condition
      G09157778Courtesy of NISSAN NORTH AMERICA, INC.

      Is the inspection result normal?

      YES: GO TO 2.

      NO: Replace fuel level sensor unit and fuel pump (fuel level sensor). Refer to "REMOVAL AND INSTALLATION ".

  2. CHECK FUEL LEVEL SENSOR UNIT (SUB)
    1. Remove the fuel level sensor unit (sub). Refer to "REMOVAL AND INSTALLATION ".
    2. Check the resistance between fuel level sensor unit (sub).
      Terminals Condition Resistance (Ω) (Approx.) Height [mm (in)]
      Fuel level sensor unit (sub)
      7 8 Full(1) (A) 6.0 194.1 (7.6)
      Empty(1) (B) 141 18 (0.7)
      (1) When float rod is contact with stopper.
      Fig 2: Identifying Fuel Level Sensor Unit (SUB) Full And Empty Condition
      G09157779Courtesy of NISSAN NORTH AMERICA, INC.

      Is the inspection result normal?

      YES: Inspection End.

      NO: Replace fuel level sensor unit (sub). Refer to "REMOVAL AND INSTALLATION ".
