Removal and Installation: Removal

  1. Release gap hider (1) pawls from the steering column upper cover (2).

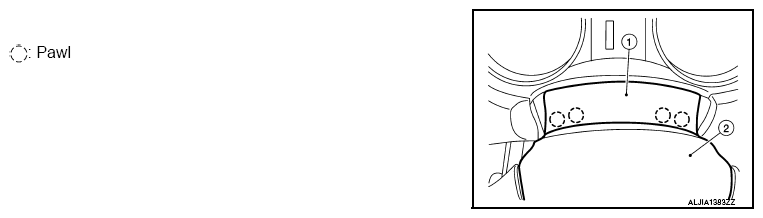

    Fig 1: Identifying Steering Column Upper Cover And Gap Hider Pawls
    G09158129Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove steering column cover screws (A)
    NOTE: Rotate steering wheel to access steering column cover screws.
  3. Release steering column upper cover (1) pawls using a suitable tool and remove.

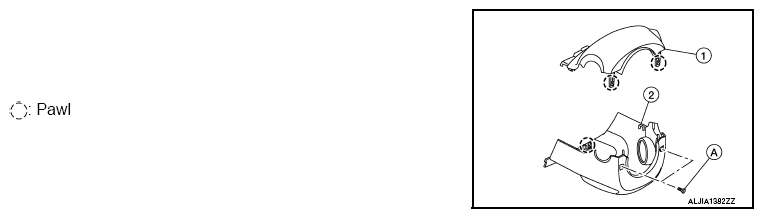

    Fig 2: Identifying Steering Column Upper And Lower Cover And Steering Column Cover Screws
    G09158130Courtesy of NISSAN NORTH AMERICA, INC.
  4. Release steering column lower cover (2) pawl using a suitable tool and remove.
