Removal and Installation: Removal

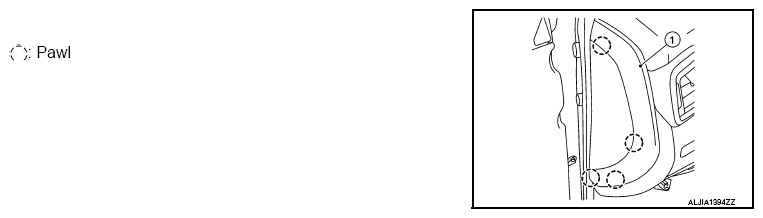

Release instrument side finisher (RH) (1) pawls using a suitable tool and remove.

Fig 1: Identifying Instrument Side Finisher (RH) Pawls
Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: LH side shown above; RH similar.

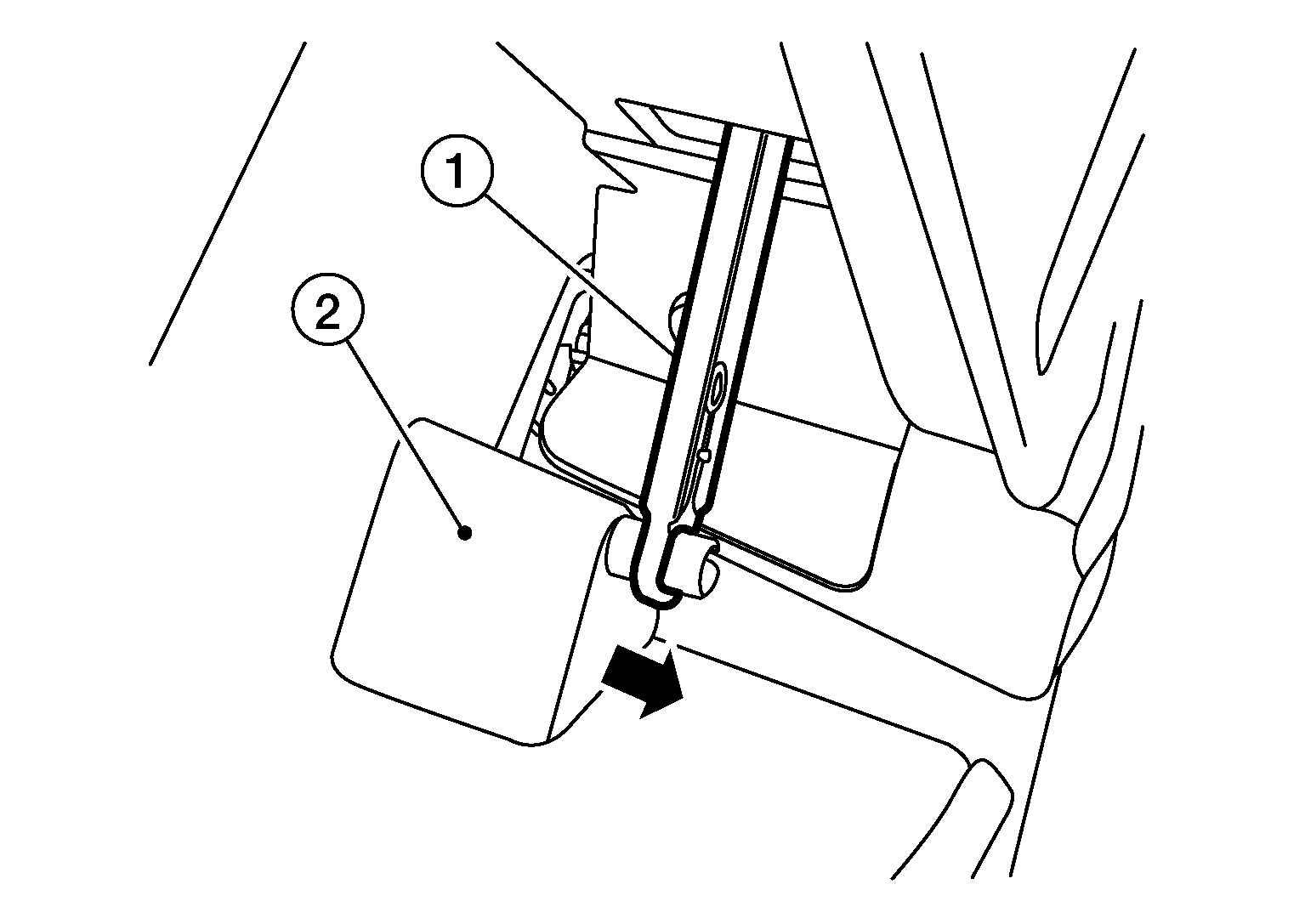

Release the glove box damper (1) from the glove box assembly (2) as shown below.

Fig 2: Releasing Glove Box Damper And Glove Box Assembly
Courtesy of NISSAN NORTH AMERICA, INC.

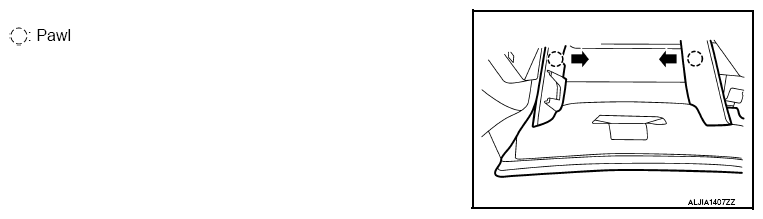

Release the glove box assembly pawls as shown below.

Fig 3: Releasing Glove Box Assembly Pawls
Courtesy of NISSAN NORTH AMERICA, INC.

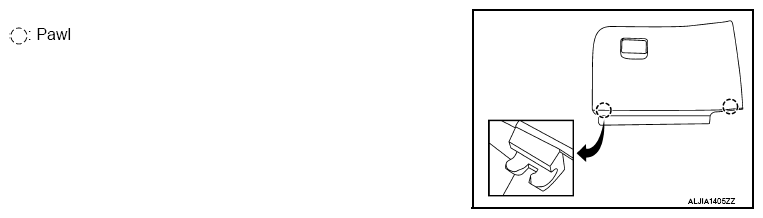

Release the pawls and remove the glove box assembly.

Fig 4: Identifying Glove Box Assembly Pawls
Courtesy of NISSAN NORTH AMERICA, INC.
Remove instrument finisher E. Refer to "INSTRUMENT FINISHER E: REMOVAL AND INSTALLATION ".
Remove audio unit (DISPLAY AUDIO). Refer to "REMOVAL AND INSTALLATION "
Remove AV control unit. Refer to "REMOVAL AND INSTALLATION " (NAVIGATION WITHOUT BOSE) or "REMOVAL AND INSTALLATION " (NAVIGATION WITH BOSE).
Remove front air control or A/C switch assembly. Refer to "REMOVAL AND INSTALLATION " (MANUAL AIR CONDITIONING) or "REMOVAL AND INSTALLATION " (AUTOMATIC AIR CONDITIONING).

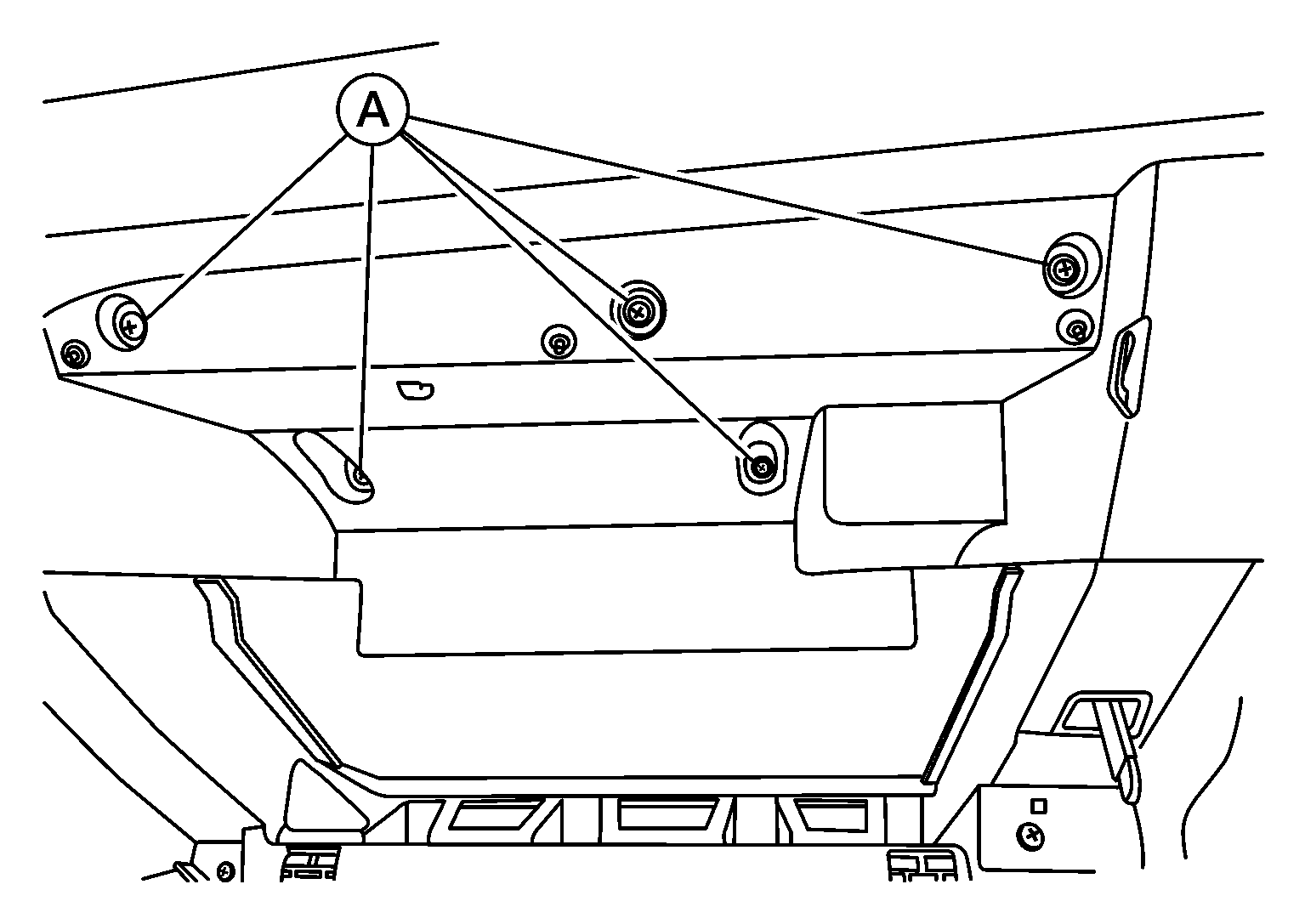

Remove the glove box housing screws (A).

Fig 5: Identifying Glove Box Housing Screws
Courtesy of NISSAN NORTH AMERICA, INC.

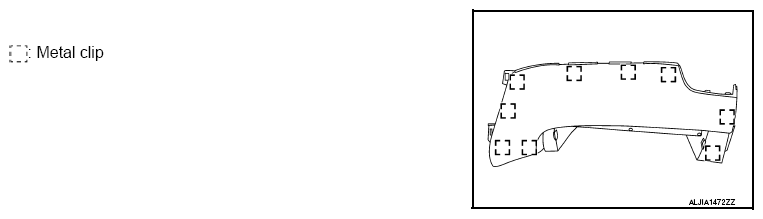

Release the clips using a suitable tool, disconnect the harness connector and remove glove box housing.

Fig 6: Identifying Glove Box Housing Clips
Courtesy of NISSAN NORTH AMERICA, INC.
