Removal and Installation: Removal

  1. Release clips and pawls using a suitable tool and remove center console side finisher (1) (LH/RH).
    Fig 1: Identifying Center Console Side Finisher (LH/RH)
    G09158132Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: RH side shown above; LH similar.
  2. Remove shift selector knob. Refer to "EXPLODED VIEW ".
  3. Remove cluster lid C. Refer to "REMOVAL AND INSTALLATION ".
  4. Release clips using a suitable tool and remove center console rear finisher (1).
    Fig 2: Identifying Center Console Rear Finisher
    G09158133Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove center console screws (A).

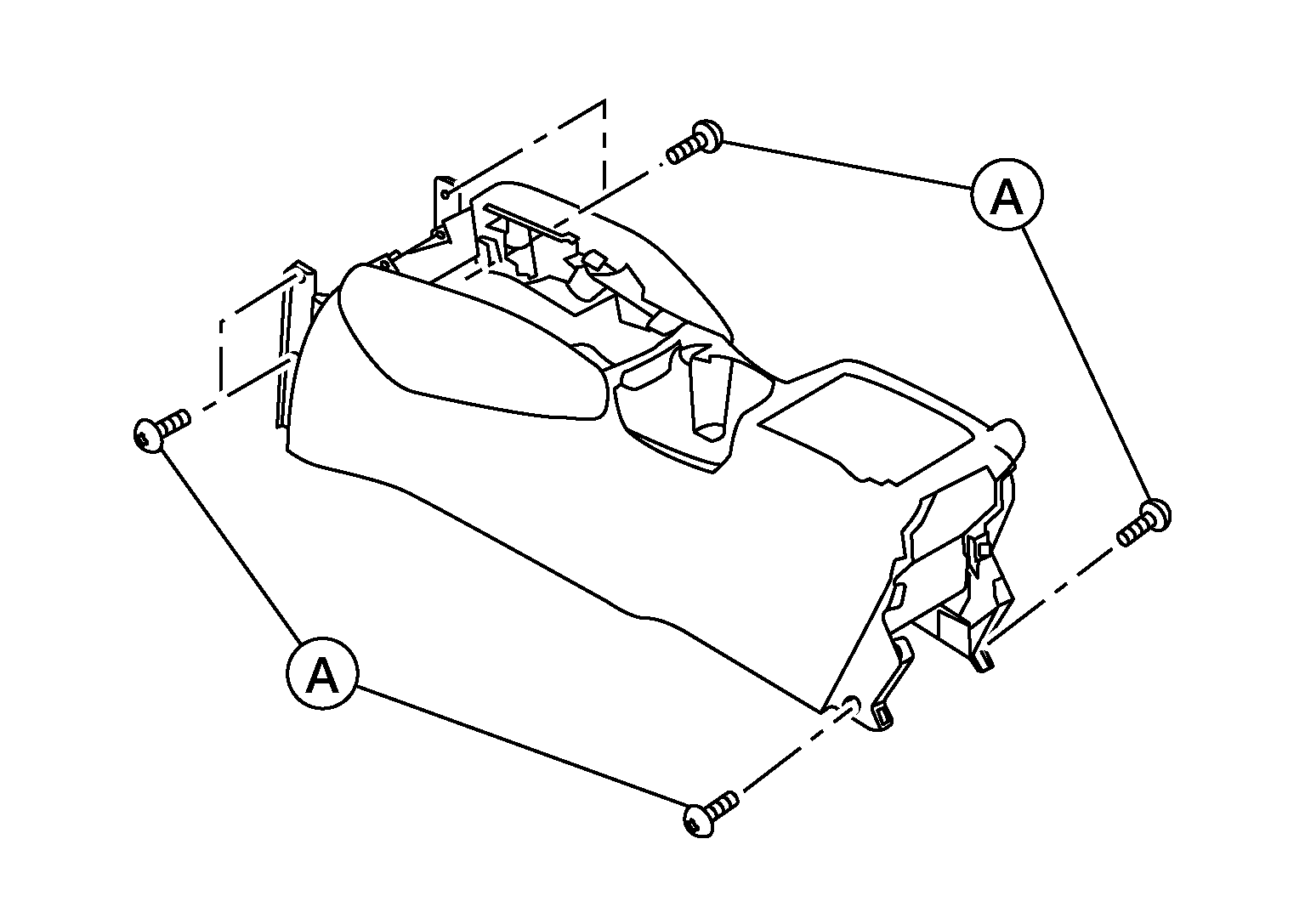

    Fig 3: Identifying Center Console Screws
    G09158134Courtesy of NISSAN NORTH AMERICA, INC.
  6. Disconnect the harness connectors and remove center console.
