Connector End Views

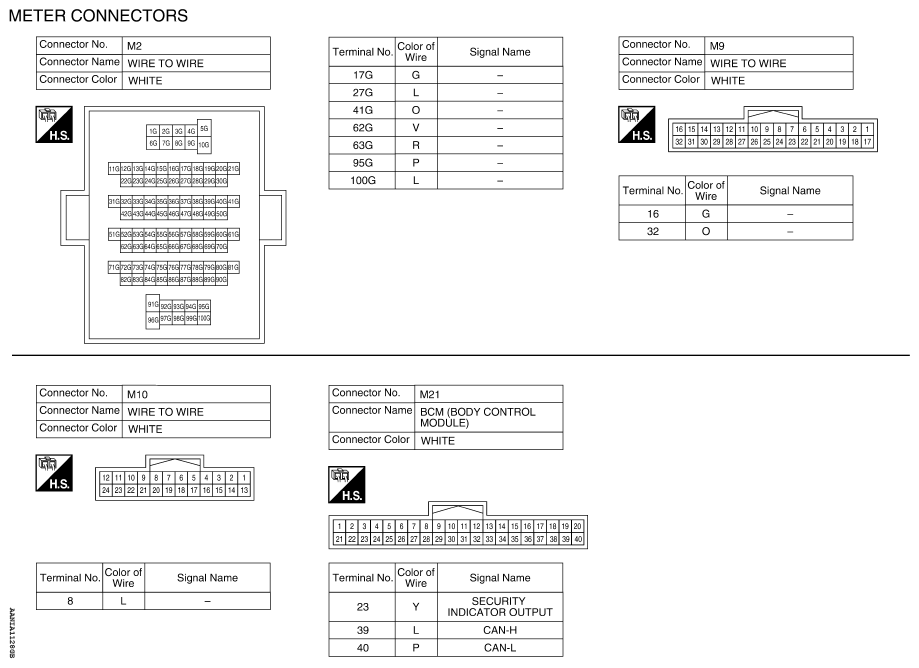

Fig 1: Meter Connector End Views (1 Of 11)

G08991880

Courtesy of NISSAN NORTH AMERICA, INC.

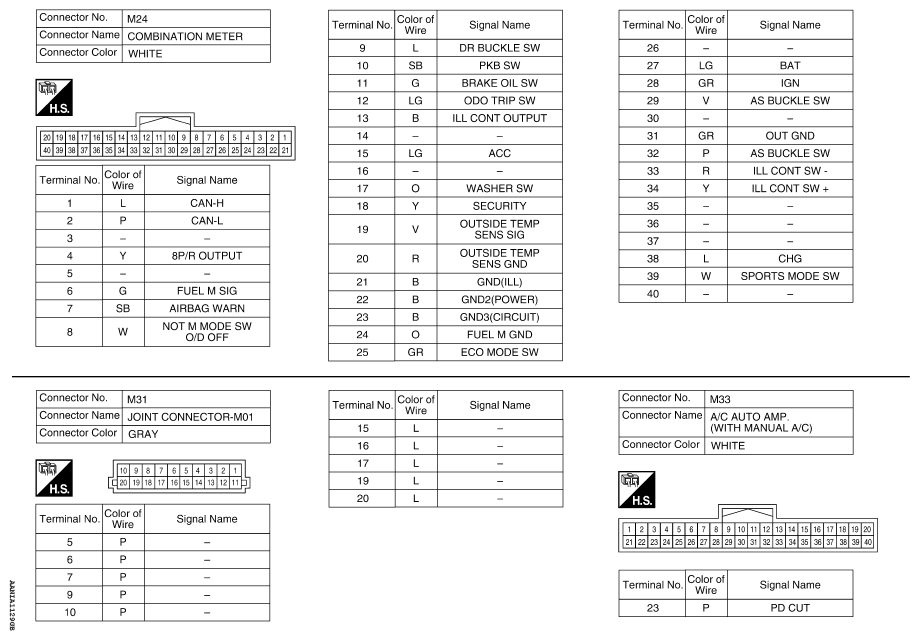

Fig 2: Meter Connector End Views (2 Of 11)

G08991881

Courtesy of NISSAN NORTH AMERICA, INC.

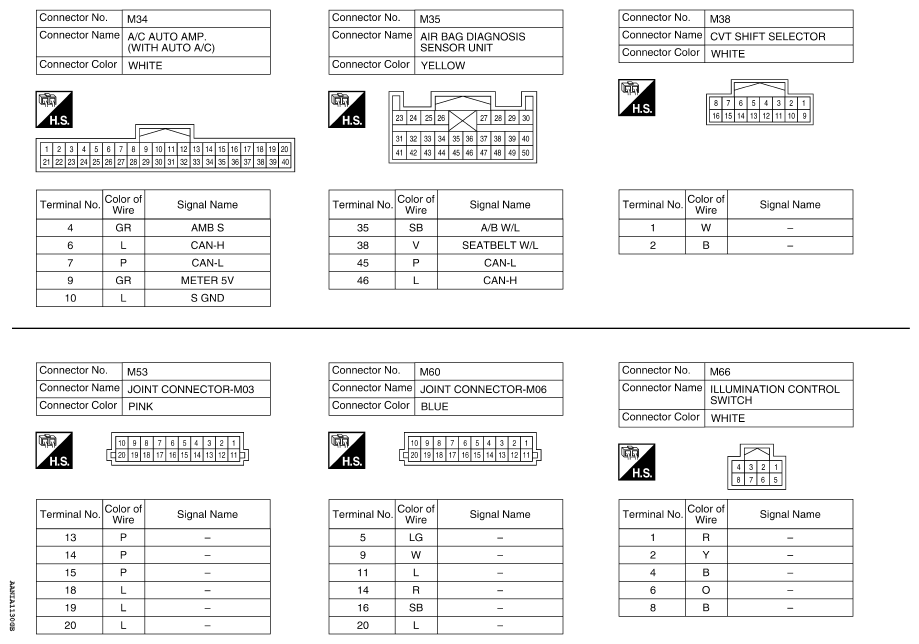

Fig 3: Meter Connector End Views (3 Of 11)

G08991882

Courtesy of NISSAN NORTH AMERICA, INC.

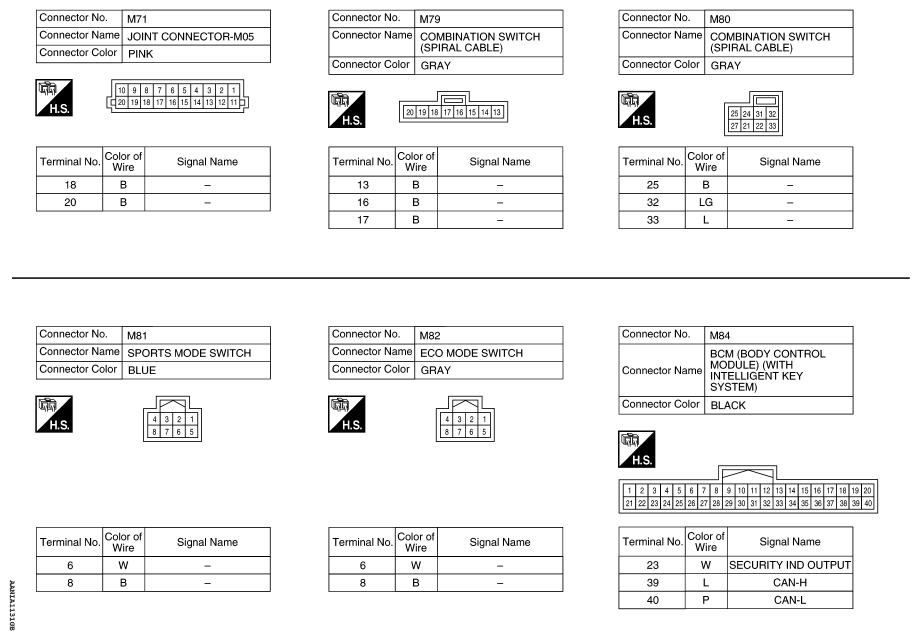

Fig 4: Meter Connector End Views (4 Of 11)

G08991883

Courtesy of NISSAN NORTH AMERICA, INC.

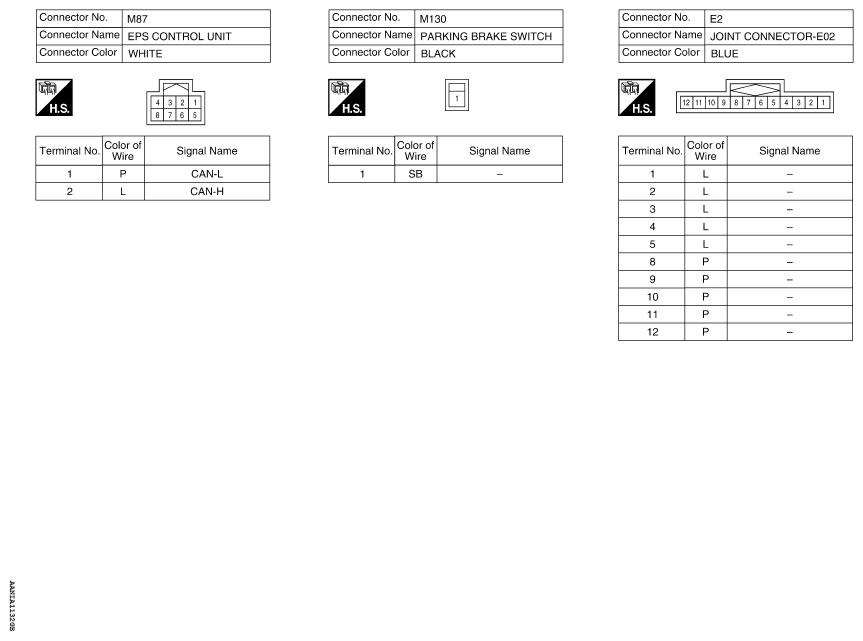

Fig 5: Meter Connector End Views (5 Of 11)

G08991884

Courtesy of NISSAN NORTH AMERICA, INC.

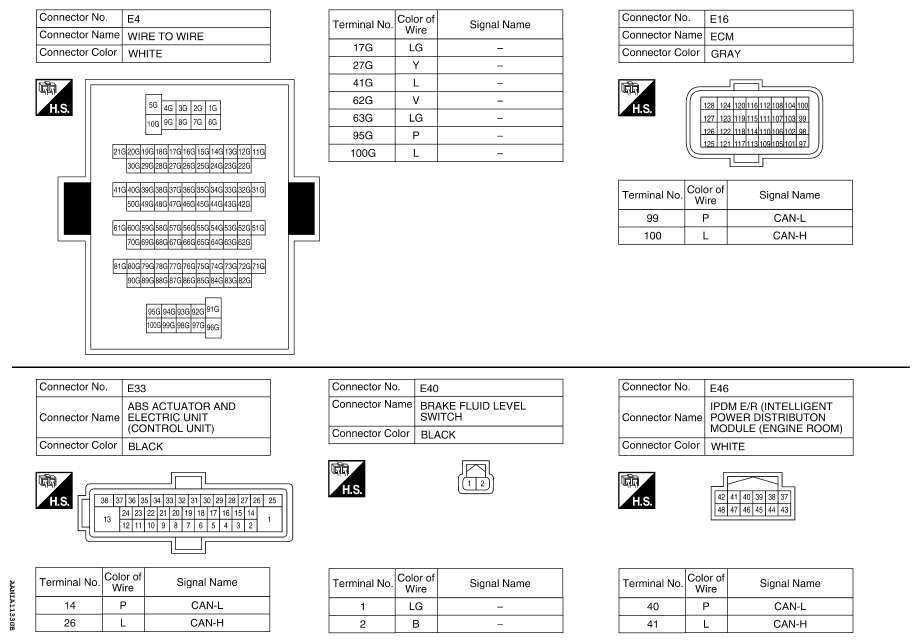

Fig 6: Meter Connector End Views (6 Of 11)

G08991885

Courtesy of NISSAN NORTH AMERICA, INC.

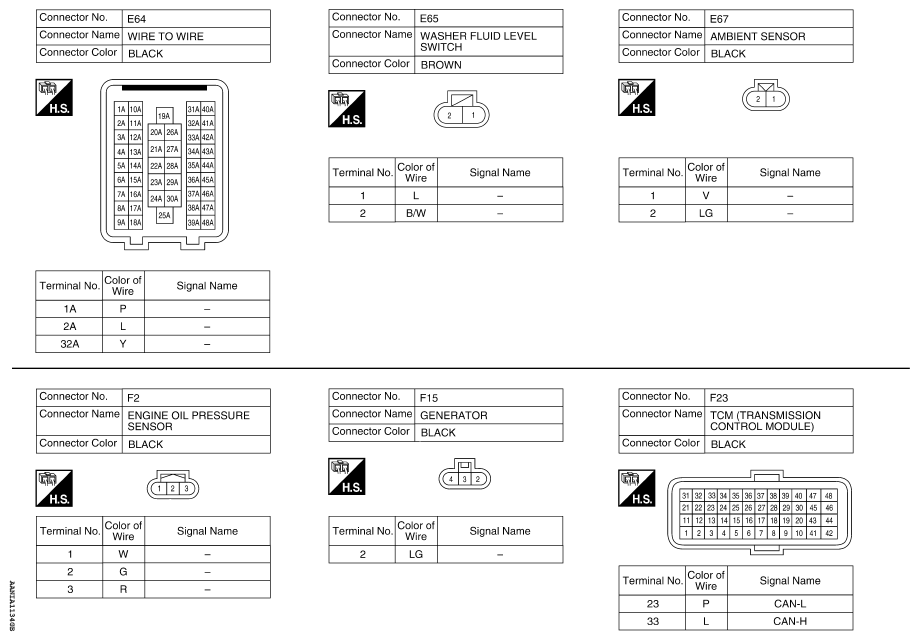

Fig 7: Meter Connector End Views (7 Of 11)

G08991886

Courtesy of NISSAN NORTH AMERICA, INC.

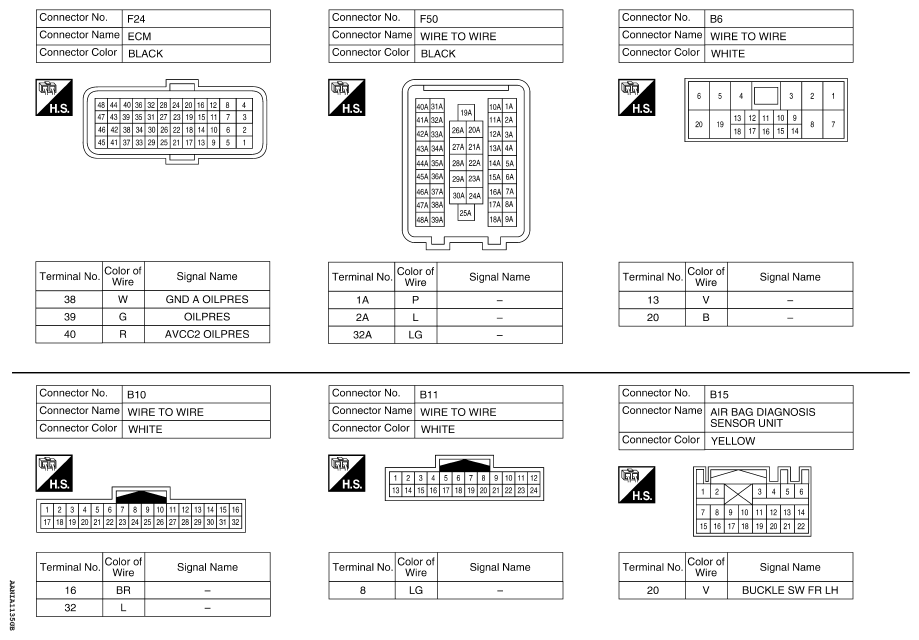

Fig 8: Meter Connector End Views (8 Of 11)

G08991887

Courtesy of NISSAN NORTH AMERICA, INC.

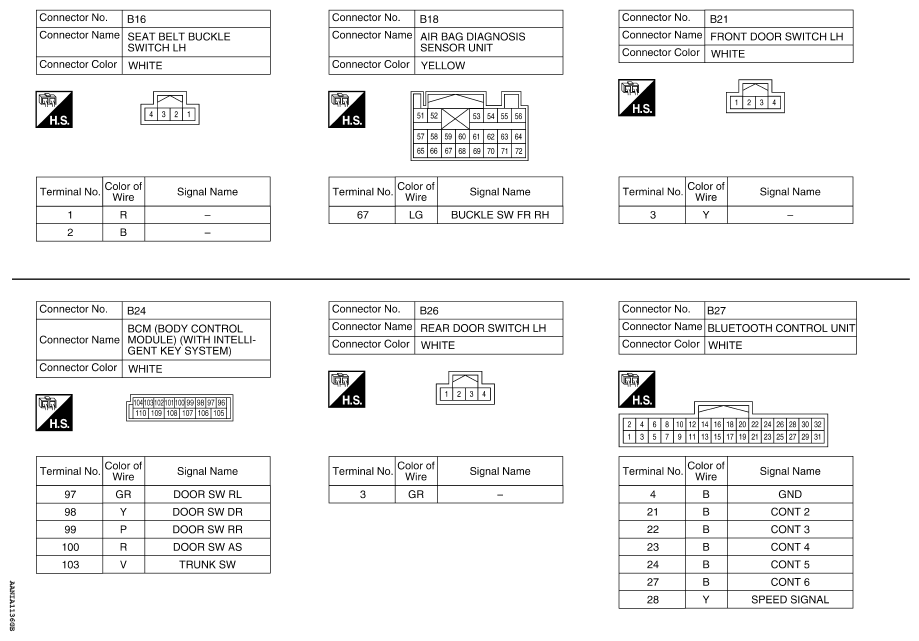

Fig 9: Meter Connector End Views (9 Of 11)

G08991888

Courtesy of NISSAN NORTH AMERICA, INC.

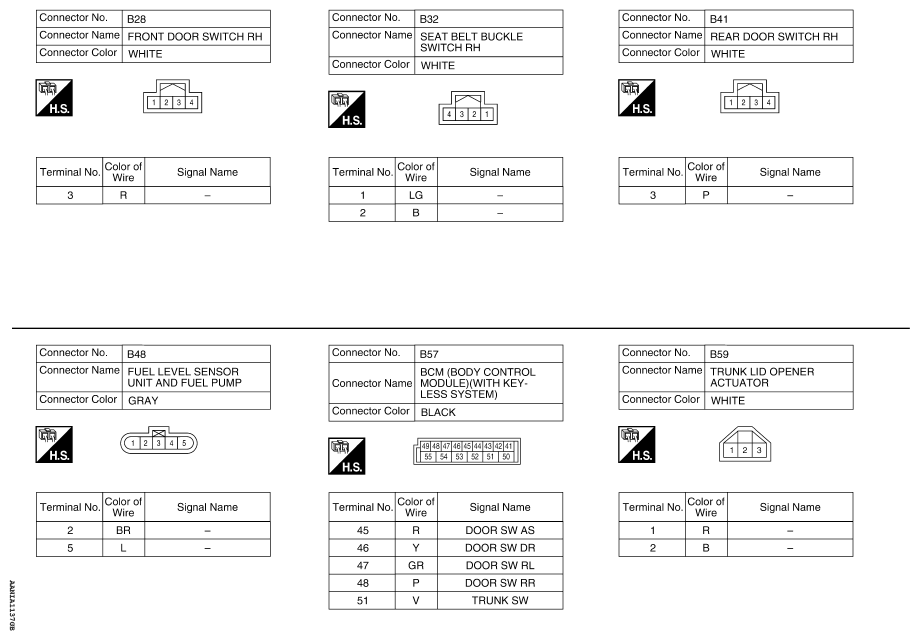

Fig 10: Meter Connector End Views (10 Of 11)

G08991889

Courtesy of NISSAN NORTH AMERICA, INC.

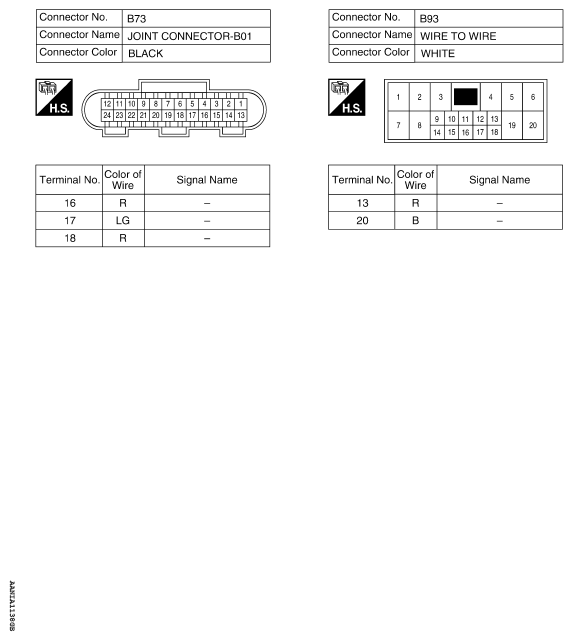

Fig 11: Meter Connector End Views (11 Of 11)

G08991890

Courtesy of NISSAN NORTH AMERICA, INC.
