Home >> Nissan-Datsun >> 2013 >> Sentra SL >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel >> Removal And Installation >> Steering Column Covers >> Removal and Installation >> Removal

Removal and Installation: Removal

  1. Remove the steering column cover screws (A), then remove the steering column upper (1) and lower (2) covers.
    NOTE:
    • Shown with steering wheel removed for clarity.
    • If necessary, rotate steering wheel to access steering column cover screws (A).

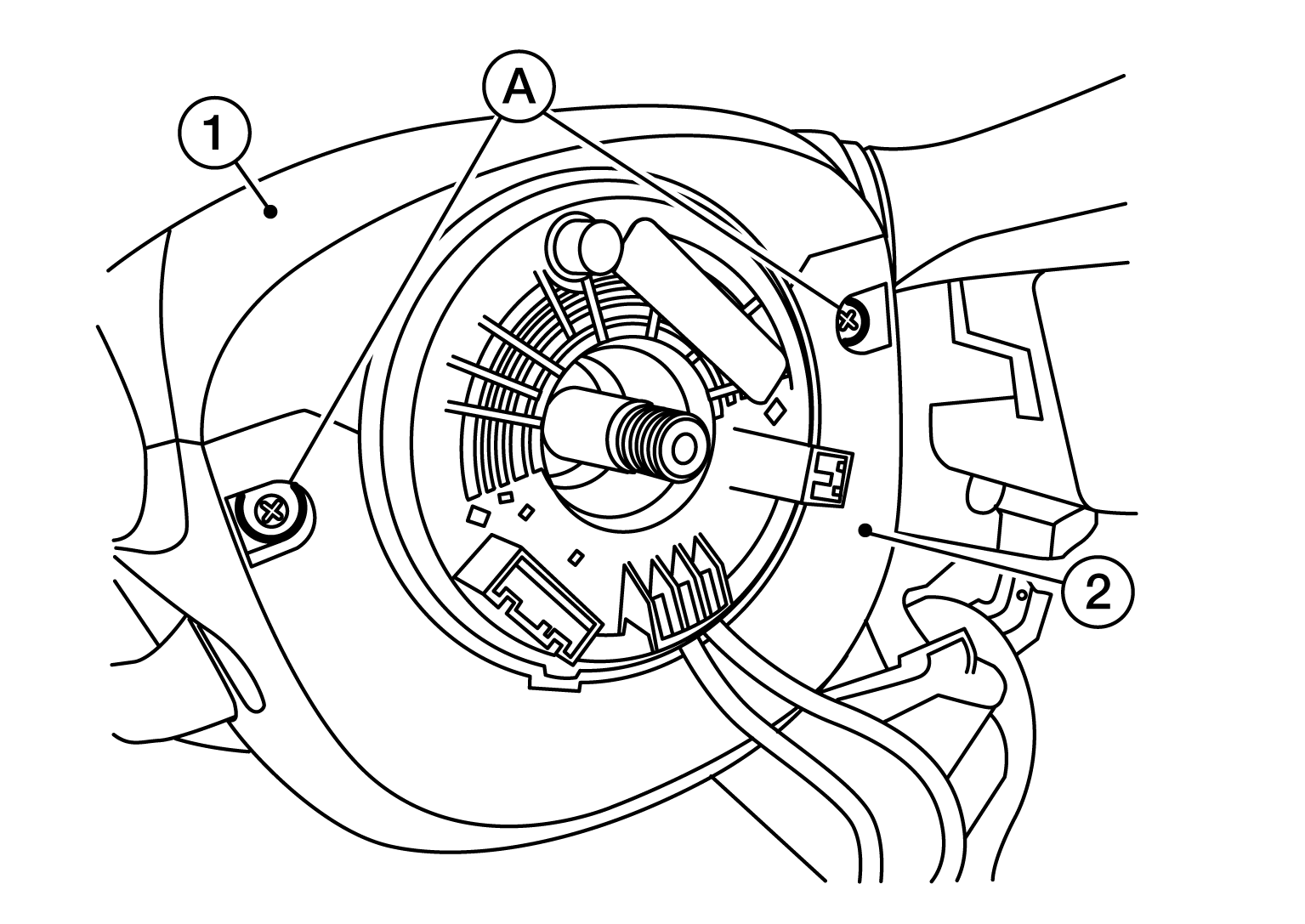

    Fig 1: Identifying Steering Upper, Lower Cover And Screws
    G08990610Courtesy of NISSAN NORTH AMERICA, INC.
