Descriptions for Clips

Replace any clips which are damaged during removal or installation.

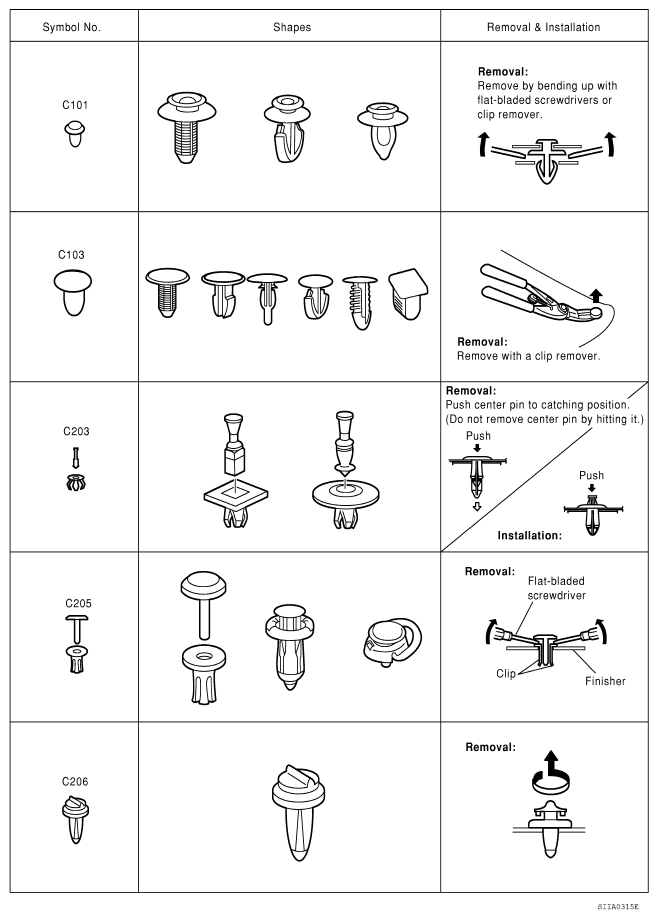

Fig 1: Clips Removal And Installation Chart (1 Of 4)
G08990600Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Clips Removal And Installation Chart (2 Of 4)
G08990601Courtesy of NISSAN NORTH AMERICA, INC.

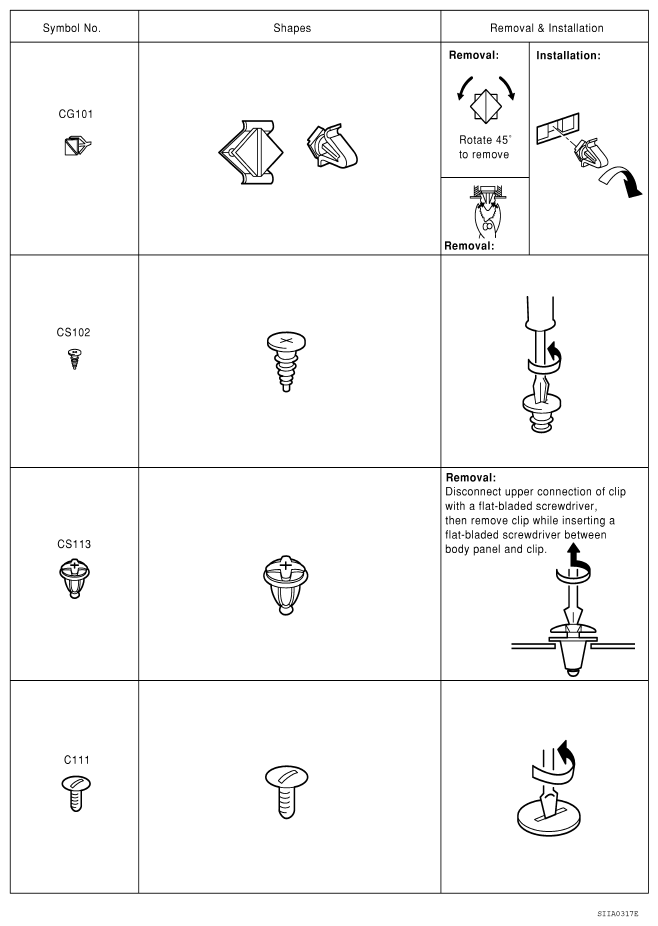

Fig 3: Clips Removal And Installation Chart (3 Of 4)
G08990602Courtesy of NISSAN NORTH AMERICA, INC.

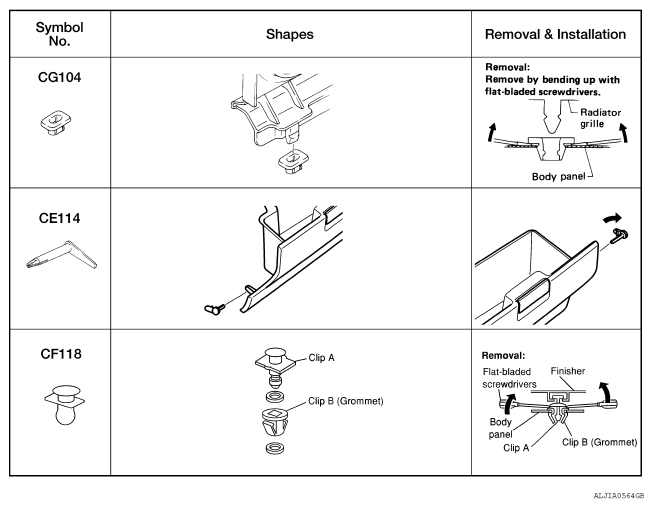

Fig 4: Clips Removal And Installation Chart (4 Of 4)
G08990603Courtesy of NISSAN NORTH AMERICA, INC.
