System Description
>>
System (Meter System)
>>
Meter System
>>
METER SYSTEM: System Diagram
METER SYSTEM: System Diagram

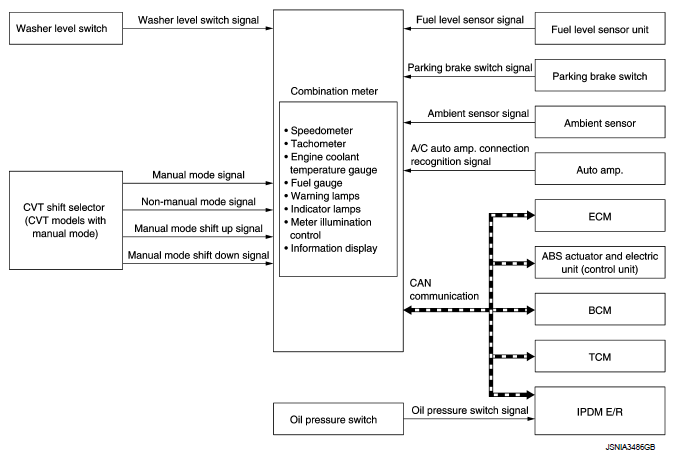

Fig 1: Meter System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
