Meter, Warning Lamp & Indicator
>>
System Description
>>
System (Meter System)
>>
Master Warning Lamp
>>
MASTER WARNING LAMP: System Diagram
MASTER WARNING LAMP: System Diagram

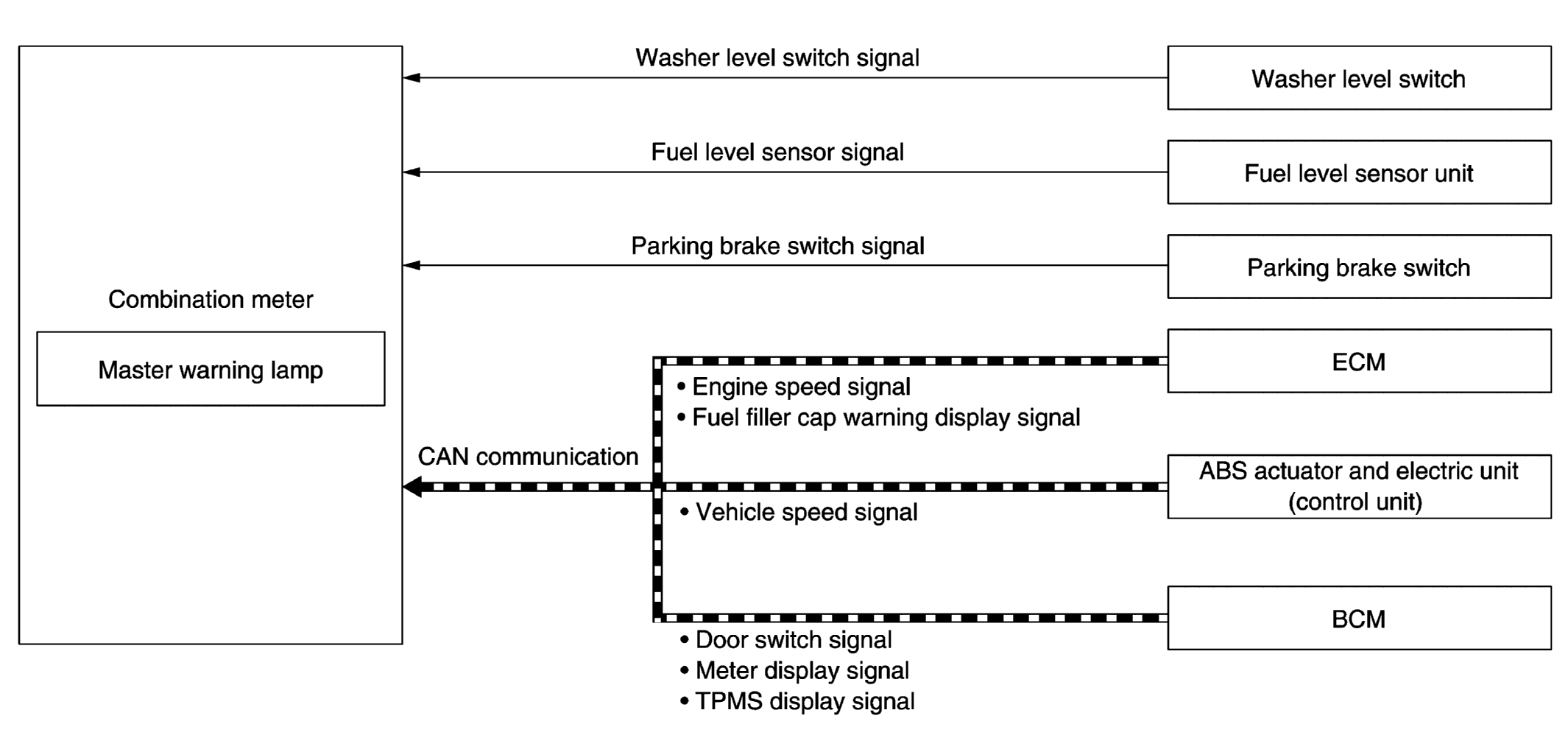

Fig 1: Master Warning Lamp System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
