Method Of Starting

Turn ignition switch OFF.
Turn ON the ignition switch with the trip reset switch (1) pressed.
"TEST" is indicated in the top portion of the information display after a lapse of 6 seconds after the ignition switch is turned ON.
When the pressed trip reset switch is released within 3 seconds after the "TEST" indication, "WI code XX" is indicated in the top portion of the information display and On board diagnosis is started.
NOTE: On board diagnosis does not start if the trip reset switch is pressed for 3 seconds or more.

The mode switches in the order shown below each time the trip reset switch is pressed.

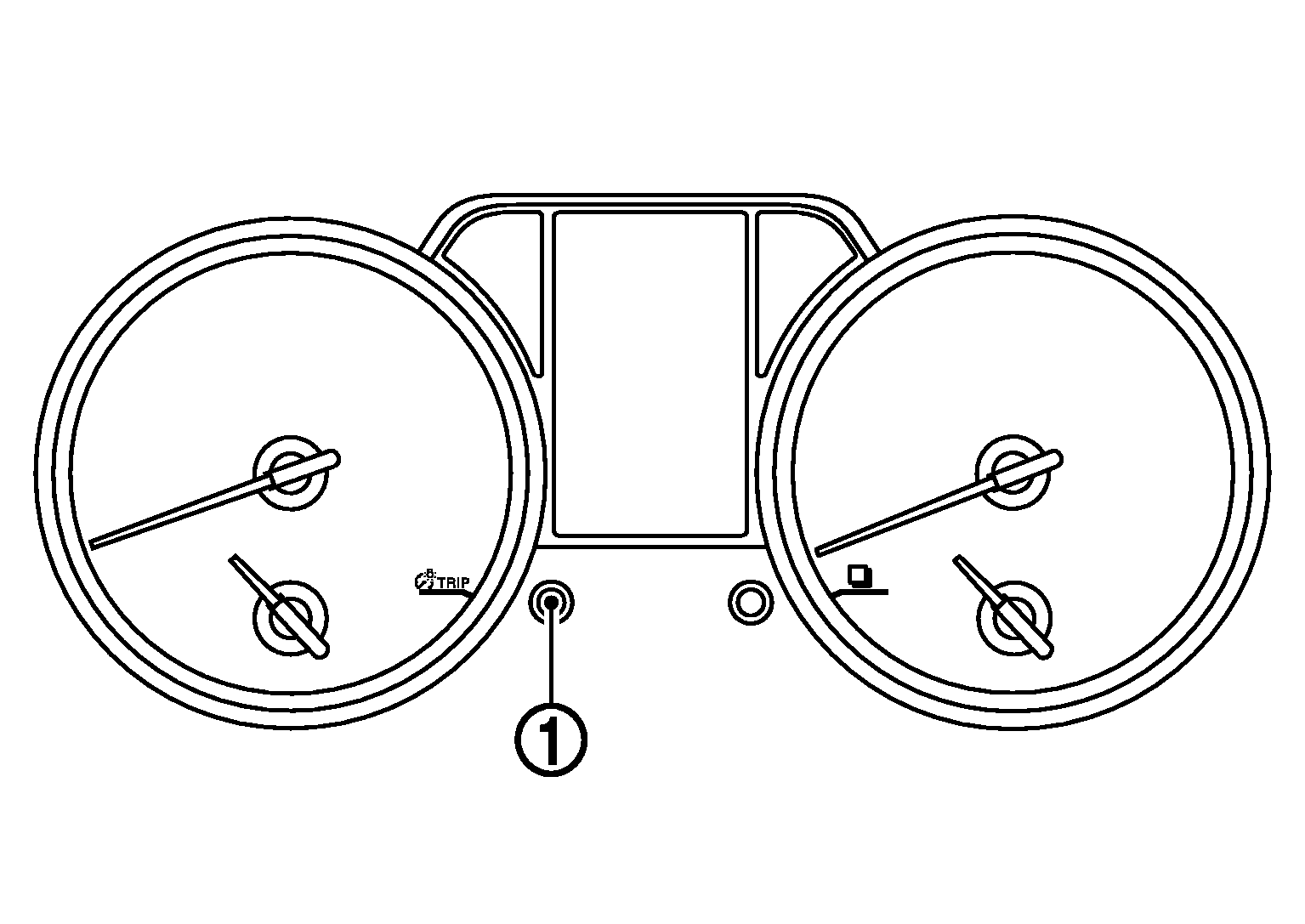

Fig 1: Locating Combination Meter Trip Reset Switch

Courtesy of NISSAN NORTH AMERICA, INC.

Test order	Test item	Operation/Indication (Indicated in the top portion of Information Display)	Notes
1	Part No XXXXX	Part number is indicated.	-
2	Gauge sweep	Each gauge pointer sweeps.	The pointers sweep for 10 seconds. If any one of the pointers does not sweep, replace combination meter.
3	(All pixels illuminated)	All the dots of the information display illuminate.	If any dot does not illuminates, replace combination meter.
4	Telltales	All the warning lamps and indicator lamps turns ON.	If any one of the indicator lamps of warning lamps does not turn ON, replace combination meter.
5	ROM XXXX	"r XXXX" or "FAIL" is indicated.	If "FAIL" is indicated, replace combination meter.
6	N ROM XXXX	-	Not used
7	EE XX, FAIL	"EE XX" or "FAIL" is indicated.	If "FAIL" is indicated, replace combination meter.
8	Dtcs XXXXXX	-	Not used
9	Date XXXX	-	Not used
10	SCEM0 XX	-	Not used
11	SCEM1 XX	-	Not used
12	EprJmp XX	-	Not used
13	Market XX	-	Not used
14	TF a XXXX	-	Not used
15	TF b XXXX	-	Not used
16	OAT rad xxx	-	Not used
17	OAT xxx °C	-	Not used
18	DC Speed XXXX	-	Not used
19	Mph XXXXX	A vehicle speed signal value is indicated. (MPH)	The "-----" indication means no signal reception. The "99999" indication means the reception of an abnormal signal.
20	Kmh XXXXX	A vehicle speed signal value is indicated. (km/h)	The "-----" indication means no signal reception. The "99999" indication means the reception of an abnormal signal.
21	DC Tasho XXXX	-	Not used
22	Tacho XXXX	An engine speed signal value is indicated. (RPM)	The "-----" indication means no signal reception.
23	DC Fuel XXXX	-	Not used
24	Fuel rad XXX	A fuel gauge signal value is indicated.	The "000" - "009" indications mean that the fuel gauge signal circuit is open. The "010" - "254" indication mean that the fuel gauge signal circuit is normal. The "255" indication means that the fuel gauge signal circuit is shorted. "-" is indicated for 5 seconds.
25	Fuel % xxx	-	Not used
26	FPhyst xxx	-	Not used
27	DC Temp XXXX	-	Not used
28	Temp ect XXX	A water temperature signal value is indicated. (°C)	The "- C" indication means no signal reception. The "999 C" indication means the reception of an abnormal signal.
29	Oil level xxxx	-	Not used
30	Batt XXX	-	Not used
31	Port A-XX	-	Not used
32	Port B-XX	-	Not used
33	Port C-XX	-	Not used
34	Port E-XX	-	Not used
35	Port L-XX	-	Not used
36	Port K-XX	-	Not used
37	Port M-XX	-	Not used
38	Port P-XX	-	Not used
39	Port S-XX	-	Not used
40	Port T-XX	-	Not used
41	Port U-XX	-	Not used
42	Port V-XX	-	Not used
43	Port W-XX	-	Not used
44	A00 XXX	-	Not used
45	A01 XXX	-	Not used
46	A02 XXX	-	Not used
47	A03 XXX	-	Not used
48	A04 XXX	-	Not used
49	A05 XXX	-	Not used
50	A06 XXX	-	Not used
51	A07 XXX	-	Not used
52	A08 XXX	-	Not used
53	A09 XXX	-	Not used
54	A10 XXX	-	Not used
55	A11 XXX	-	Not used
56	A12 XXX	-	Not used
57	A13 XXX	-	Not used
58	A14 XXX	-	Not used
59	A15 XXX	-	Not used
60	WI code XX	-	Not used
NOTE: "X" in the table shows a variable.
