Removal and Installation: Removal

Remove console finisher.
1. Put selector lever in [N] or [D] position.
2. Remove console finisher (1) fixing pawls and metal clips with remover tool (A).

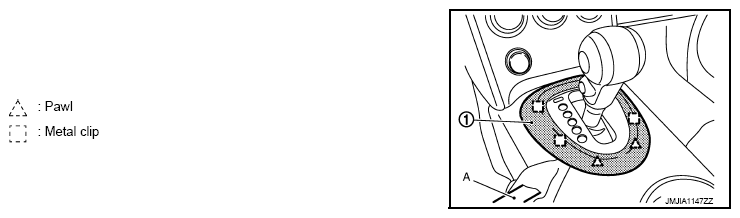

  Fig 1: Removing Console Finisher Using Tool
  Courtesy of NISSAN NORTH AMERICA, INC.
3. Pull console finisher upward to disengage from center console.
Remove cluster lid D.
1. Using remover tool (A), release cluster lid D (1) fixing pawls and clips, from lower to upper, from Instrument panel.

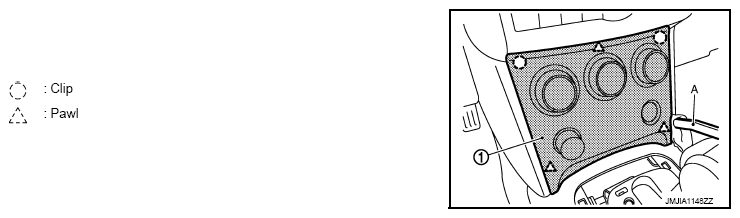

  Fig 2: Removing Cluster Lid D Using Tool
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Release harness connectors.
Remove instrument lower covers (LH and RH).

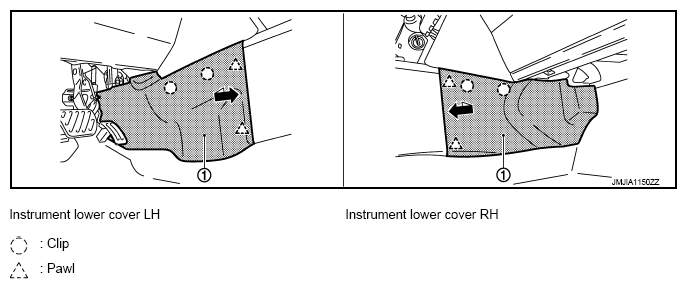

Fig 3: Removing Instrument Lower Covers (LH And RH)
Courtesy of NISSAN NORTH AMERICA, INC.
1. Pull from the rear of instrument lower cover (1) to release rear pawls, use remover tool to release upper clips.
2. Pull backward to release instrument lower cover from instrument panel.
  CAUTION: To avoid damaging parts, it is important to take care for removal of this part.
Remove center console assembly.
1. Remove screws (A) of center console front side.

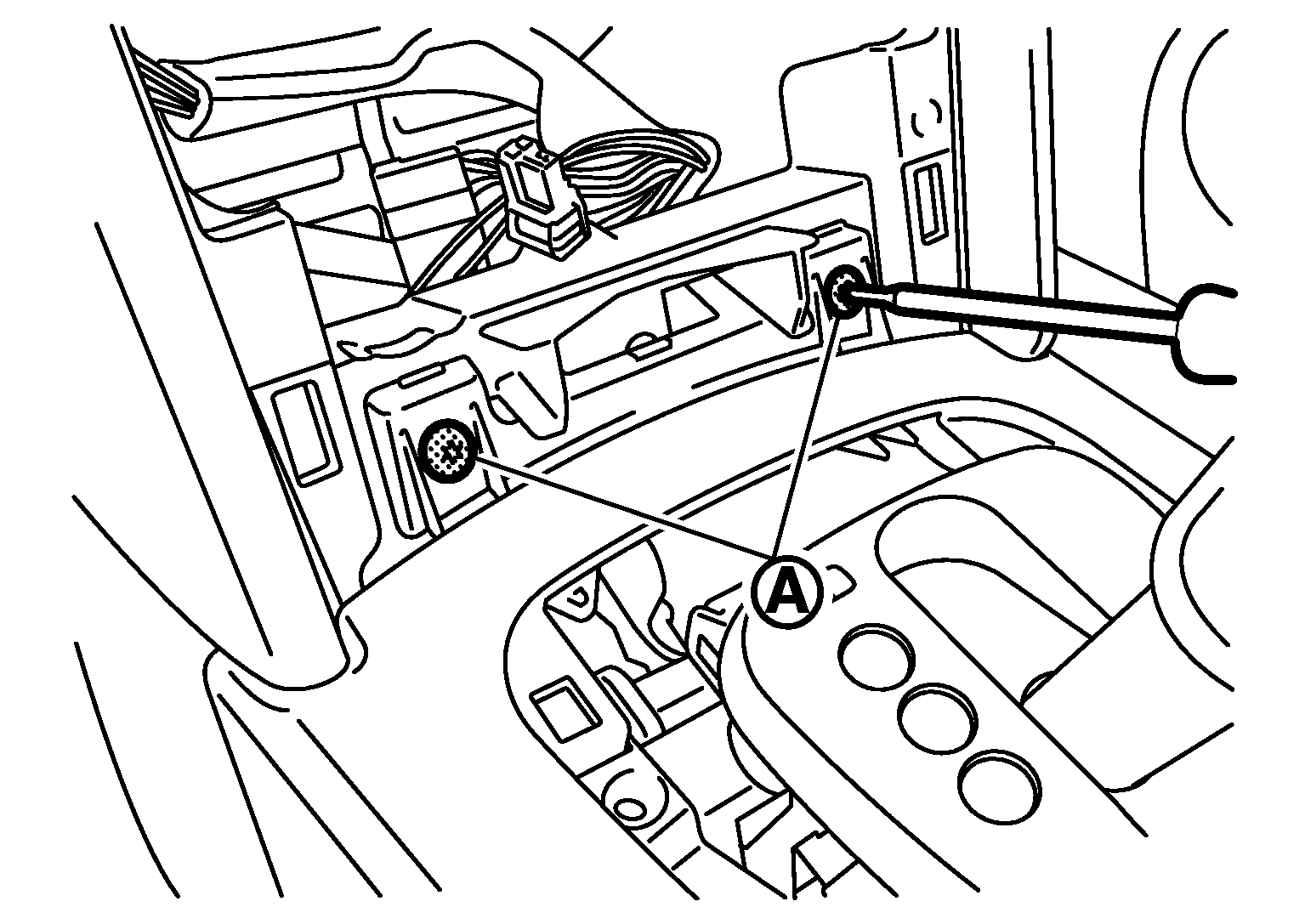

  Fig 4: Removing Center Console Front Side Screws Using Tool
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Remove center console (1) front fixing screws (A) and clips (B).

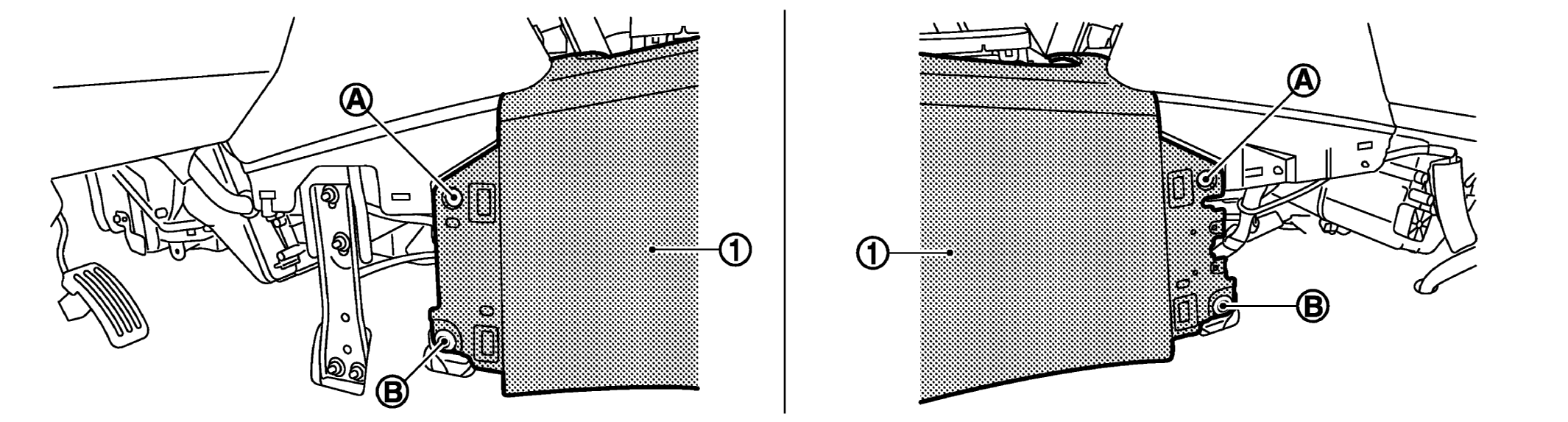

  Fig 5: Locating Center Console, Front Fixing Screws And Clips
  Courtesy of NISSAN NORTH AMERICA, INC.
3. Remove center console rear fixing screws (A), move forward front seats if necessary.

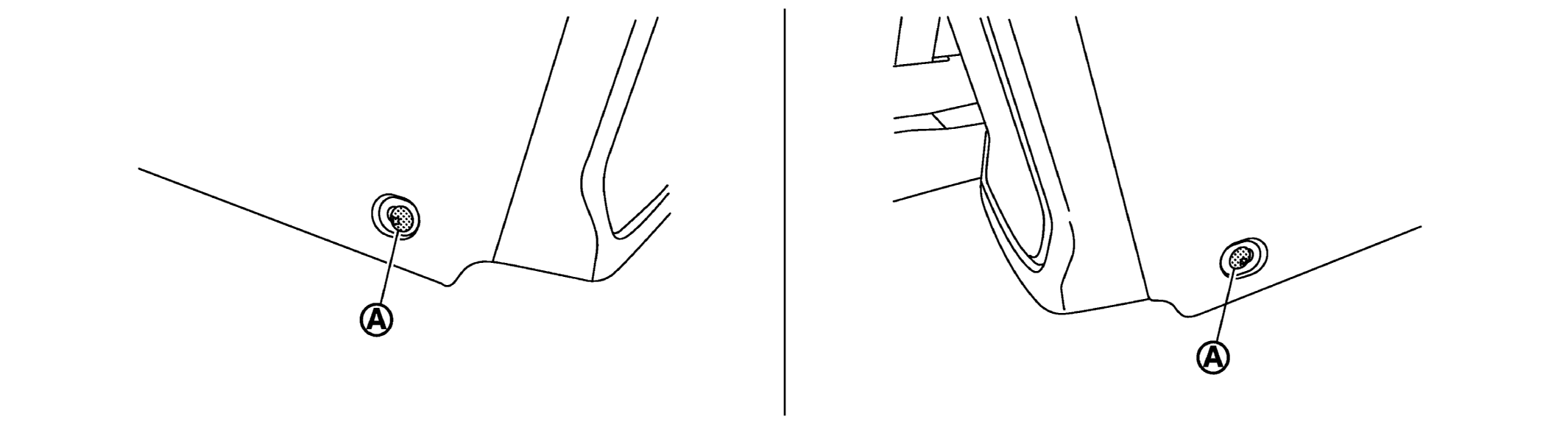

  Fig 6: Locating Center Console Rear Fixing Screws
  Courtesy of NISSAN NORTH AMERICA, INC.
4. Lift up the center console, and then disconnect harness connectors.
  CAUTION: Always move center console with caution to avoid damaging seats, or other part.
