Disassembly and Assembly: Disassembly

  1. Remove console rear finisher assembly.
    1. Console rear finisher assembly (1) fixing clips and pawls using a remover tool.
    2. Pull back console rear finisher assembly.
      Fig 1: Removing Console Rear Finisher Assembly
      G08994606Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove rear cup holder assembly.
    1. Remove rear cup holder assembly (1) fixing screws (A).

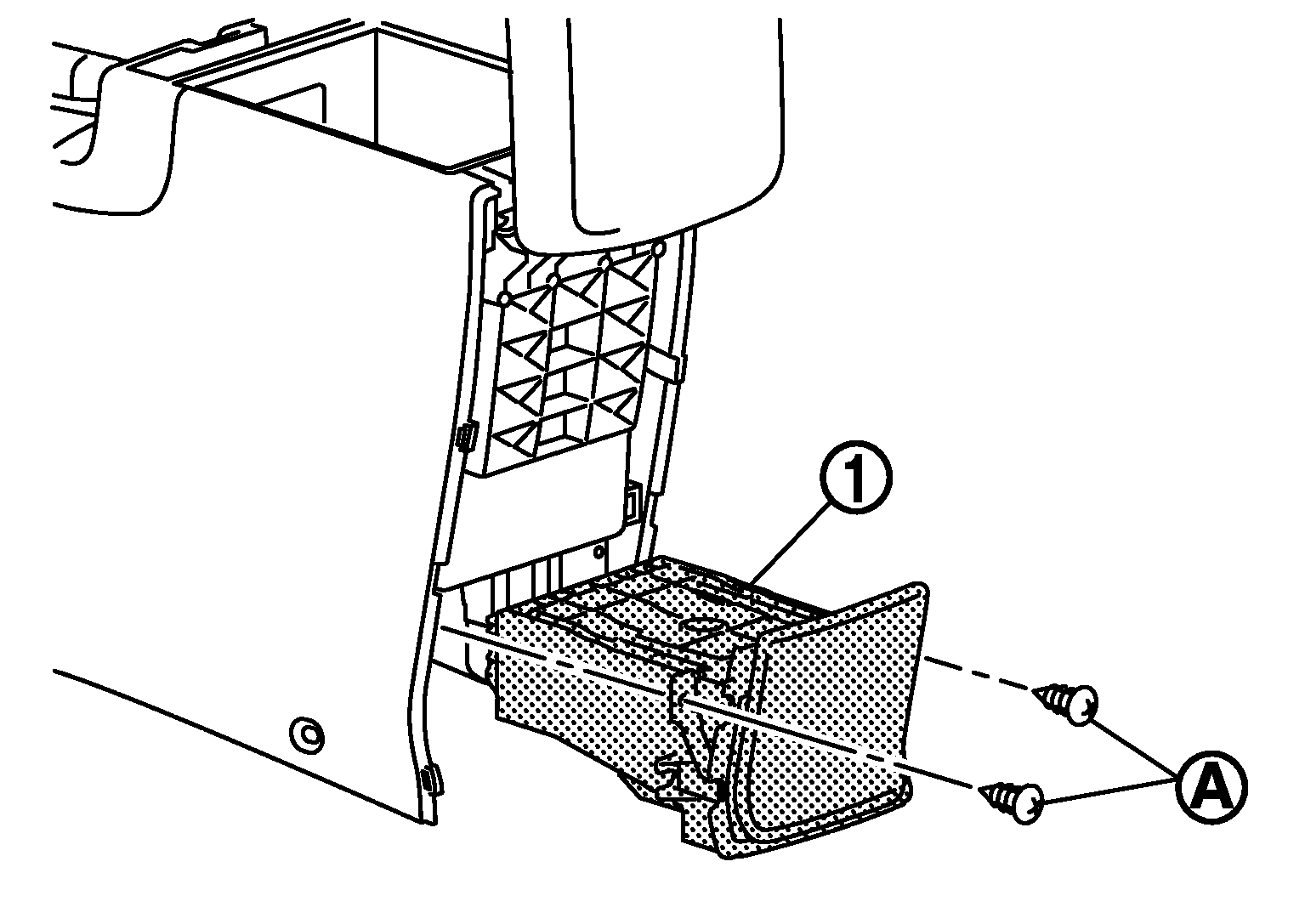

      Fig 2: Removing Rear Cup Holder Assembly
      G05371279Courtesy of NISSAN NORTH AMERICA, INC.
    2. Pull back rear cup holder assembly.
  3. Remove console lid assembly.
    1. Remove console mask (1) fixing pawls with remover tool, and then remove console mask.
      Fig 3: Removing Console Lid Assembly
      G08994608Courtesy of NISSAN NORTH AMERICA, INC.
    2. Remove console lid assembly fixing screws (A).
    3. Pull up console lid assembly.
  4. Remove console upper finisher.
    1. Remove console upper finisher (1) fixing screws (A).
      Fig 4: Removing Console Upper Finisher
      G08994609Courtesy of NISSAN NORTH AMERICA, INC.
    2. Remove console upper finisher fixing clips with remover tool.
    3. Pull up console upper finisher.
    4. Disconnect harness connectors. (if equipped)
  5. Remove inside key antenna. Refer to "CONSOLE: REMOVAL AND INSTALLATION ".
  6. Remove power socket. Refer to "CONSOLE POWER SOCKET: REMOVAL AND INSTALLATION ".
  7. Remove console harness assembly.
