Aiming Adjustment Screw

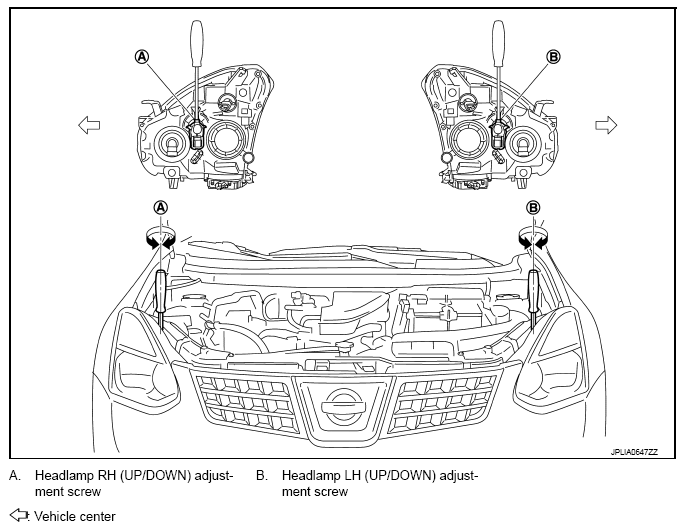

Fig 1: Adjusting Aiming Adjustment Screw
G08995312Courtesy of NISSAN NORTH AMERICA, INC.
Adjustment screw Screw driver rotation Facing direction
A Headlamp RH (UP/DOWN) Clockwise DOWN
Counterclockwise UP
B Headlamp LH (UP/DOWN) Clockwise DOWN
Counterclockwise UP
