Wiring Diagram - BCM

For connector terminal arrangements, harness layouts, and letters in a "diamond shape" symbol (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

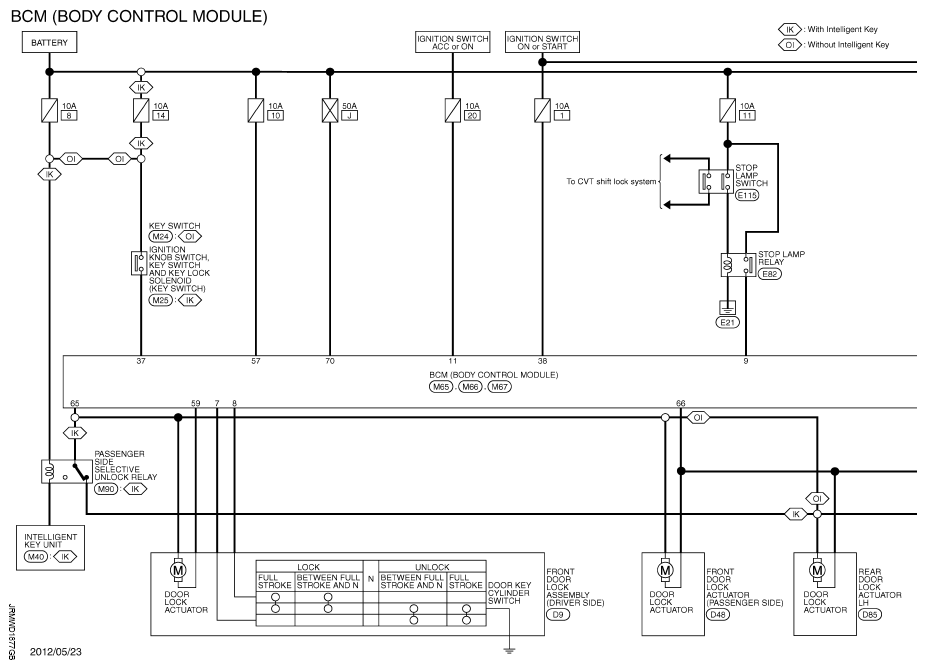

Fig 1: Body Control Module Wiring Diagram (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

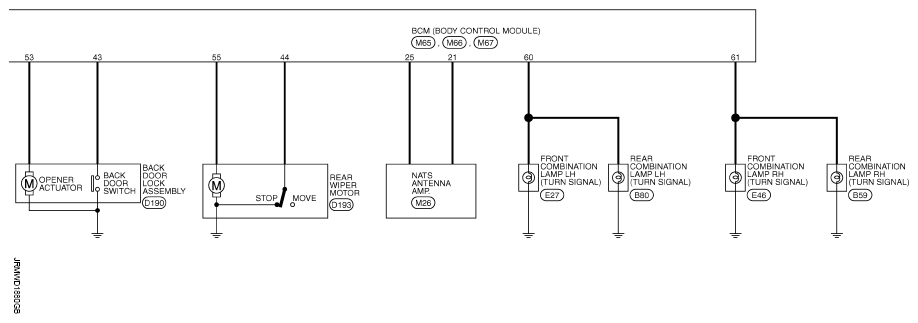

Fig 2: Body Control Module Wiring Diagram (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Body Control Module Wiring Diagram (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

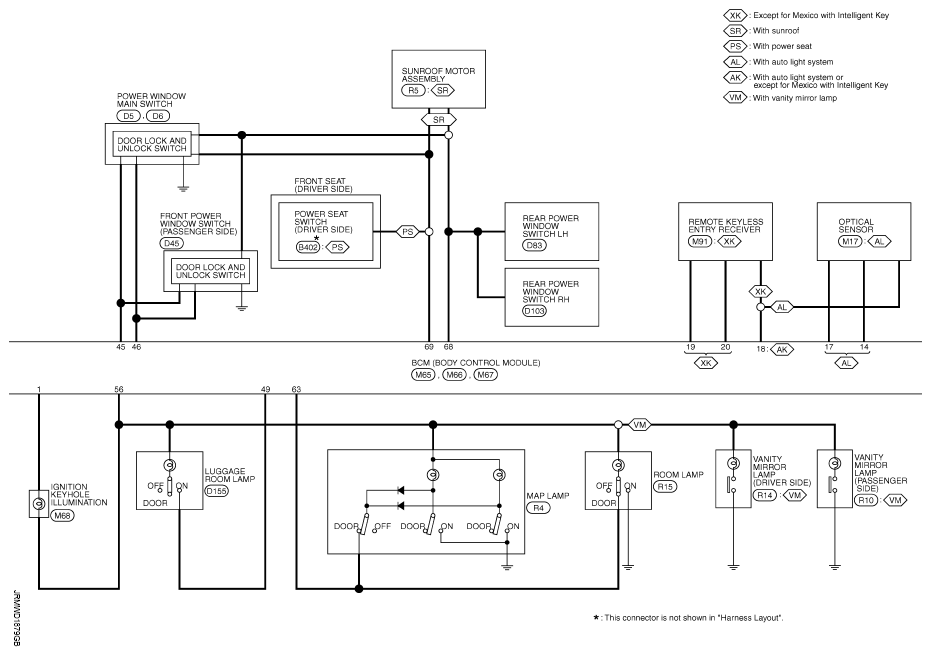

Fig 4: Body Control Module Wiring Diagram (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.
