Wiring Diagram - PARKING, LICENSE PLATE AND TAIL LAMPS

For connector terminal arrangements, harness layouts, and letters in a "diamond shape" symbol (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

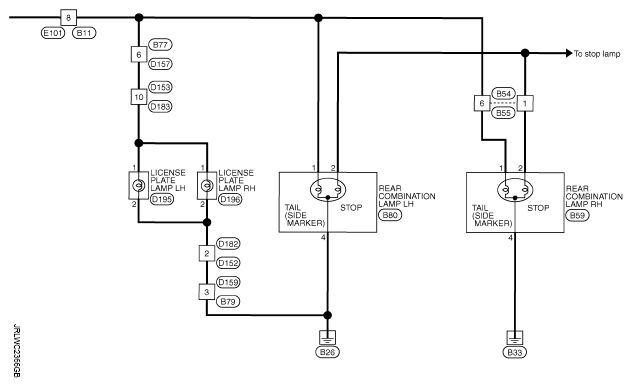

Fig 1: Parking, License Plate And Tail Lamps Wiring Diagram (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

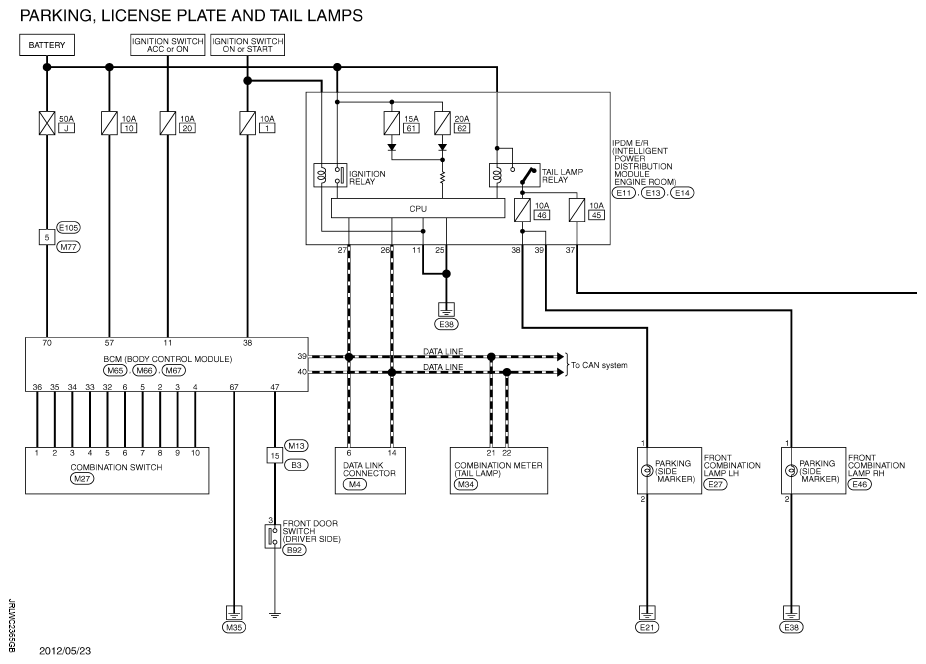

Fig 2: Parking, License Plate And Tail Lamps Wiring Diagram (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
