Sentra SE-R
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission (CVT)
>>
Service Information
>>
Trouble Diagnosis
>>
Circuit Diagram
Circuit Diagram

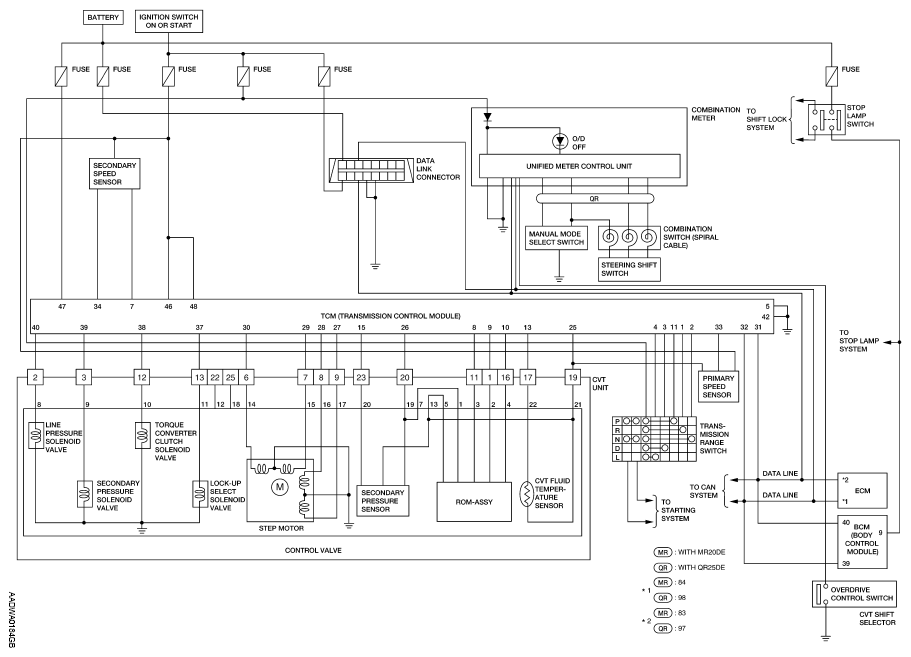

Fig 1: Identifying CVT Electrical Circuit Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
