Accessory Power Supply - Ignition Switch In Acc And/Or On

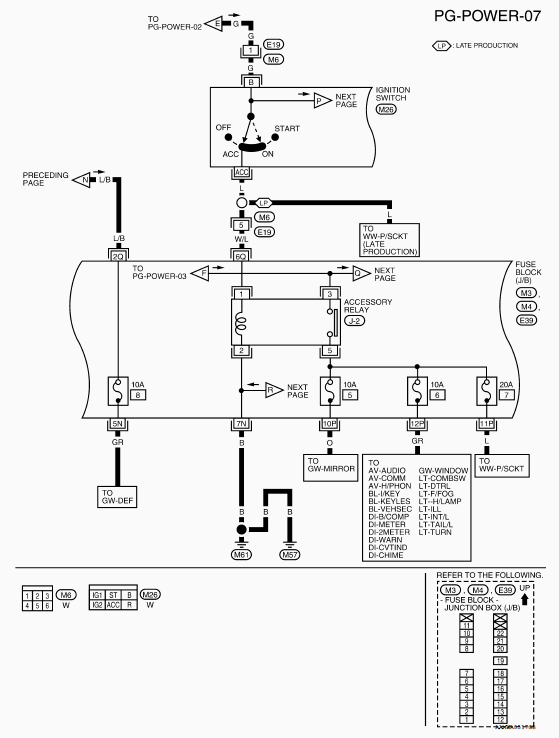

Fig 1: Wiring Diagram - PG-POWER-07
G00527361Courtesy of NISSAN NORTH AMERICA, INC.
