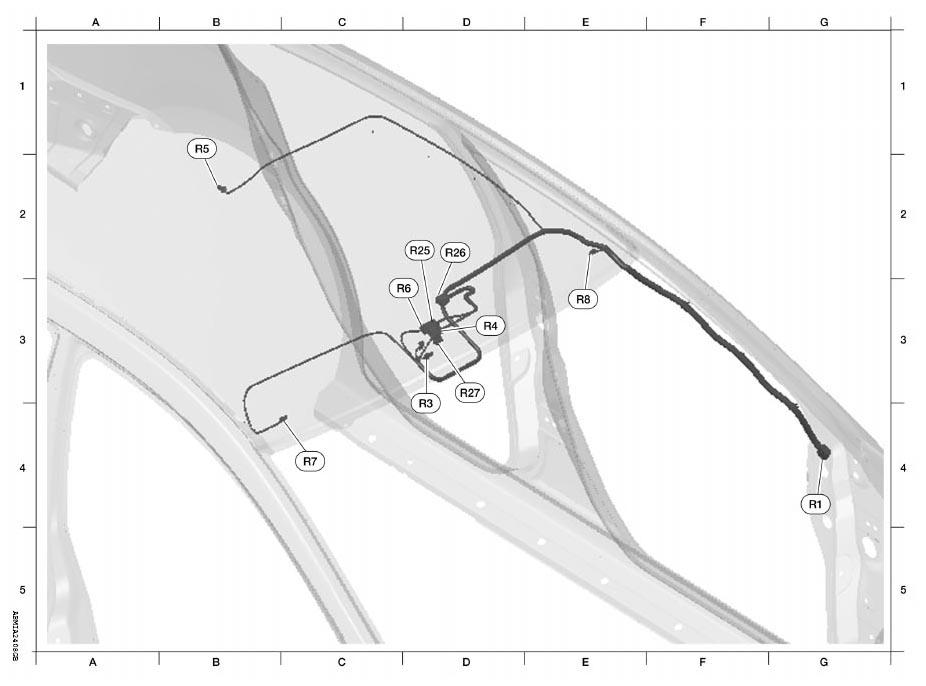

Room Lamp Harness
Courtesy of NISSAN NORTH AMERICA, INC.
| G4 |
R1 |
W/12 |
: To M41 |
| D3 |
R3 |
W/2 |
: Map lamp |
| D3 |
R4 |
W/4 |
: Microphone |
| B1 |
R5 |
W/2 |
: Interior room lamp |
| C3 |
R6 |
BR/4 |
: To R25 |
| C4 |
R7 |
W/2 |
: Vanity mirror lamp LH |
| E3 |
R8 |
W/2 |
: Vanity mirror lamp RH |
| Sunroof sub-harness |
| D3 |
R25 |
BR/4 |
: To R6 |
| C3 |
R26 |
GR/10 |
: Sunroof motor assembly |
| D3 |
R27 |
W/3 |
: Sunroof switch |
