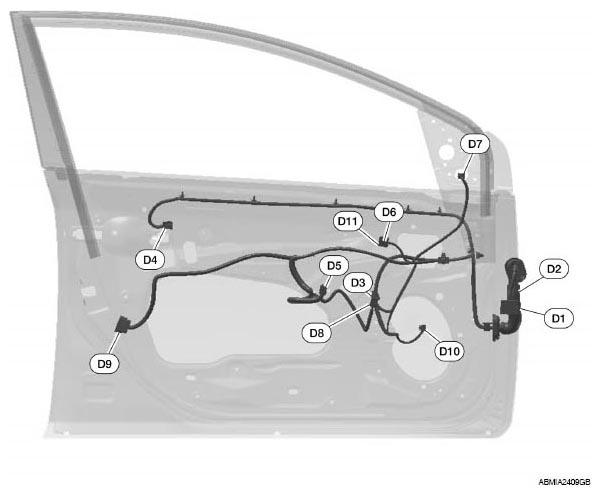

Front Door LH Harness
| D1 | W/16 | : To M12 |
| D2 | W/12 | : To M13 |
| D3 | W10 | : Door mirror switch |
| D4 | B/4 | : Front outside handle LH |
| D5 | W16 | : Main power window and door lock/unlock switch |
| D6 | GR/8 | : Door lock/unlock switch LH |
| D7 | W/8 | : Door mirror LH |
| D8 | B/6 | : Front power window motor LH |
| D9 | GR/6 | : Front door lock assembly LH |
| D10 | W/2 | : Front door speaker LH |
| D11 | W/3 | : Main power window and door lock/unlock switch |
