Wiring Diagram - TAIL/L -

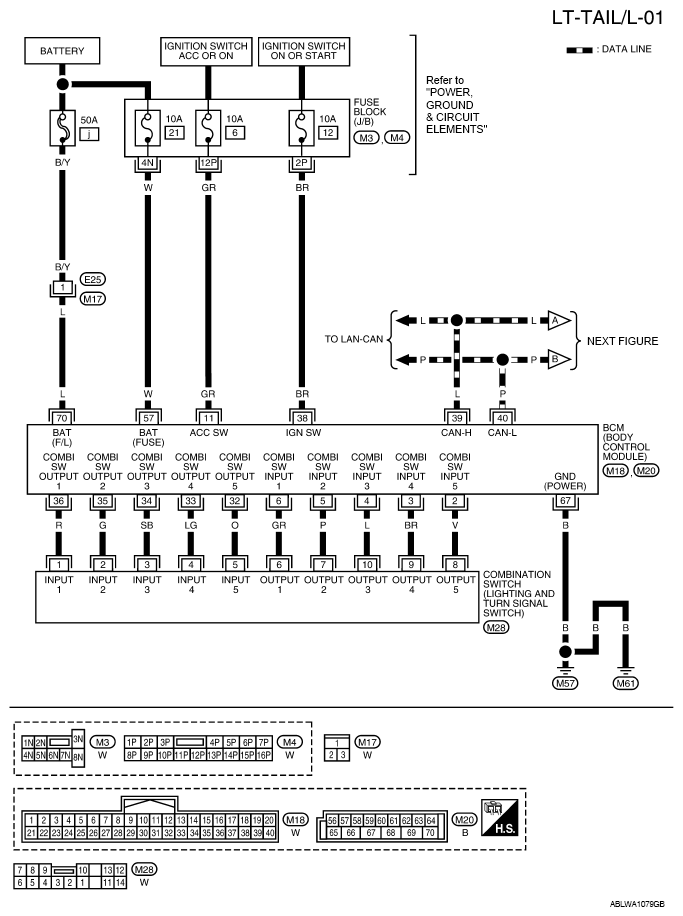

Fig 1: Identifying Tail Lamp Wiring Diagram With Connector End View (LT-Tail/L-01)
G08181893Courtesy of NISSAN NORTH AMERICA, INC.

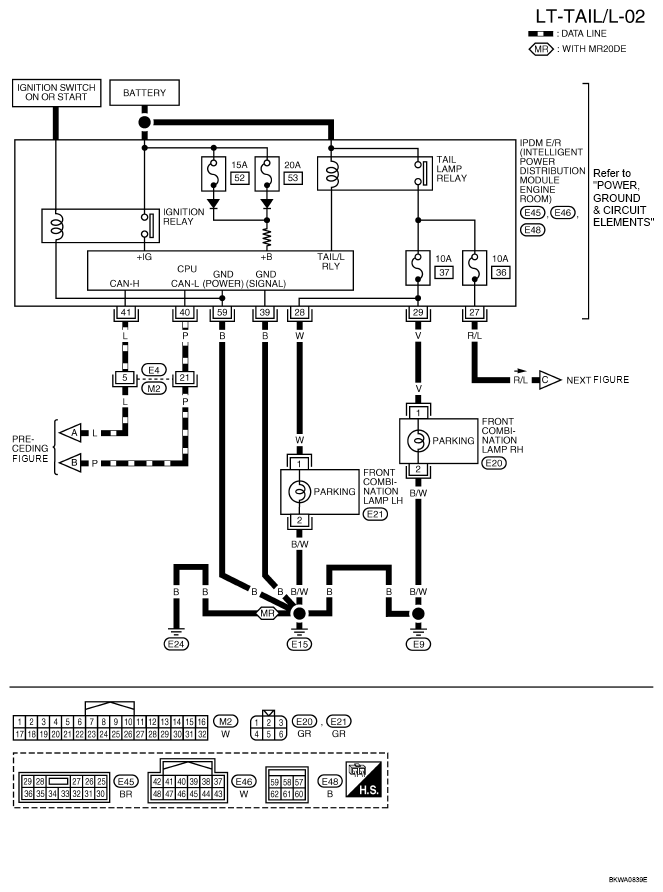

Fig 2: Identifying Tail Lamp Wiring Diagram With Connector End View (LT-Tail/L-02)
G04928361Courtesy of NISSAN NORTH AMERICA, INC.

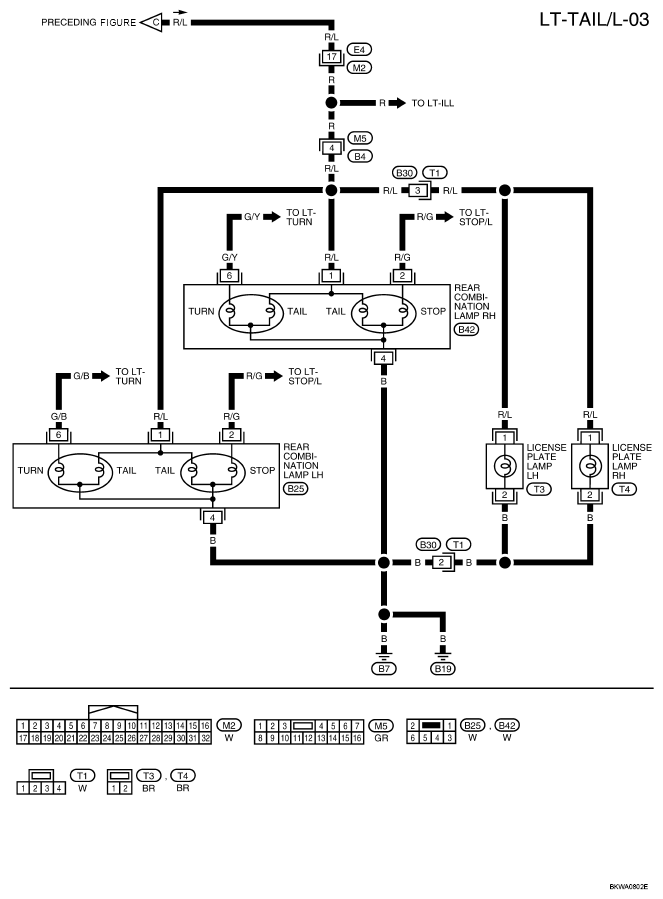

Fig 3: Identifying Tail Lamp Wiring Diagram With Connector End View (LT-Tail/L-03)
G04928362Courtesy of NISSAN NORTH AMERICA, INC.
