Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Unit Removal And Installation
>>
Instrument Panel Assembly
>>
Component Parts
Component Parts

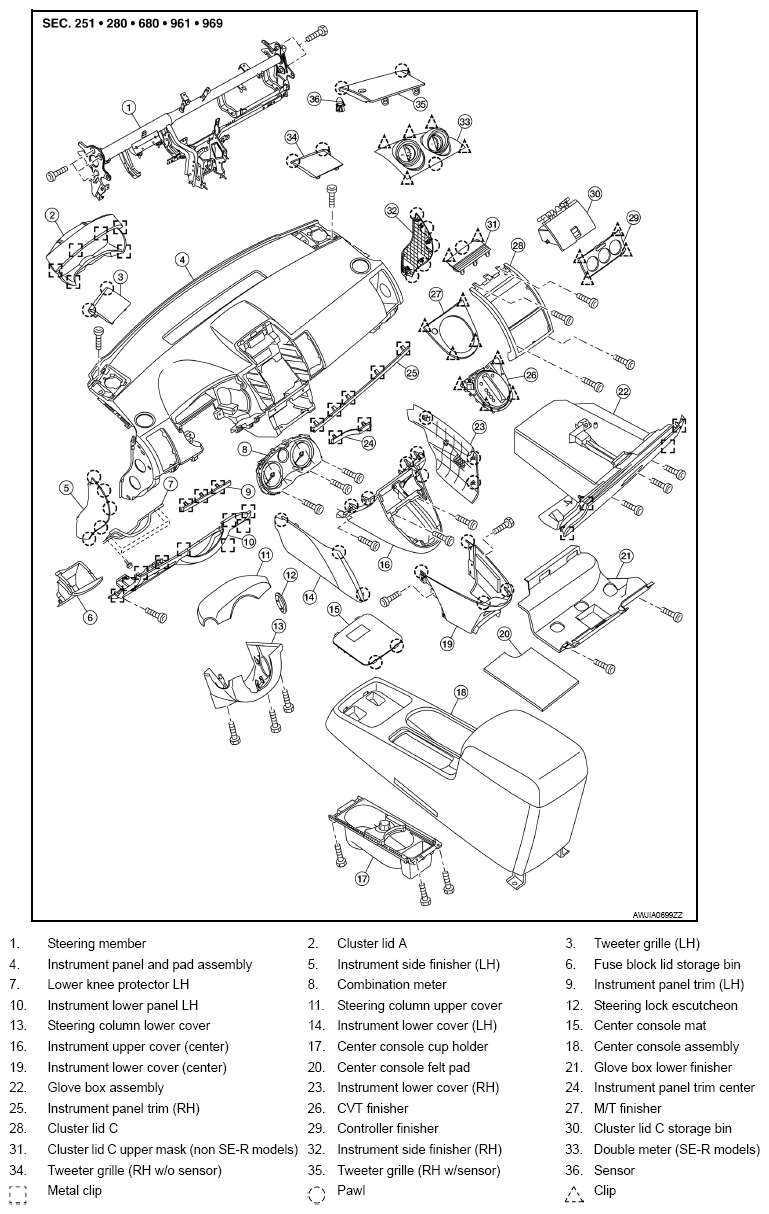

Fig 1: Exploded View Of Instrument Panel Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
