Power Relay Test: Notes
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required
- Relay Puller 07AAC-000A1 AO or 07AAC-000A2A1
- Relay Socket Extension (4 Pin) 07AGK-000A1A0
- Relay Socket Extension (5 Pin) 07AGK-000A2A0
Use this chart to identify the type of relay, then do the test listed for it.
| Relay | Test |
|---|---|
| A/C compressor clutch relay | Normally-open four-terminal type |
| A/C condenser fan relay | |
| Accessory power socket relay | |
| Cargo area accessory power socket relay | |
| Front blower motor relay | |
| Front seat heater relay | |
| Fog light relay | |
| Headlight low beam relay | |
| Headlight washer relay | |
| Interior light relay | |
| PGM-FI main relay 2 (Fuel pump) | |
| Power window relay | |
| Radiator fan relay | |
| Rear blower motor relay | |
| Rear window defogger relay | |
| Second row seat heater relay | |
| SH-AWD relay | |
| Starter cut relay 1, 2 | |
| TECH relay | |
| ACC cut relay | Five-terminal type |
| Brake light relay | |
| Fan control relay | |
| IG2 cut relay |
NOTE:
- The following relays are part of the relay control module: PGM-FI main relay 1, ignition coil relay, PGM-FI subrelay and ETCS control relay. To test these relays, do the relay control module test.

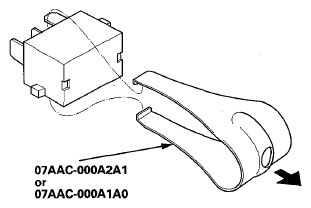

- Using the relay puller, carefully remove the relay from the under-dash fuse/relay box using the relay puller. Do not use pliers. Pliers will damage the relay.
