Battery Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Do the battery terminal disconnection procedure
Remove the two nuts (A) securing the battery hold down plate, then remove the battery setting plate (B) and the battery (C).

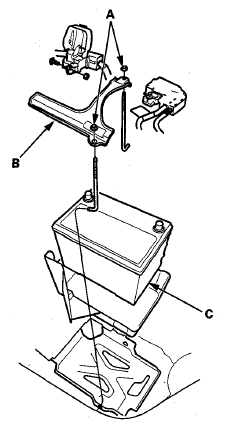

Fig 1: Locating Nuts, Battery Hold Down Plate, Battery Setting Plate And Battery

Courtesy of AMERICAN HONDA MOTOR CO., INC.
