Starter Solenoid Test

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery removal procedure (see RECONNECTION ).
  2. Remove the battery base (see step 11 under ENGINE REMOVAL ).
  3. Disconnect the positive starter cable (A), the motor wire (B), and the S terminal connector (C).

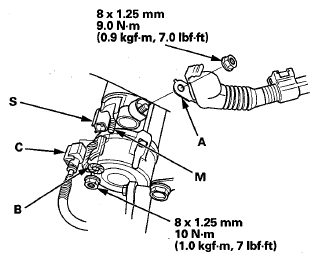

    Fig 1: Locating Positive Starter Cable (A), Motor Wire (B) And S Terminal Connector (C) With Torque Specifications
    G08051937Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Check the hold-in coil for continuity between the S terminal and the armature housing (ground). There should be continuity:
    • If there is continuity, go to step 5.
    • If there is no continuity, replace the solenoid.
  5. Check the pull-in coil for continuity between the S terminal and the M terminal. There should be continuity:
    • If there is continuity, the solenoid is OK.
    • If there is no continuity, replace the solenoid.
  6. Connect the wire and the connector in the reverse order of removal.
  7. Install the battery base (see step 52 under ENGINE INSTALLATION ).
  8. Do the battery installation procedure (see RECONNECTION ).
