Starter Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery removal procedure (see RECONNECTION ).
  2. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  3. Remove the battery base (see step 11 under ENGINE REMOVAL ).
  4. Remove the harness clamp (A).

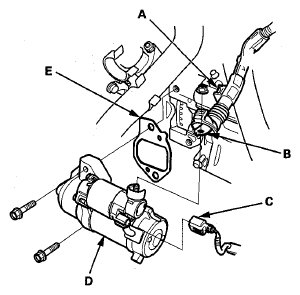

    Fig 1: Identifying Starter Removal
    G08051942Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect the positive starter cable (6) and the S terminal connector (C).
  6. Remove the two bolts holding the starter, then remove the starter (D) and the gasket (E).
